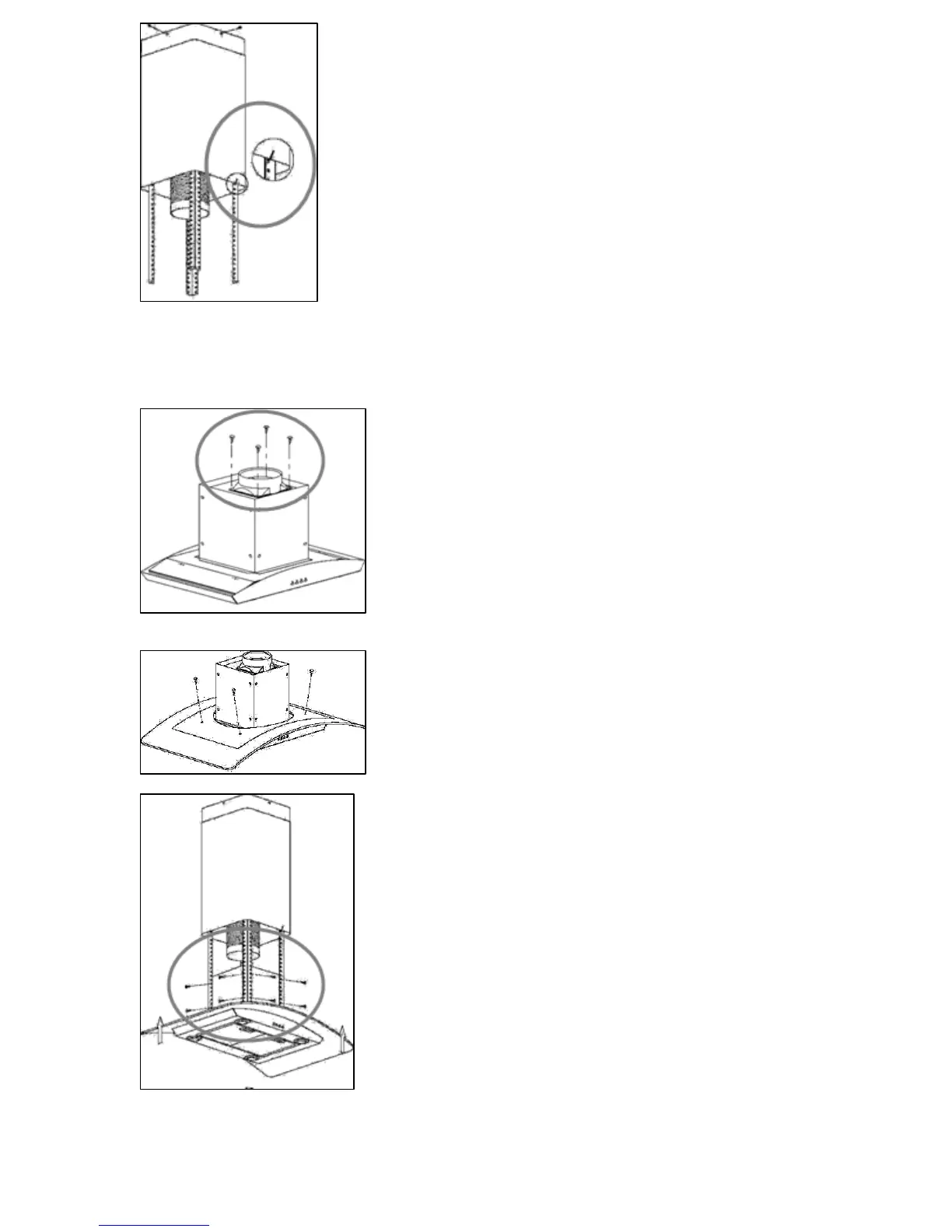

4) If your range hood is going to be used in
extraction mode, then you should connect the
ducting hose to the ceiling adaptor at this point.
o Fix the upper chimney section to the
hanging plate, using the 4 x self tapping
screws.
o Slide the lower chimney section onto the
angle bars and raise it until it sits just below
the upper chimney section.
o Use the hanging hook to temporarily keep the lower chimney
section in this position, to make sure that it does not drop down
whilst fixing the main body of the hood to the angle bars.
5) If you are going to be using the hood in
extraction mode, you should fit the spigot for
the duct hose onto the main body of the
range hood, using the 4 x M4 bolts,
6) If the glass canopy has not been pre-
assembled by the factory, then it should be
fixed to the top of the main body of the
range hood at this stage.
7) Lift the main body of the range hood onto
the angle bar and then fix it into position using
the 16 x M4 bolts.
o IMPORTANT: This stage of the
installation process MUST be
completed by two people.
o IMPORTANT: The 16 x M4 bolts
MUST be securely tightened.
32
