Baumer CleverLevel LBFS Series - Configuration; Operation

Operating Instructions
Level measurement
CleverLevel
®
LBFS
Point level detection

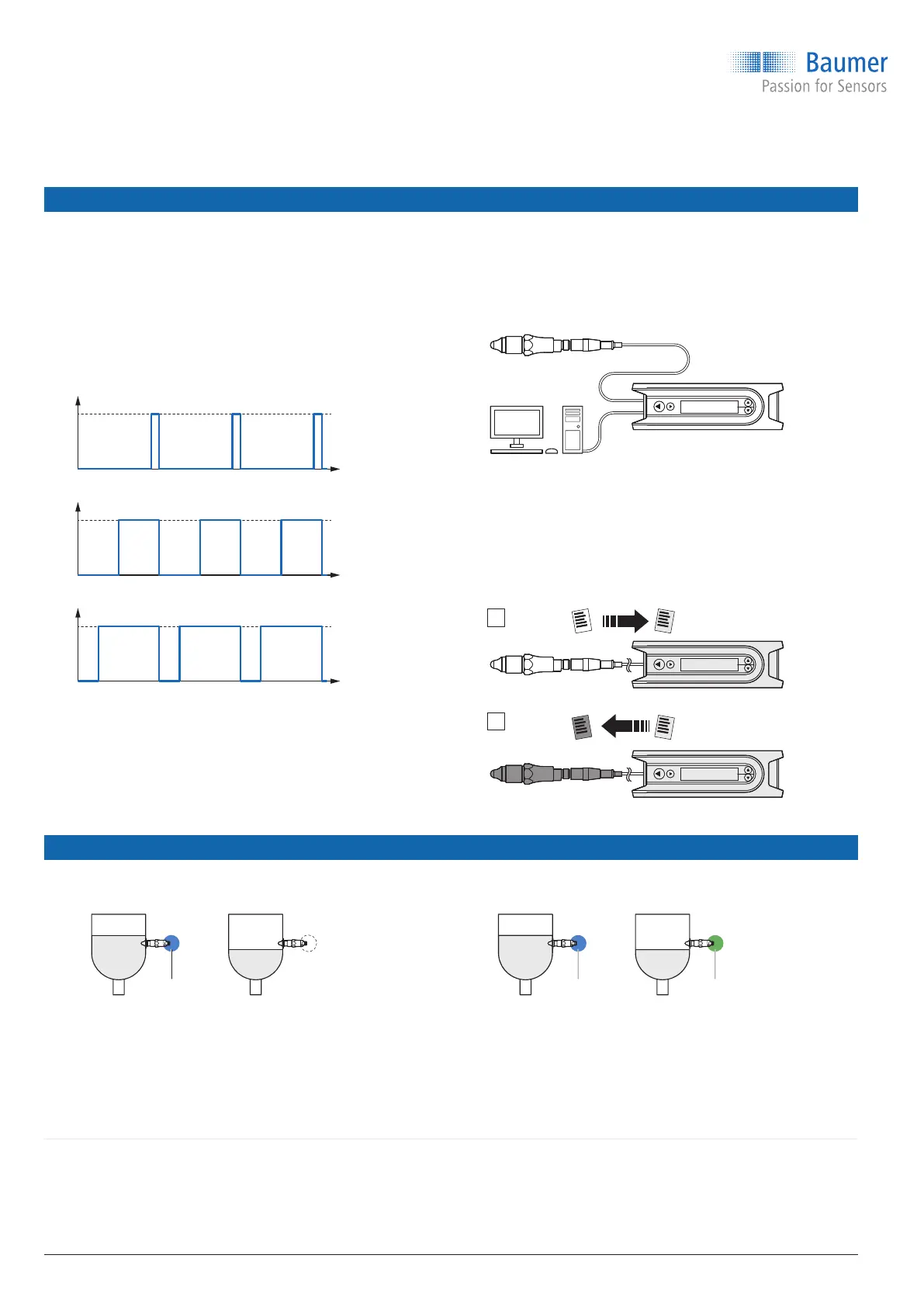

9. Conguration
The sensor can be congured with the
FlexProgrammer. This allows switching points
and damping values to be selected as required. In
addition pulse width modulation can be specied
for the signal.
Examples for pulse width modulation
U 10%
t
U 50%
t
U 75%
t
Conguring with FlexProgrammer and PC
f
Connect FlexProgrammer to sensor.
f
Connect FlexProgrammer to PC and set
parameters (see FlexProgrammer instructions).
Copying conguration with FlexProgrammer
f
Copy the conguration of one sensor to
another sensor using FlexProgrammer (see
FlexProgrammer instructions)
1
2
10. Operation
Standard operation with factory settings LED indication for “Power-On”
BU

BU = blue: Switched output, active

LED does not light up: Switched output, inactive
BU GN

BU = blue: Switched output, active

GN = green: Switched output, inactive
A green LED can be activated indicating „Power-
On“ by using the FlexProgrammer.
Application-specic settings: see chapter “15. Factory settings and user settings” on page 16.
