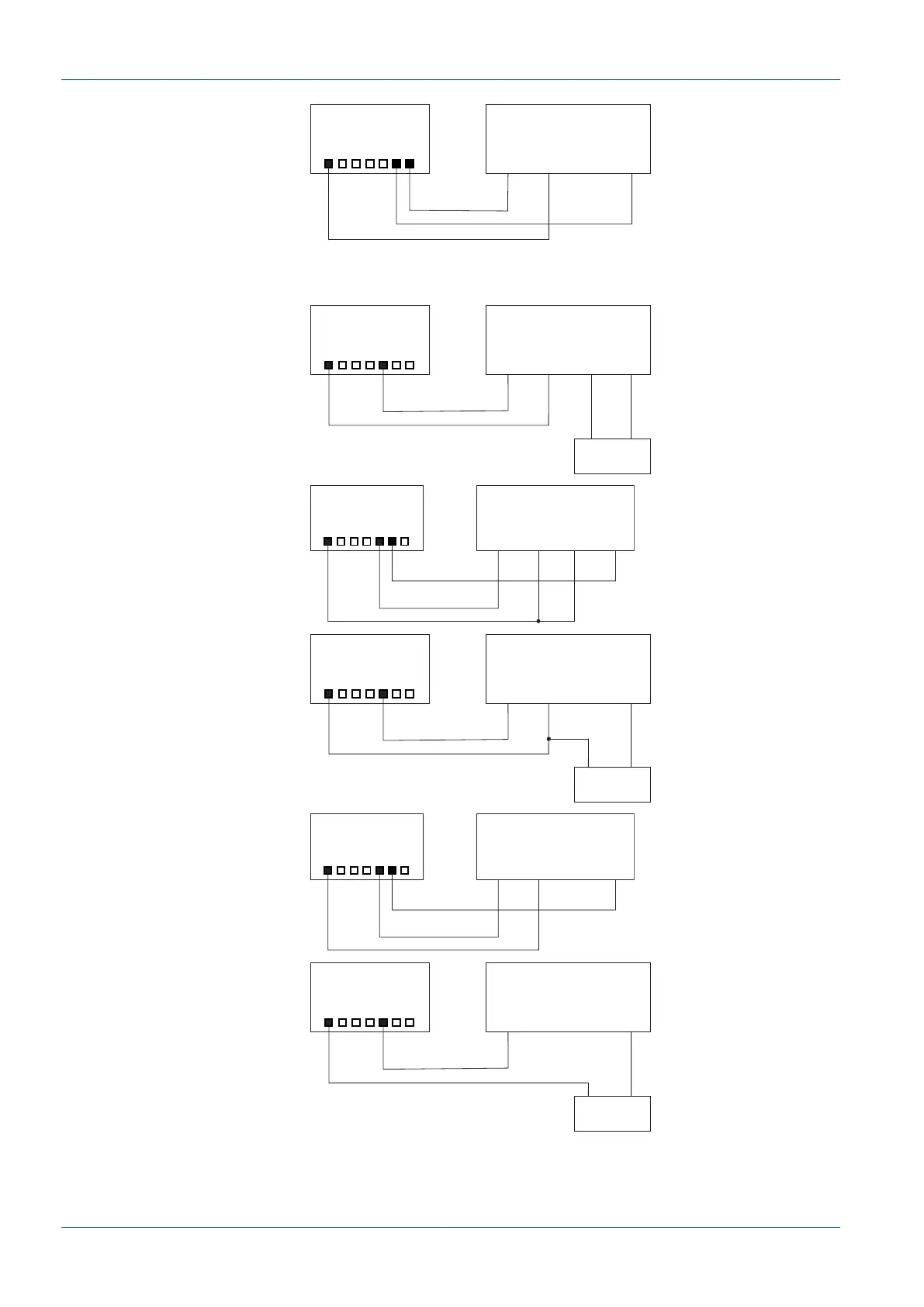

4 | Electrical connection of the process display Baumer
10 Operating Manual PA408 | V1
3 wire sensor
+OUT -OUT
+V
+EXC.
1 76
+EXC.
0-10V
0-200V
COM.
Process display
Sensor
Input current
4-wire sensor, ex-
ternal supply
+OUT -OUT
+mA
COM.
1 5
+-
-EXC. +EXC.
0-20mA
4-20mA
Process display
Sensor
Ext.
4 wire sensor
+OUT -OUT
+mA
COM.
1 5 6
+EXC.
0-20mA
4-20mA
-EXC.
+EXC.
Process display
Sensor
3-wire sensor, ex-
ternal supply
+OUT -OUT
+mA
COM.
1 5
+-
+EXC.
0-20mA
4-20mA
Process display
Sensor
Ext.
3 wire sensor
+OUT -OUT
+mA
COM.
1 5 6
+EXC.
0-20mA
4-20mA
+EXC.
Process display
Sensor
2-wire sensor, ex-
ternal supply
+OUT
+mA
COM.
1 5
+-
+EXC.
4-20mA
Process display
Sensor
Ext.
