Display and operating elements
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
90
of 328
4.4
4.4 Display and operating elements
NOTE!
Description of BM5030 with safety function BM5030-XX2X-...
refer to ZC.4
LED display BM5030 with safety function– as from page 306.
4.4.1 LED display BM5XXX-XX0X-... without safety function
LED
H1
Mains rectifier unit ready-to-operate
green:
Power supply and DC link voltage available,
internally OK
red:
Power supply failure - automatically restart
when power supply returns.
blinking red: Pow
er supply failure longer than 10 s - restart
after Power supply return has to be acknowl-
edged (X1:4). 
Refer to ZEr
ror acknowledgment of BM50XX–
on page 238.
LED
H2

red:
Phase failure
LED
H3

red:
Over temperature
LED
H4

red:
DC link error:
U
DC link
overvoltage or 
U
DC link
overcurrent or
Inhibit input active

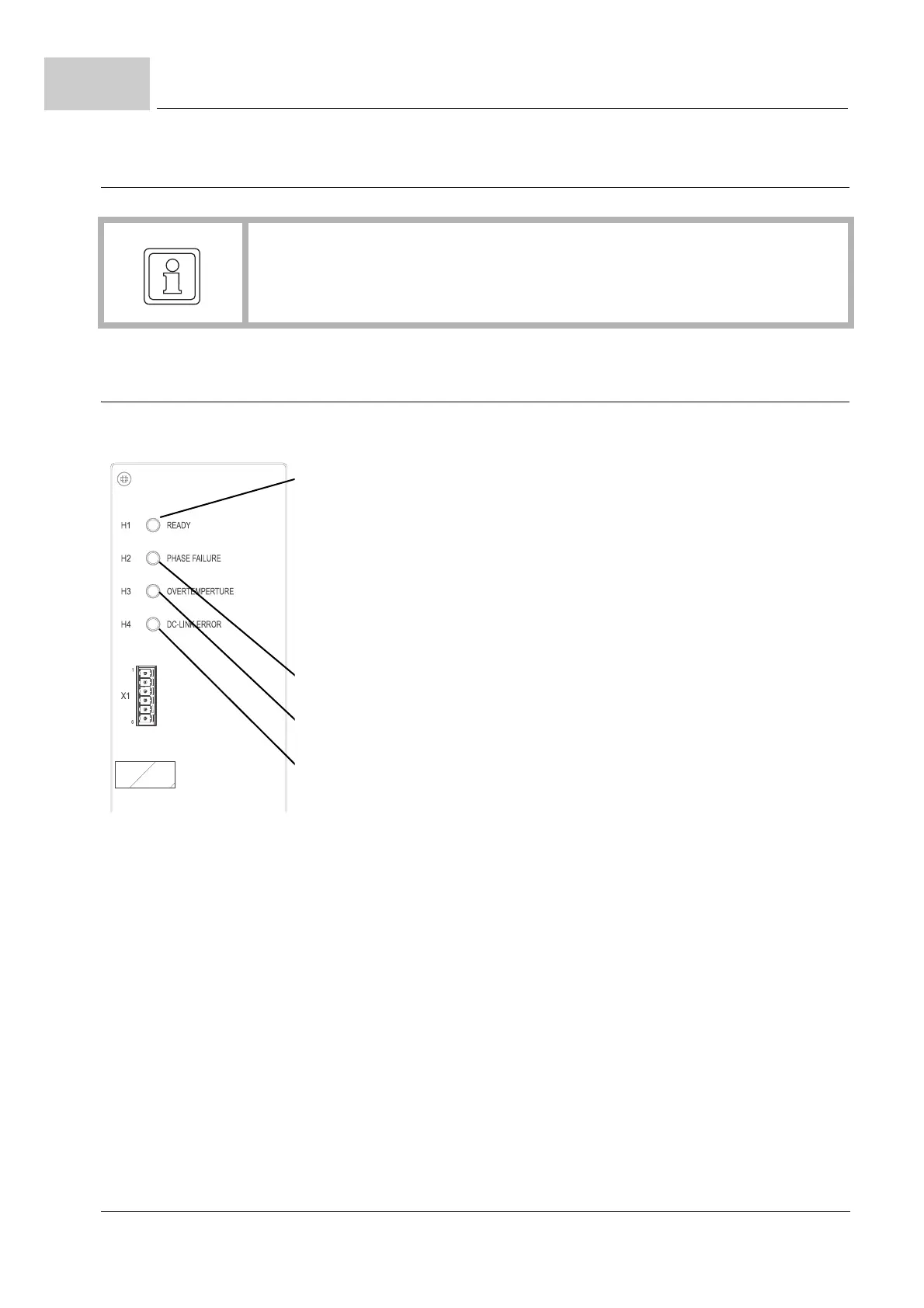

Figure 36: Display/operating elements BM50XX without safety function
