Baxtran RTN User Manual

42
User’s guide
ES FR ENG Price-compung scale RTN
User’s guide
43
RTN Price-compung scale ENG FR ES
CHARgINg BAttERy
To charge the battery insert the adaptor pin to jack, jack is locating below the scale. Adaptor simply plug >
into the mains power. The scale no needs to be turned on.
The battery should be charged for 12 hours for full capacity. >
Left side of the display there is an LED to indicate the status of battery charging. When the scale is plug- >
ged into the mains power the internal battery will be recharged. If the LED is green, the battery has a full
charge. If it is red, the battery is nearly discharged and if yellow, the battery is being charged.
Do not use any other type of power adaptor than the one supplied with the scale. >
Verify that the AC power socket outlet is properly protected. >
Note: Please charge the battery before using the scale for the rst time.
INStALLAtION
Place the scale on a table. >
Carefully place the pan to the four holes on the top cover >
Adjust the water mark bubble level. >
Connect the adaptor pin to the adaptor jack. Adaptor jack is locating below the right side of the scale. >
Adaptor connects into your AC power socket. Pluggable equipment must be installed near an easily acces- >
sible socket outlet with a protective ground/ earth contact.
Turn on the power switch. On / Off switch is locating below the right side of the scale. Press switch forward >
to turn on the scale. If you want to turn off, press again the switch backward.
Display will be show the scale capacity and will be starting self checking. >
After self checking, display will be come to normal weighing mode. >
Then you can start your operation >
Note: Initial Start Up
Warm-up time of 15 minutes stabilizes the measured values after switching on.
5. SCALE, KEyPAd ANd dISPLAy dESCRIPtION

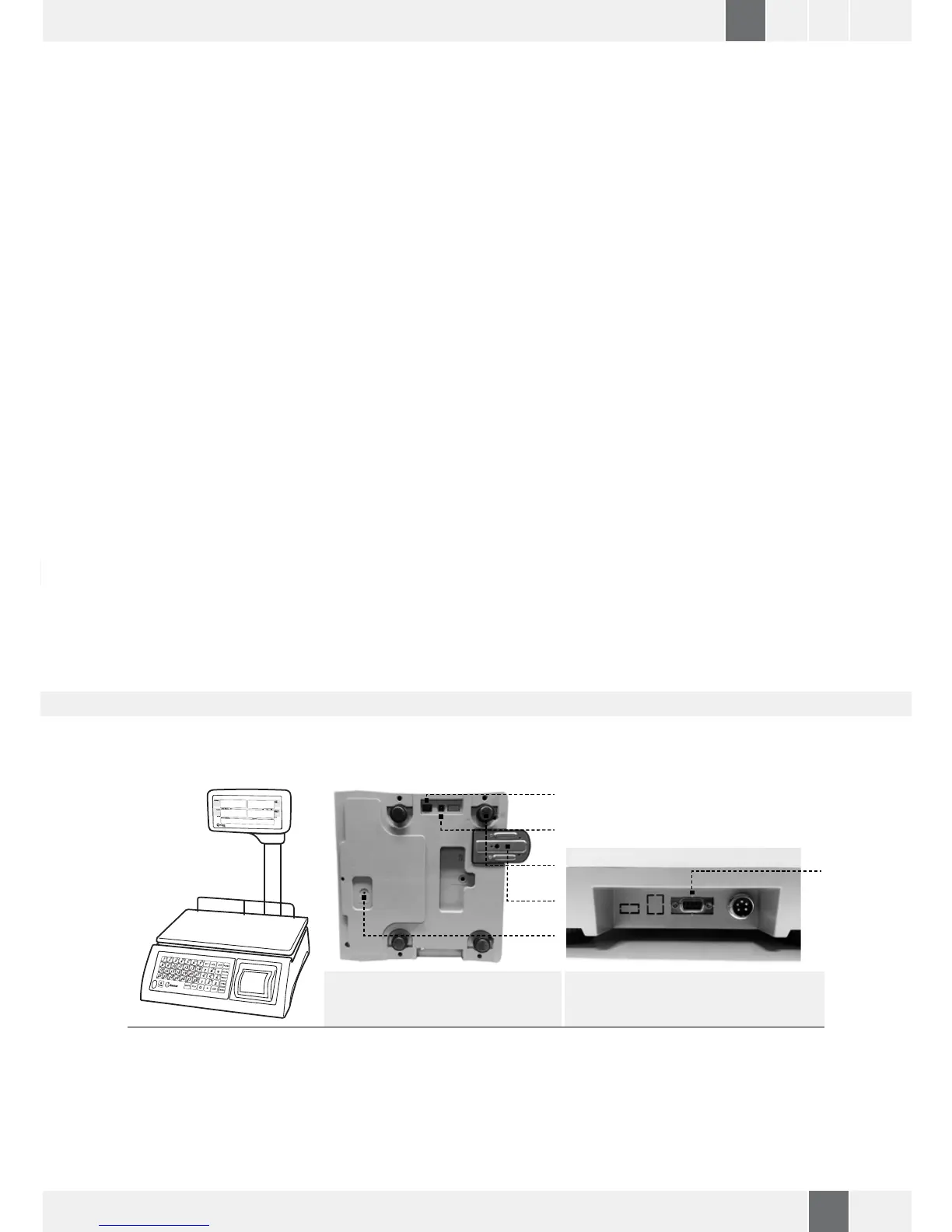

SCALE dESCRIPtION
1
2
3
4
5
6
1. ON/OFF switch
2. Adaptor Jack
3. Adjusting feet.
4. Display bracket
5. Function/CAL Switch
6. RS232 output
3. SPECIfICAtIONS
(dimensions in mm)
MODEL RTN-15 RTN-30
370
240
150
320
125
360
240
Maximum Capacity (kg) 6/15 15/30
Readability (g) 2/5 5/10
Tare Range (kg) -15 -30
Minimum Weight (g) 40 100
Resolution 3000/6000/Dual range
Stabilization time 2 segons
Warm up time 10 min.
Units Of Measure kg/g
Interface Salida opcional RS232
Calibration Externa automática
Display
Pantalla LCD retroiluminada con
6 dígitos de 20 mm
Housing Plástico ABS
Pan Size (mm) 240x370
Overall Dimensions (mm) 370x360x125
Gross Weight (kg) 5,8
Power supply
100/240 V AC 50 Hz Adaptador:
12V/500mA
Operating Temperature
-10oC +40oC/14oF +140oF
4. INStALLAtION
UNPACKINg
Carefully take the balance out of its package, make it sure its not damaged and all accessories are included.
Remove the Indicator from the carton. >
Remove the protective covering. Store the packaging and to use if you need to transport the scale later. >
Inspect the scale and terminal for damage. >
Make sure all components are included. >
Accessories:
Balance >
Adaptor >
Pan >
Product manual >
LEvEL AdjUStINg
Place the scale on a table.
Check the water mark. If, bubble is not centre adjust the leveling feet until reach centre. Check the level
when you change the location.
NOT LEVEL LEVEL
