HOW TO REPLACE MONITOR

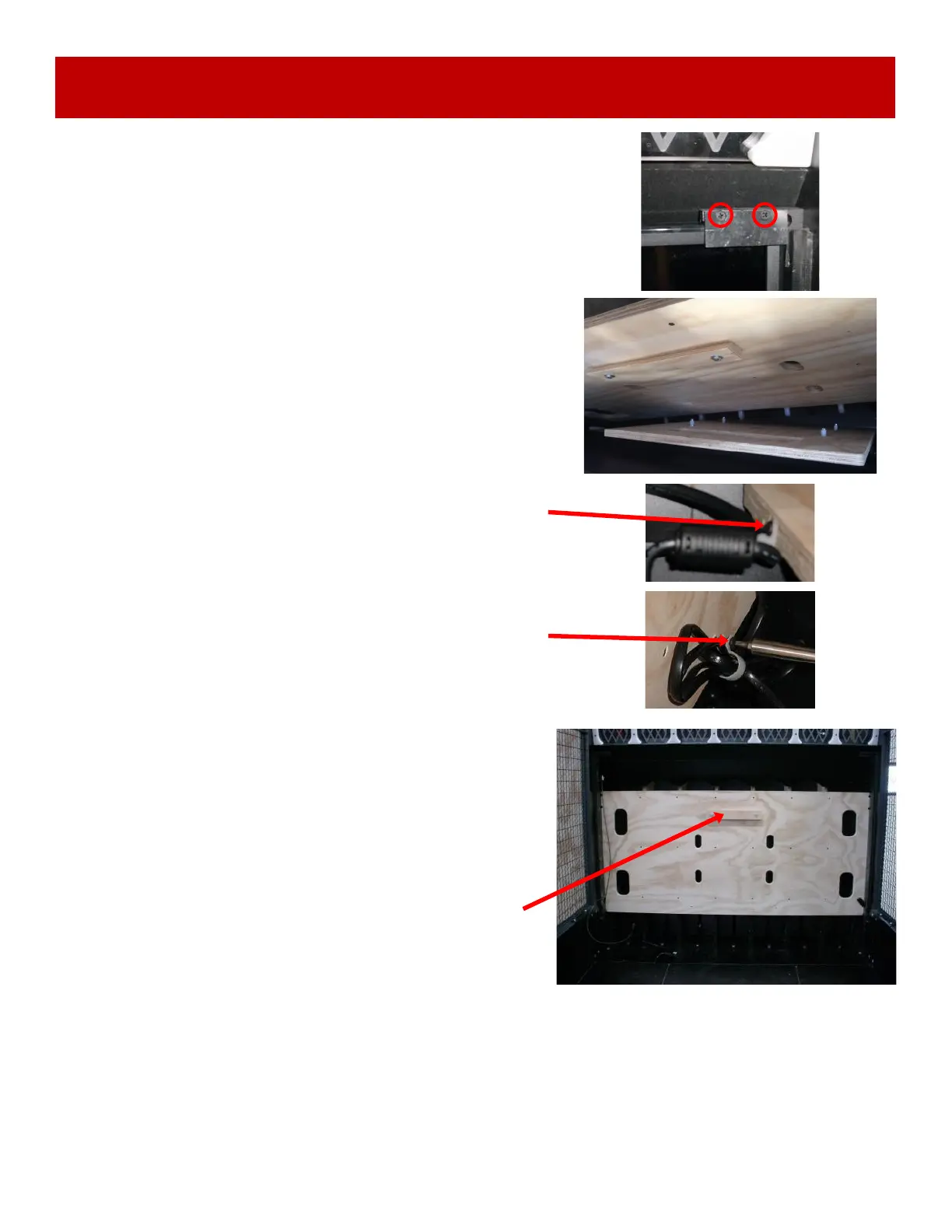

Remove the 2 Phillips screws on each upper left and
right corner black plastic piece.
Lift up on monitor to unhook the wood attaching
monitor to back frame. Set down to unhook cables.
Remove the cable clamp on HDMI cable on the left
side of monitor using # 2 square bit. Disconnect the
HDMI cord from the HDMI #1 socket.
Remove the cable clamp on the power cable on the
right side of monitor using # 2 square bit. Unplug the
power cord from the plug on right side of cabinet.
A wood piece will be attached to monitor as it is
removed from the cabinet.
Carefully remove the monitor. We recommend having
one person inside the cabinet and hand the monitor to
a person standing outside the cabinet.
The monitor can then be replaced by removing the
wood backing and installing it on the new monitor.
As it is re-installed in the cabinet, make sure the wood
hooks onto the wood ledge in the cabinet.
Make sure the cable clamps are re-installed to keep
the cables up and out of the way of the balls when be-
ing played.
