Bay-Tek CONNECT 4 HOOPS User Manual

56

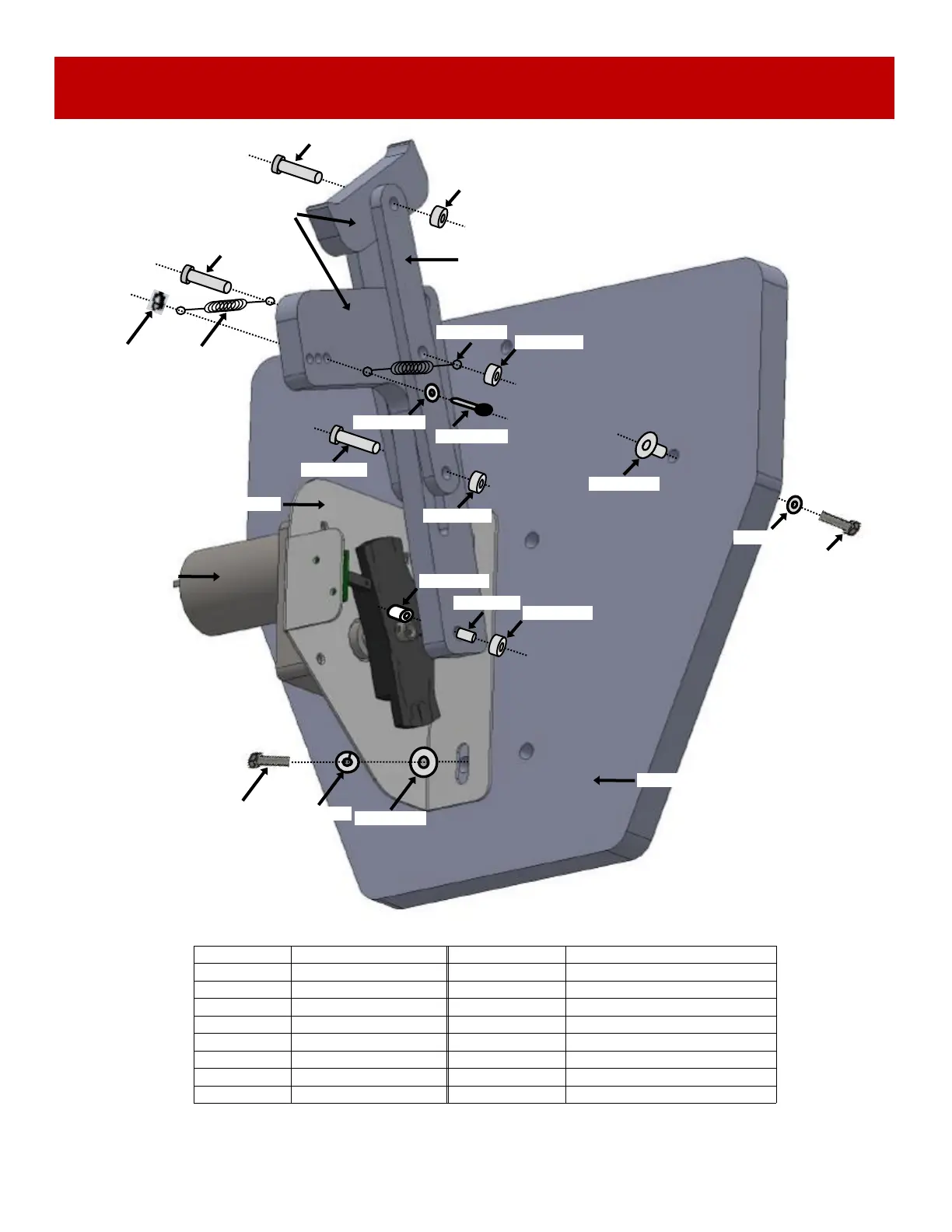

BALL GATE EXPLODED VIEW
A5WAFL060
A5BOHH050
A5NUTE020
WAC4H0001
A5MO5154
A5ME1727
A5PICV032
A5SLLO020
A5SLLO020
A5SP10000
A5SLLO020
A5PICV045
A5BOPH190
A5WAFL040
A5PICV032
A5SP10000
A5NUNY040
A5BOHH050
A5WASI020
A5WAFL060
A5SENY170
A5SLLO020
A5PICV045
WARR0002-C4HP
WARR0001-C4HP
Part # Description
A5BOHH050 25-20 x 1 1/4" Bolt
A5BOPH190 10-24 X 1 3/4" Bolt
A5ME1727 Motor Bracket
A5MO5154 Motor
A5NUNY040 8-32 Hex Nylon Nut
A5NUTE020 1/4 -20 T Nut
A5PICV032 1/4 X 1 5/8" Clevis Pin
A5PICV045 1/4 X 2 3/8" Clevis Pin
A5SENY170 1/4 " X 1/4" Nylon Spacer
A5SLLO020 1/4" Bore Shaft Collar, 3/32" Allen
A5SP10000 7/16" X 2 3/4" Spring
A5WAFL040 #10 Zinc Flat Washer
A5WAFL060 1/4" Flat Washer
A5WASI020 1/4" Split Washer
WAC4H0001 Wood for Ball Gate
WARR0001-C4HP Black HDPE 1/4" Thick Arms
WARR0002-C4HP Black HDPE 1/2" Thick Pivots
