Chapter 7: Deck Equipment
43
Canvas

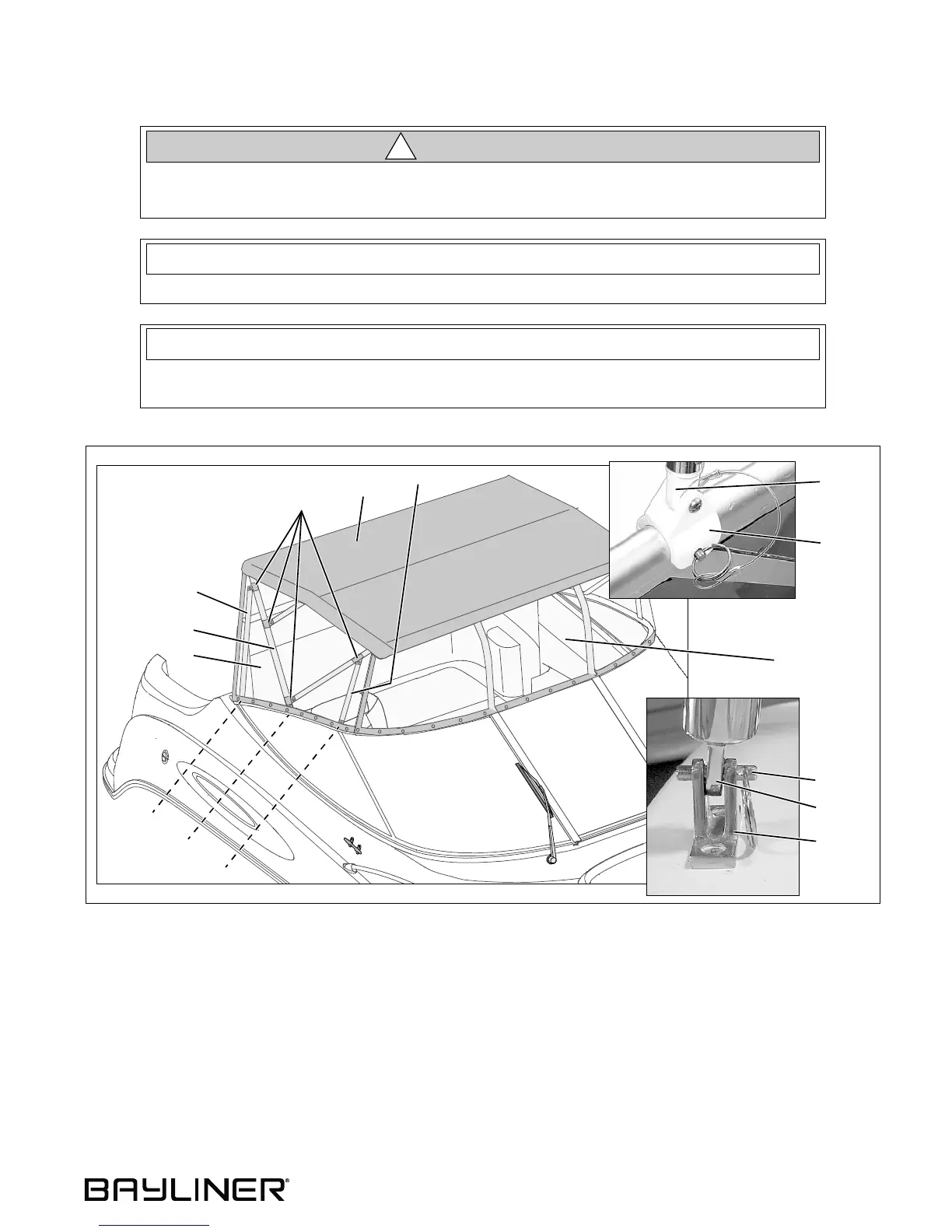

1. Slide the windshield hinges (A) of the main bow (B) onto the windshield frame and secure with the pins.
2. Slide the eye ends of the aft legs (C) into the deck hinges (D) and secure with the pins.
3. Unfold the canvas top (E) and slide the windshield hinges (F) of the forward legs (G) onto the windshield frame
and secure with the pins.
4. If equipped, zip the front curtain (H) and the side curtains (I) to the top (E) first and then snap the curtains to the
windshield frame.
• The jaw slides (J) should not need to be adjusted.
• If you decide to adjust the jaw slide positions, obtain the correct measurements from your selling dealer.
PRODUCT or PROPERTY DAMAGE HAZARD!
Take down and securely stow ALL canvas before transporting your boat by road.
CAUTION
!
Two people are needed for most of the tasks listed in this section.
NOTICE
Before cleaning and/or stowing your canvas or vinyl, read the sections later in this chapter,
Canvas Care and Vinyl Care.
NOTICE
J
E
G
C
B
D
A
F
I
DECK
PIN
EYE
HINGE
END
H
SWIVEL
END
EYE
END
