245
•
Owner’s Manual
Supplement
Chapter 12: Electrical System
59
Electrical Routings

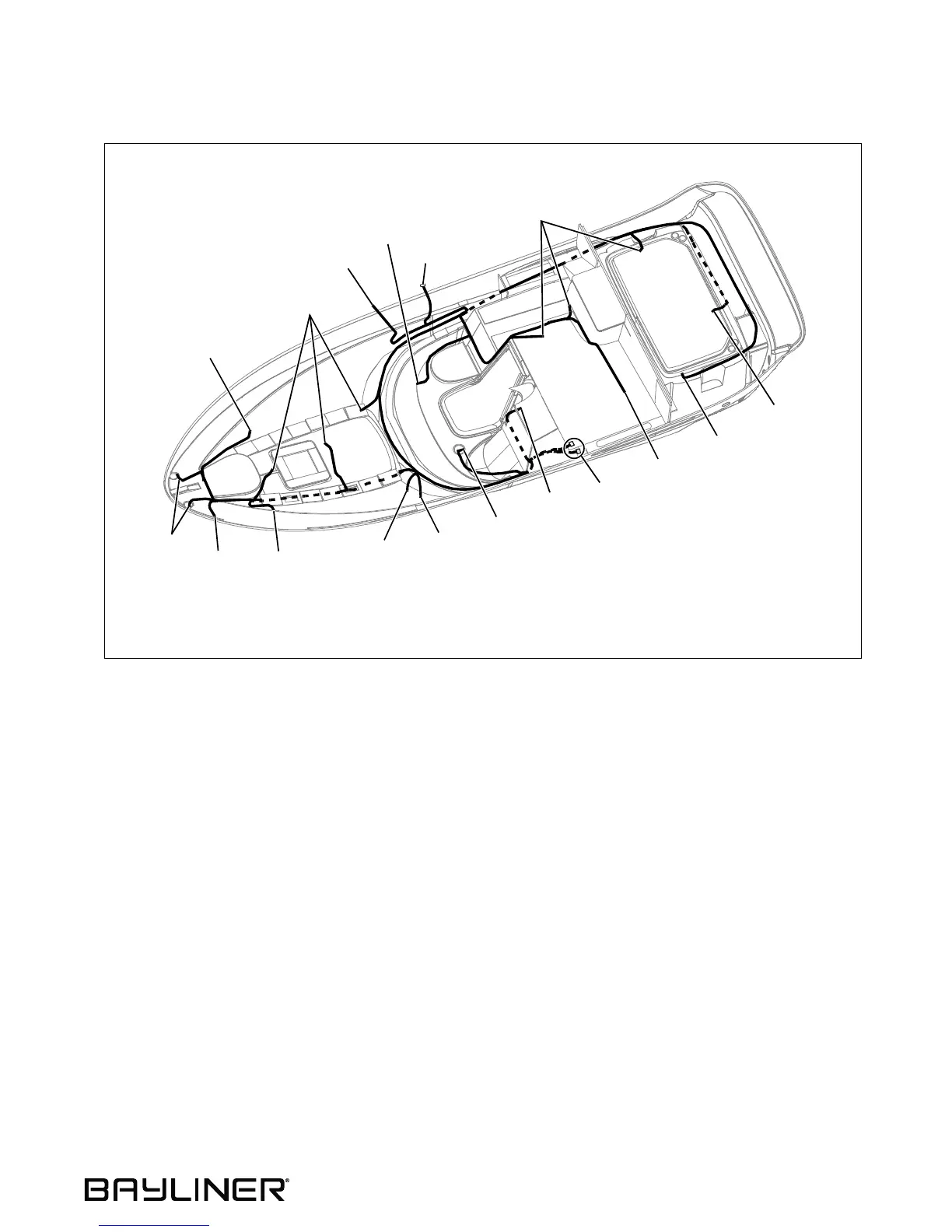

Deck Electrical Harness
NOTE: VIEW IS UNDERSIDE OF DECK
BOW
LIGHTS
HORN
SPEAKER
SPEAKER
OVERHEAD
LIGHTS
WIPER
CO
MONITOR
COMPASS
LIGHT
SWITCH
DASH
PLUGS
COURTESY
LIGHT
OVERHEAD
LIGHT
ALL-ROUND
LIGHT
COURTESY
LIGHTS
STEREO
OVERHEAD
LIGHT
GALLEY
