BCM Advanced Research MX67QMD - Power Supply

2-5
MX67QMD
Power SupplyPower Supply

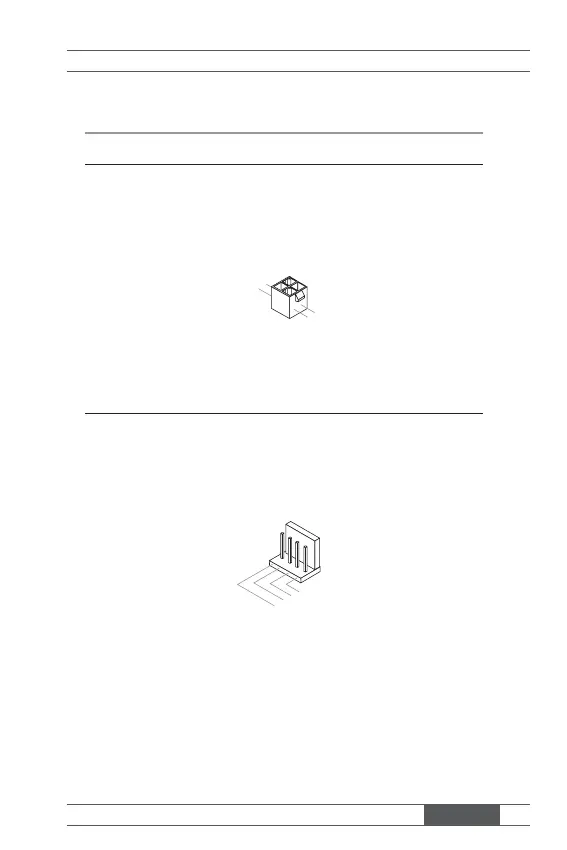

DC Power Connector: JPWR1
This connector provides 12, 15~24V DC power input.
SATA Power Connector: JSATA_PWR1, JSATA_
PWR2
This connector provides power to SATA devices.
4+12V
3.GND
2.GND
1.VCC5
4.DC Power
2.Ground
3.DC Power
1.Ground
