Bdcom S2510-B User Manual

S2510-B Hardware Installation Manual
- 1 -
Chapter 1 S2510-B Switch Introduction
The document describes the characteristics and parameters of S2510-B and gives an
overview of S2510-B.
1.1 Standard Configuration
S2510-B has three parts: 8 gigabit Base-T ports and 2 gigabit SFP ports and 1 console
port, as shown in the following table:
Table 1- 1 Attributes of the accessory port
Port
Attribute
Gigabit RJ45 port
Base-T port: 10/100/1000M auto-adaptation, MDI/MDIX
auto-identification, UTP(RJ45) port
Gigabit SFP port
SFP port: 100/1000M SFP port, Link/ACT indicators
Console port
A rate of 9600bps, RJ45 interface

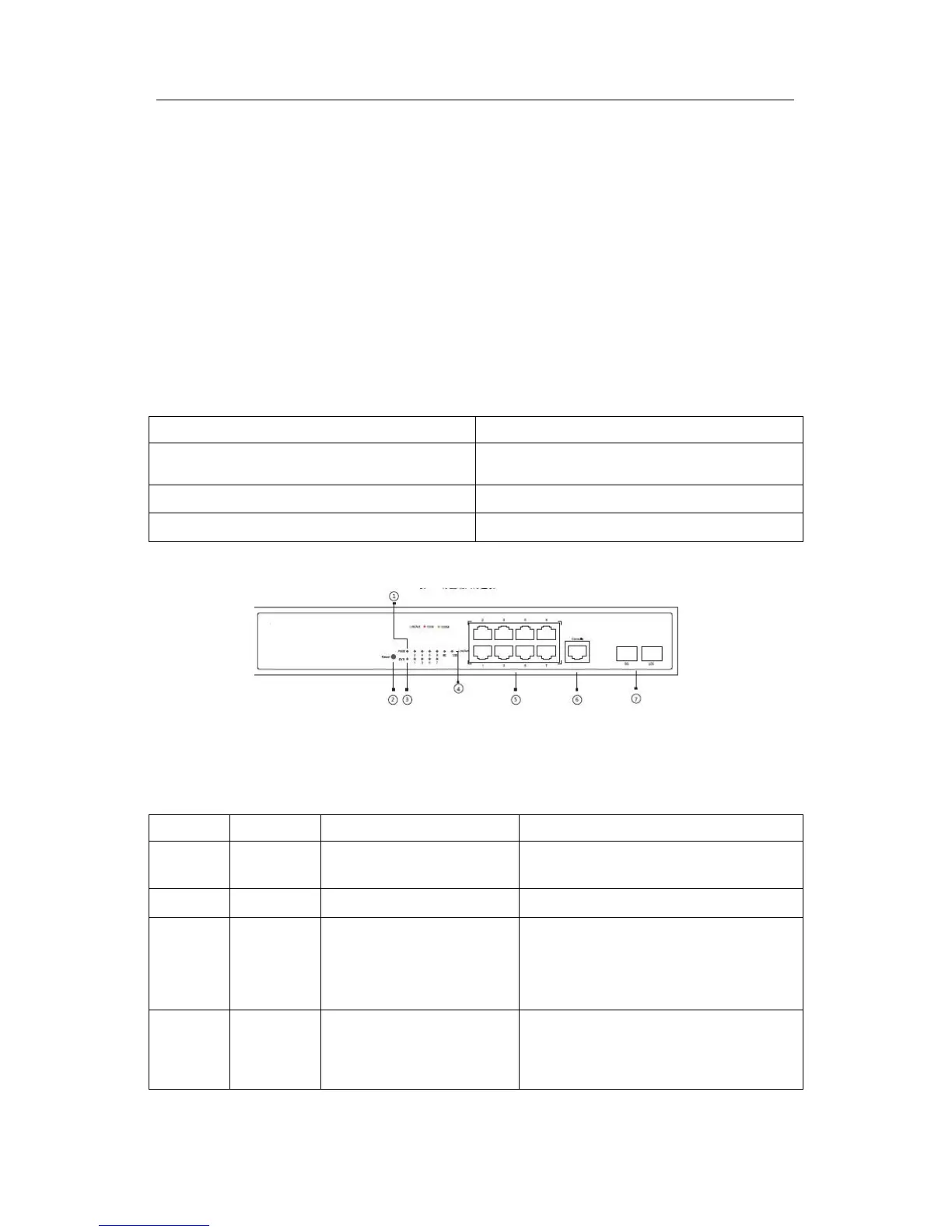

Figure 1- 1 Front template of the S2510-B switch
Table 1- 2 Parts at the front template of the S2510-B switch
No.
Abbrev.
Name
Remarks
1
PWR
Power LED
It is on when the power supply provides power
normally.
2
RESET
RESET
Resume to the default setting
3
SYS
System indicator
If the indicator is always on, the system is being
started up.
If the indicator flickers, the system works
normally.
4
Link/Act
Link/Act indicator
If the orange indicator is on, it means 10/100M.
If the green indicator is on, it means 1000M.
If the indicator is off, there is no signal
