S2510-B Hardware Installation Manual
- 2 -
transmission.
5
/
8 RJ45 ports
Forwards the 10/100/1000M Ethernet electric
signals.
6
Console
Console port
Manages the switch locally.
7
/
2 SFP ports
Forwards the 1000M Ethernet optical signals.
Additionally, S2510-B has a grounding column, a socket and a soundless fan at its back

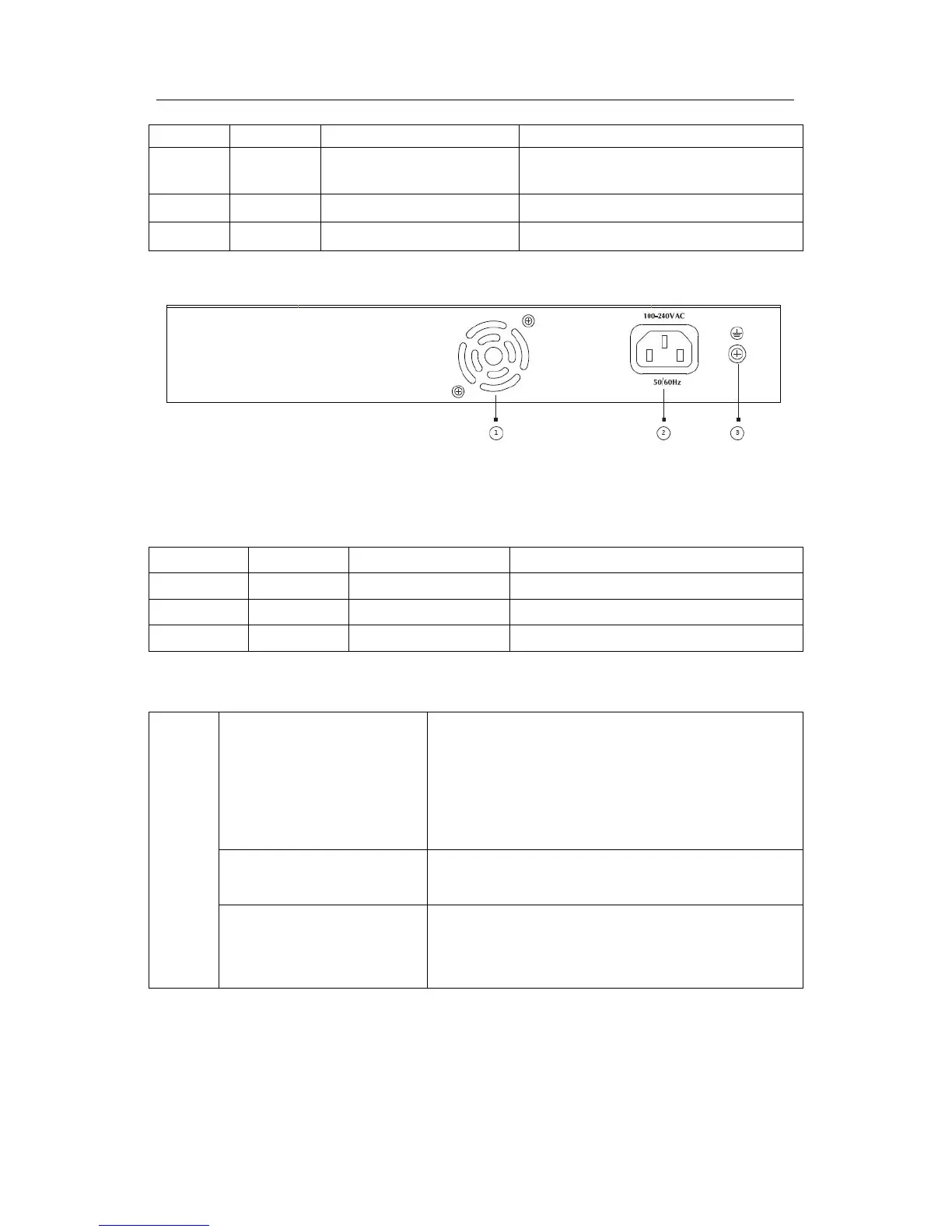

Figure 1- 2 Back template of the S2510-B switch
Table 1- 2 Parts at the back template of the S2510-B switch
No.
Abbrev.
Name
Remarks
1
/
Fan
/
2
/
AC power socket
100~240V AC
3
/
Grounding column
The grounding must be fine.
1.2 Characteristic Parameters of S2510-B
Protocol
standards
Supported standard
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1q tagged VLAN
IEEE 802.3x Flow control
IEEE 802.3ad Link aggregation
IP routing protocol standard
RFC 1058 RIP
RFC 1723 RIP v2
Network management standard
RFC 1157 SNMP v1/v2
RFC 1213 MIB II
RFC 1757 RMON 1,2,3,9
