S2510-B Hardware Installation Manual
- 9 -
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
The chassis of the switch is fixed on the cabinet through the brackets. When you fix the
brackets, the front template of the router faces forward. The detailed operations are
shown in the following figure.

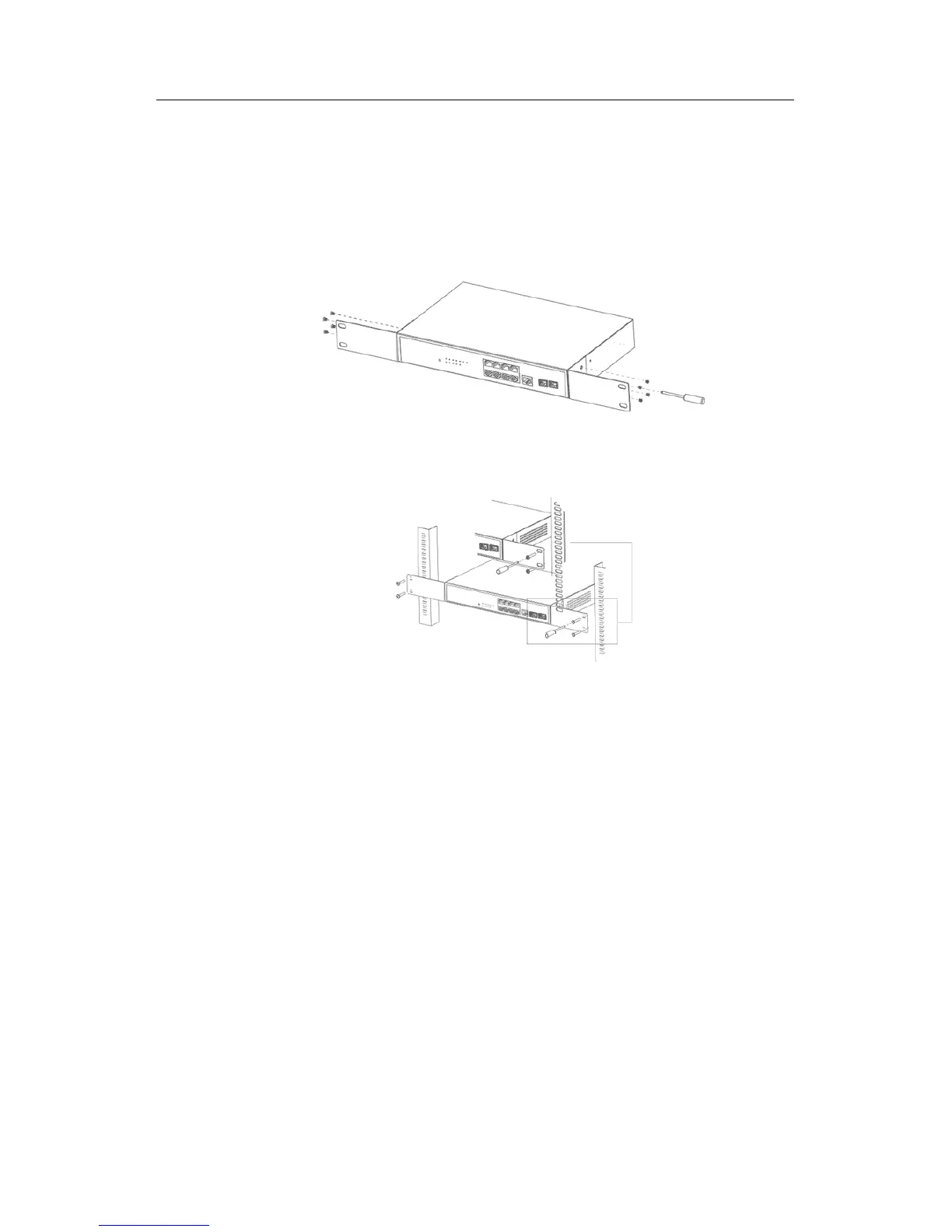

Figure 3-1 Fixing the machine box of the switch
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
The switch of S2510-B has a console port and its rate is a value ranging from 1200 to
115200 bps. It has a standard RJ-45 plug. After you connect the console port to the
serial port of PC through a console cable, you can configure and monitor the switch of
S2510-B by running a terminal emulation software, such as super Windows terminal.
The cable is provided according to the host. The communication parameters of the
terminal serial port can be set to a rate of 9600 bps, eight data bits, one stop bit, no sum
check bit and traffic control.
The RJ-45 connector of the console port is shown in the following figure. The RJ-45
plug corresponds to the RJ-45 socket, whose pins can be aligned from left to right with
the value between 1 and 8.
