S2928F Hardware Installation Manual
- 14 -

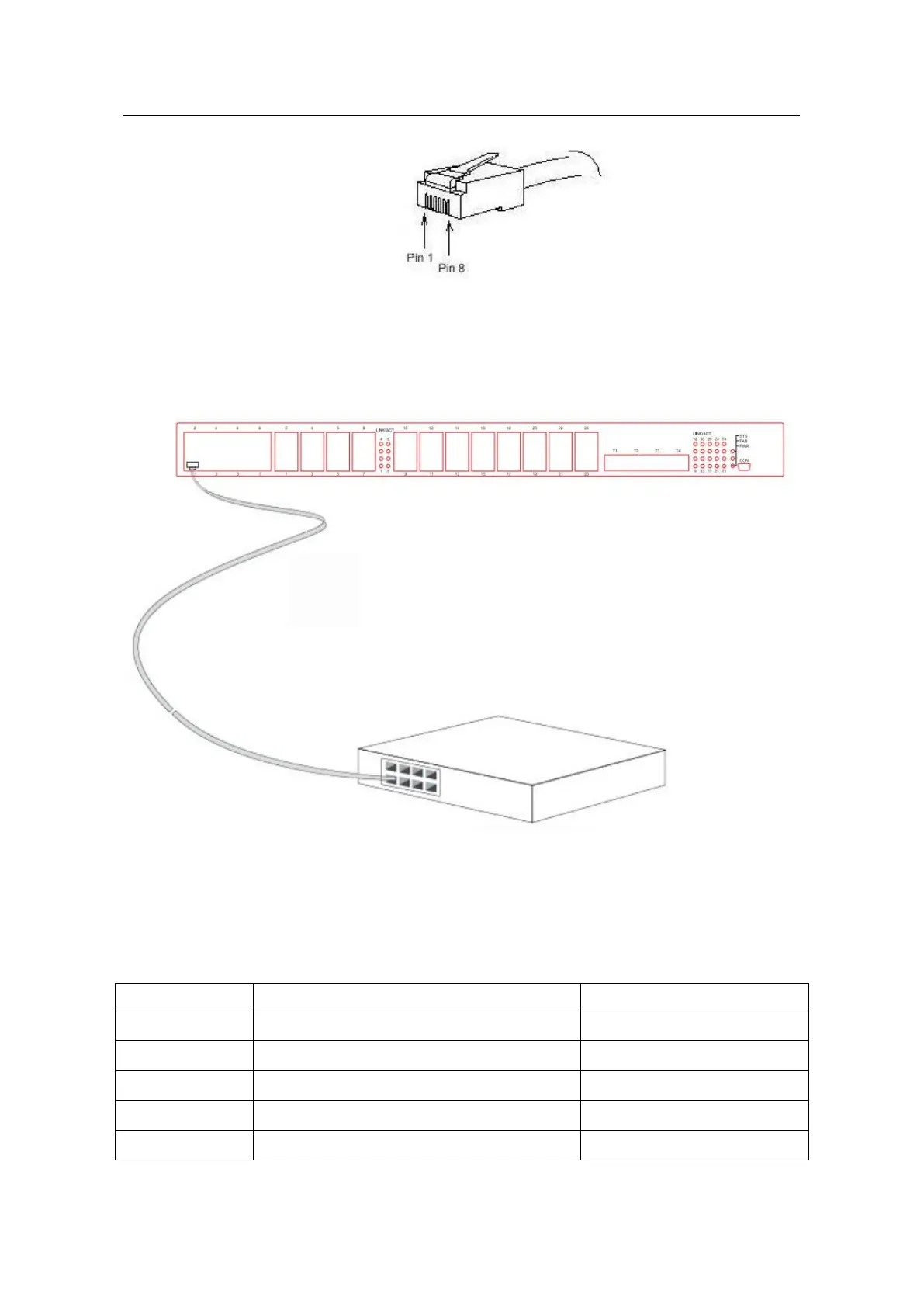

Figure 3-6 The RJ45 connector of the console port
Because 8 10/100Base-T ports of S2928F support the MDI/MDIX auto-identification of
the cable, S2928F can adopt five classes of direct-through/crossover network cables
when it connects to other Ethernet terminals.
Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals
Caution: The figure shown above does not represent the material S2928F.
Table 3- 2 Pins of gigabit RJ45 ports
No.
Pin Name
Symbol
1
Sending/receiving the normal phase of data 0
TP0+
2
Sending/receiving the paraphase of the data 0
TP0-
3
Sending/receiving the normal phase of data 1
TP1+
4
Sending/receiving the normal phase of data 2
TP2+
5
Sending/receiving the paraphase of the data 2
TP2-
