S2928F Hardware Installation Manual
- 1 -
Chapter 1 S2928F Introduction
The section describes the characteristics and parameters of S2928F and gives an
overview of S2928F.
1.1 Standard Configuration
The built-in ports of S2928F are: 8 gigabit combo ports, 16 gigabit optical ports, 4 10GE
optical ports and 1 console port. See table 1-1.
Table 1- 1 Attributes of the built-in ports
Port
Attribute
Gigabit combo port
RJ45/SFP interface with the LINK/ACT indicators
Gigabit optical port
SFP interface with LINK/ACT indicators
10GE optical port
SFP+ interface with LINK/ACT indicators
Console port
A rate of 9600bps, Mini USB interface
Additionally, S2928F has a grounding column, a socket and a power on-off at its back.

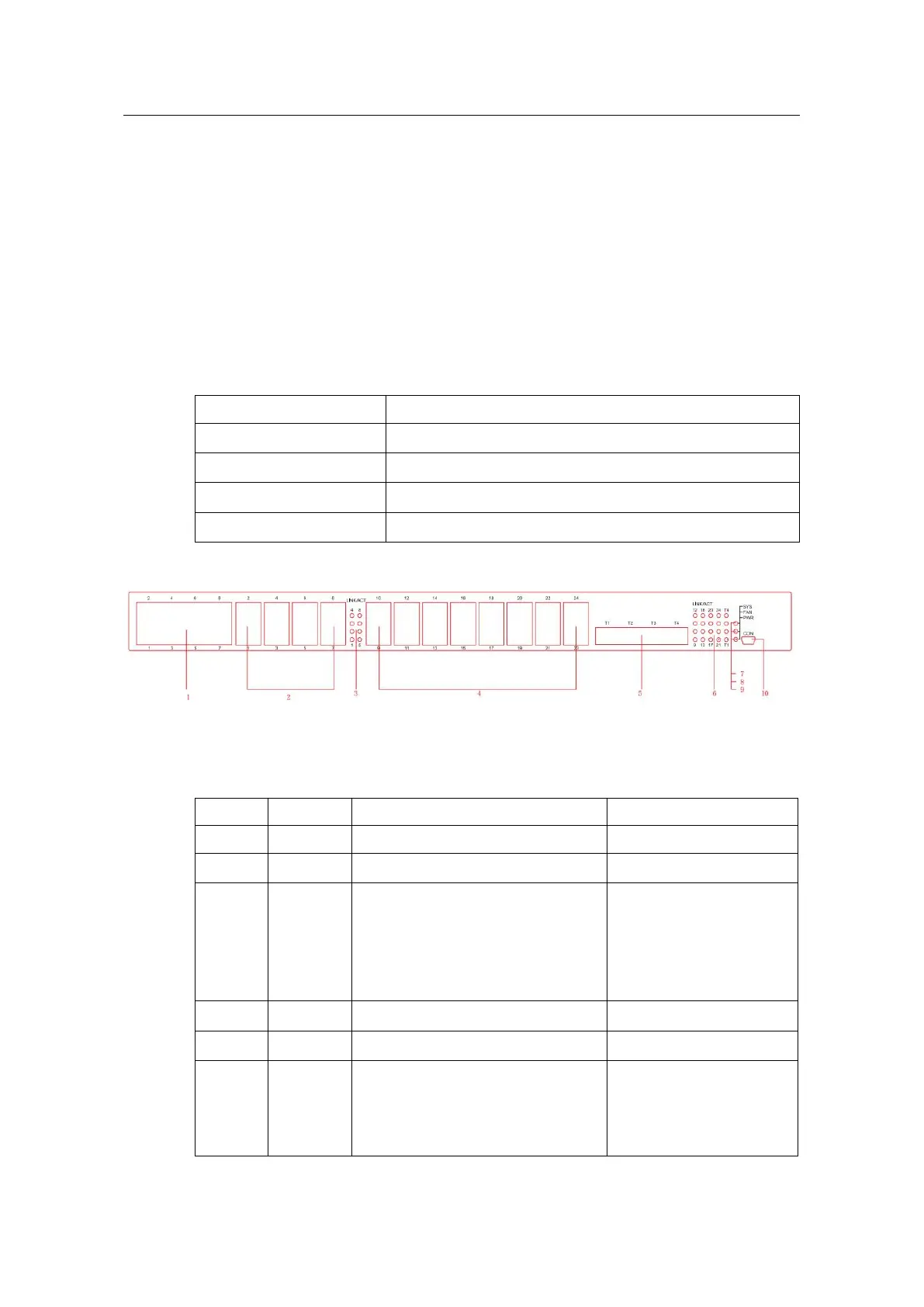

Figure 1- 1 Front template of the S2928F switch
Table 1-2 Parts at the front template of the S2928F switch
No.
Abbrev.
Name
Description
1
/
8 gigabit combo Base-T ports
/
2
/
8 gigabit combo optical ports
/
3
Link/ACT
8 gigabit combo port indicators
If the indicator is on, it
corresponds to the port UP;
If the indicator is off, it
corresponds to the port
Down.
4
/
16 gigabit optical ports
/
5
/
4 10GE optical ports
/
6
Link/ACT
16 gigabit port indicators
If the indicator is on, it
corresponds to THE port UP;
If the indicator is off, it
corresponds to the port
