S2928F Hardware Installation Manual
- 11 -

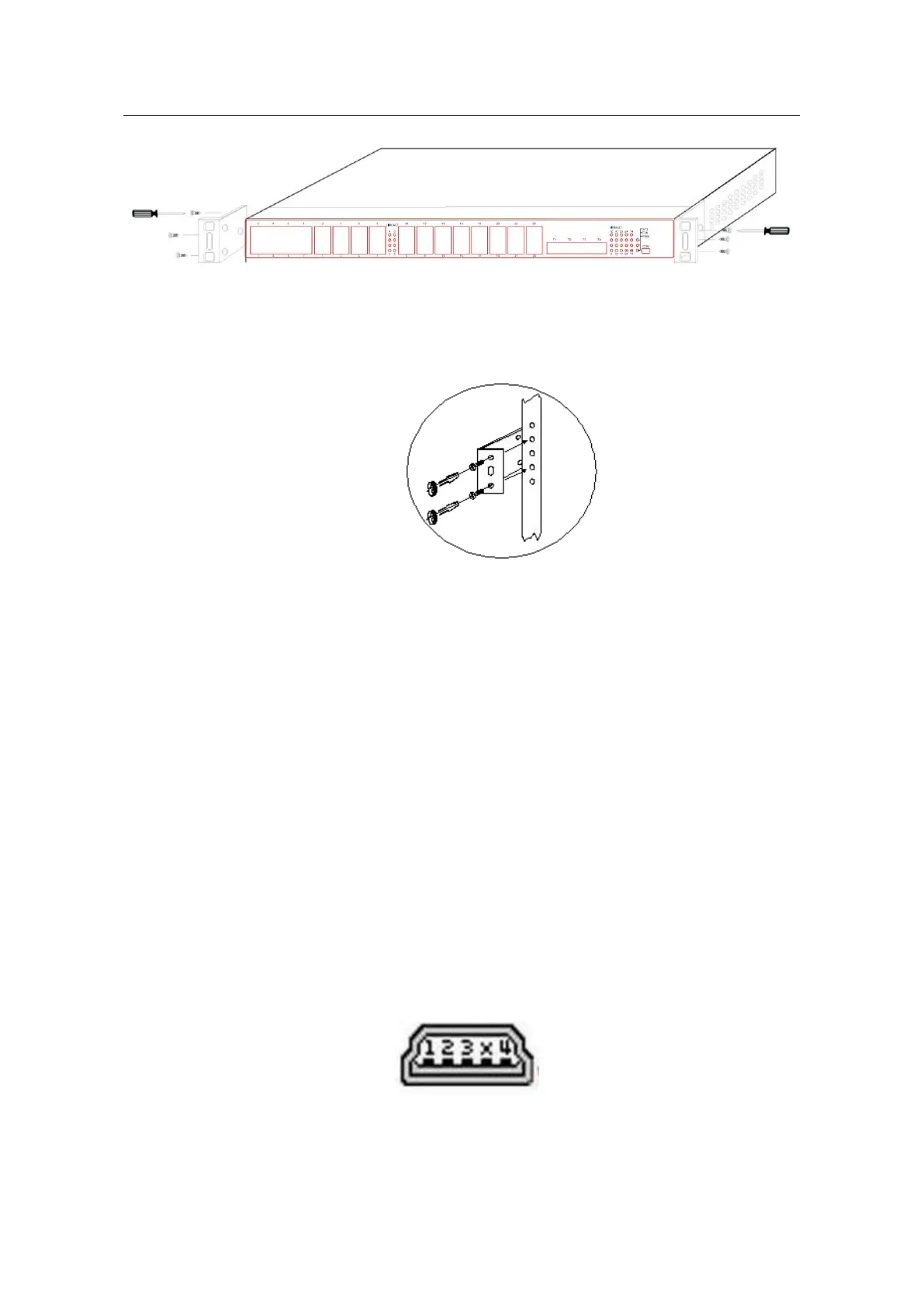

Figure 3- 1 Fixing the machine box of the switch
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of S2928F has a Console port.
The rate of the console port is 1200bps—115200bps. It has a mini USB plug. After you
connect the console port to the serial port of PC through a console cable, you can
configure and monitor the switch of S2928F by running a terminal emulation software,
such as super Windows terminal. The cable is provided according to the host. The
communication parameters of the terminal serial port can be set to a rate of 9600bps,
eight data bits, one stop bit, no sum check bit and traffic control.
The min USB connector of the console port is shown in the following figure. The mini
USB plug corresponds to the RJ45 socket, whose pins can be aligned from left to right
with the value from 1 to 4.
Figure 3-3 The Mini USB connector of the console port
