S2928F Hardware Installation Manual
- 17 -
4.1 Opening the Chassis
This section describes how to open the cover of the switch, required tools and
operation methods.
Caution:
When the power cable still connects the power supply, do not touch it.
When you open the cover the switch, you may use the following tools: These tools are:
Perform the following steps to open the cover of the switch:
(1) Turn off the power on-off of the switch.
(2) Plug out all cables connected the back of the switch.
(3) Take out the bolt from the chassis with the screwdriver.
Note:
The chassis comprises of two parts: cover and bottom.

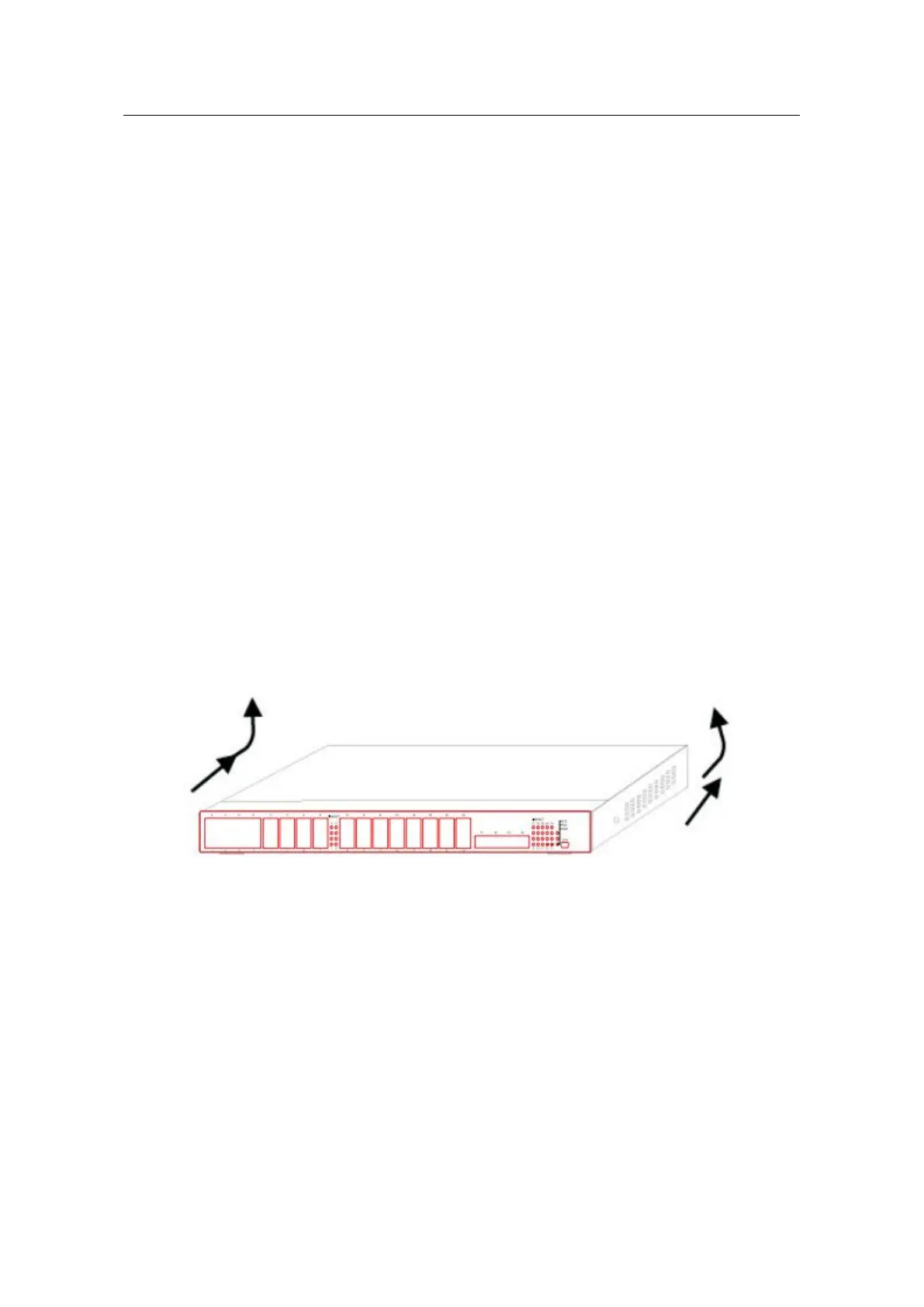

(4) Open the cover by holding two sides of the cover towards the direction of the
arrow key shown in the following figure:
(5) When the cover is opened, put it aside. The mainboard of the system appears.
Note:
After taking off the cover, put it horizontally and avoid it to be crushed or collided.
Otherwise, the chassis is hard to install.
4.2 Closing Chassis
The section mainly describes how to put the cover and close the chassis. Do as follows:
(1) Put them well according to their locations and joint them together along their sides.
