S2928F Hardware Installation Manual
- 13 -

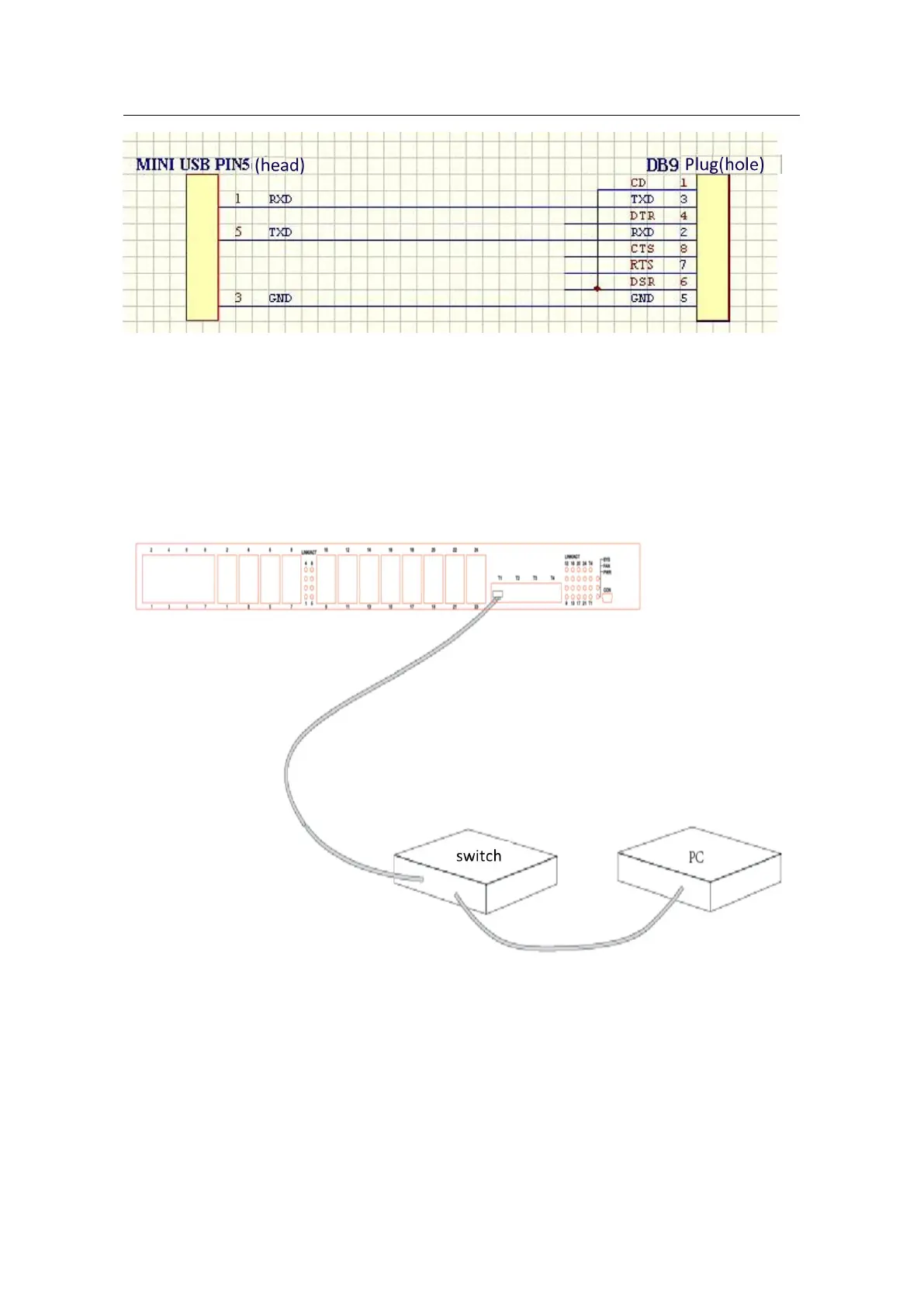

Figure3- 4 Cable connection at the console port
3.3.2 Connecting the 10GE Ethernet SFP+ Ports
The S2928F switch has 4 10GE SFP+ ports and 4 corresponding indicators TE1~TE4.
You can insert the SFP+ optical module into the port and then connect the module to
other Ethernet terminal devices through the optical fiber if you want to use the SFP+
port.
Figure 3-6 Connecting the 10GE SFP+ ports of S2928F and other Ethernet terminals
3.3.3 Connecting Gigabit Ethernet Base-T Ports
The S2928F switch has 8 10/100/1000 Base-T ports. The indicators are labeled with
numbers 1-8, indicating the link/ACT state of the port. You can connect other Ethernet
terminal devices to the UTP port through the cut-through or cross network cable.
