BEA IXIO-DT1 - RADAR OPENING IMPULSE FIELD

2
Page 6 of 12 75.5751.12 IXIO-DT1 20230913

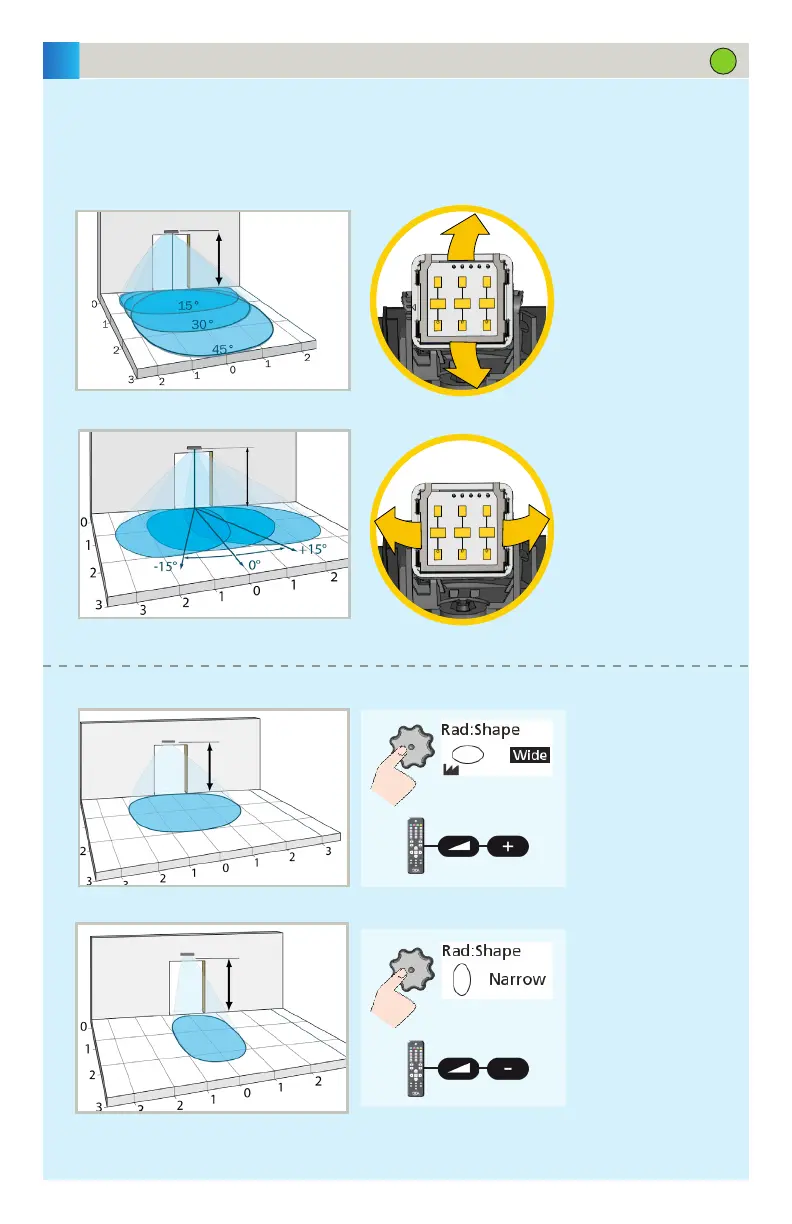

RADAR OPENING IMPULSE FIELD
ANGLE
field size: 9
immunity: 2
field size: 9
immunity: 2
The size of the detection field varies according to the mounting height of the sensor.
The following graphics are representations – not default settings.
from 15° to 45°, default 30 °
from -15° to 15°, default 0°
WIDTH
field size: 9
immunity: 2
field size: 9
immunity: 2
13’ x 6’6" (wide)
6’6" x 8’ (narrow)
1 × 1 grid is approximately 3.28 ft × 3.28 ft.
7.2 ft
7.2 ft
7.2 ft
7.2 ft
or
or
green LED = motion
detection
