BeaconMedaes Gemini - Replacement Components: Quick-Connect Wall Outlets

10
MAN01-049
Part No. 847706-00 Rev. C00
Replacement Components
Gemini and Diamond® III Outlets
1
5
4
3
2
8
7
6
1
2
5
4
3
7
6
9
8

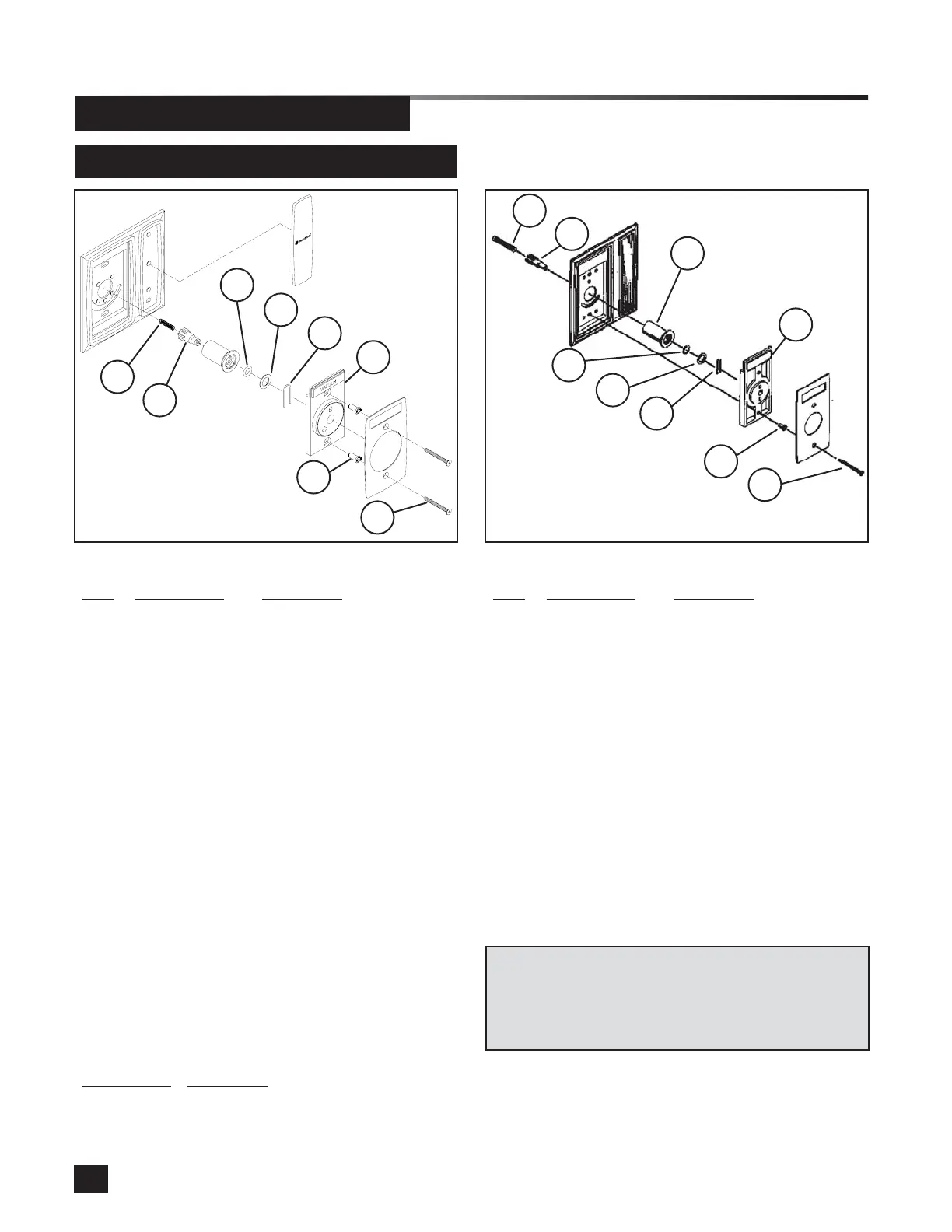

Gemini Quick-Connect Concealed Wall Outlet Diamond® III Quick-Connect Wall Outlet
Item Part Number Description
1.
833436-PG Spring (pkg of 10)
2. 4107 2097 44 Piston (pkg of 10)
3. 622589-PG O-Ring, Red (pkg of 10)
4. 415038-PG Washer (pkg of 10)
5. 833953-PG Lock-in Adapter Spring
(pkg of 10)
6. 831344-PG Eyelet (pkg of 50)
7. 4107 4005 21 Screw, 6-32 x 1-1/2”
8. Keying Disc
616316-10 Oxygen
616316-11 Nitrous Oxide
616316-12 Medical Air
616316-13 Vacuum
616316-19 WAGD
Item Part Number Description
1.
833436-PG Spring (pkg of 10)
2. 4107 2097 44 Piston (pkg of 10)
3. 622589-PG O-Ring, Red (pkg of 10)
4. 415038-PG Washer (pkg of 10)
5. 833953-PG Lock-in Adapter Spring
(pkg of 10)
6. 4107 2097 31 Eyelet (pkg of 50)
7. 4107 4005 21 Screw, 6-32 x 1-1/2”
8. Keying Disc
4107 4006 08 Oxygen
4107 4006 09 Nitrous Oxide
4107 4006 11 Medical Air
4107 4006 10 Vacuum
4107 4006 75 WAGD
9. 4107 6520 87 Front Body Cylinder
Repair Kits:
Gemini:
To repair 10 outlets, order 1 each of
290804-PG and 1 each of 831344-PG, as
shown as item 6.
Diamond III:
To repair 10 outlets, order 1 each of
290804-PG and 1 each of 4107 2097 31,
as shown as item 6.
Part Number Description
290804-PG Primary Check Repair Kit
Items 1, 2, 3, 4, and 5
NOTE:
Do not interchange Keying Discs or Front Body
Cylinders between Gemini and Diamond® III
applications. Repairs may result in leakage.
