BeaconMedaes Gemini - Replacement Components: Quick-Connect Console Outlets

11
MAN01-049
Part No. 847706-00 Rev. C00
Replacement Components
Gemini and Diamond® III Outlets
1
5
4
3
2
8
1
2
5
4
3
7
6
9
8

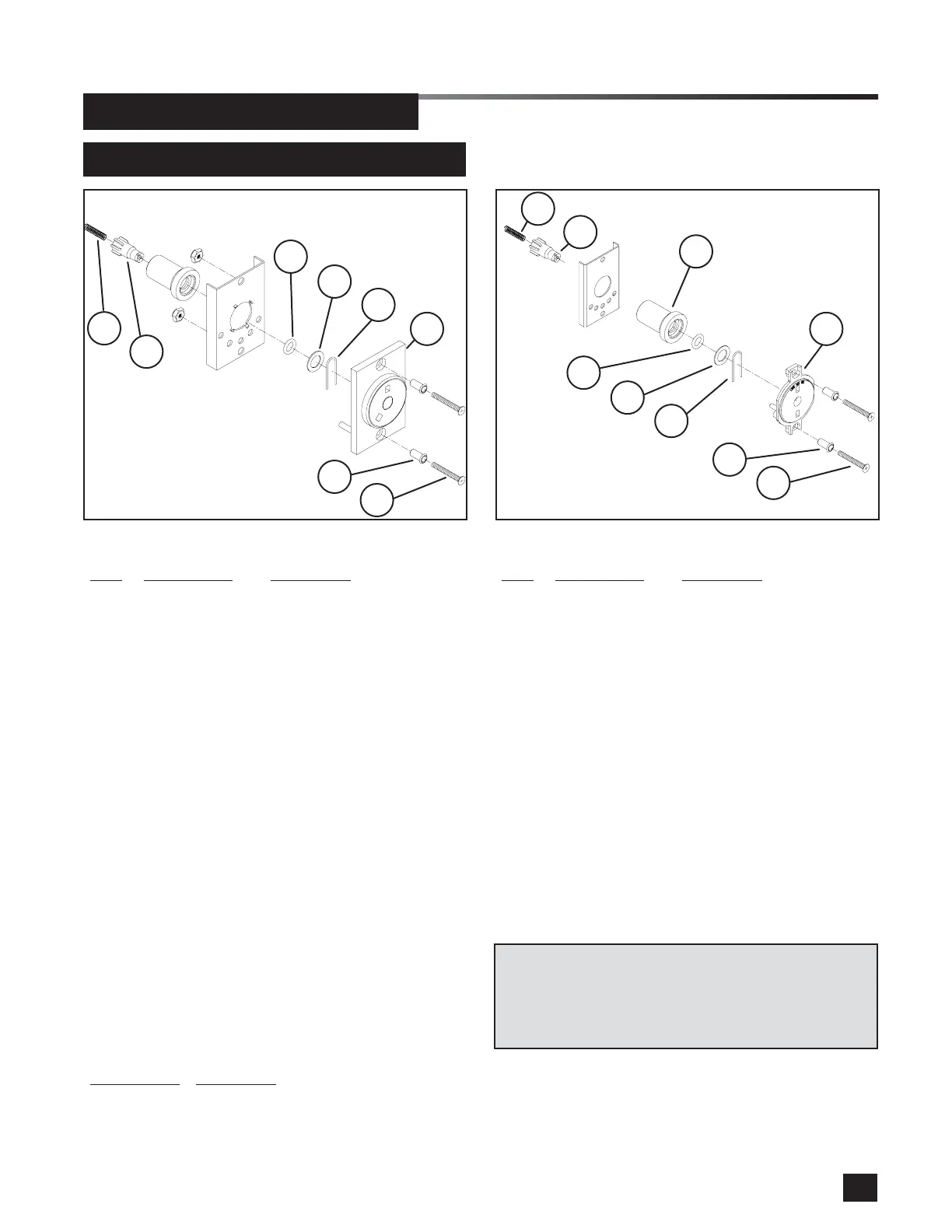

Gemini Quick-Connect Console Outlet Diamond® III Quick-Connect Console Outlet
Item Part Number Description
1.
833436-PG Spring (pkg of 10)
2. 4107 2097 44 Piston (pkg of 10)
3. 622589-PG O-Ring, Red (pkg of 10)
4. 415038-PG Washer (pkg of 10)
5. 833953-PG Lock-in Adapter Spring
(pkg of 10)
6. 831344-PG Eyelet (pkg of 50)
7. 4107 4005 21 Screw, 6-32 x 1-1/2”
8. Keying Disc
616318-10 Oxygen
616318-11 Nitrous Oxide
616318-12 Medical Air
616318-13 Vacuum
616318-19 WAGD
Item Part Number Description
1.
833436-PG Spring (pkg of 10)
2. 4107 2097 44 Piston (pkg of 10)
3. 622589-PG O-Ring, Red (pkg of 10)
4. 415038-PG Washer (pkg of 10)
5. 833953-PG Lock-in Adapter Spring
(pkg of 10)
6. 4107 2097 31 Eyelet (pkg of 50)
7. 4107 4005 21 Screw, 6-32 x 1-1/2”
8. Keying Disc
4107 6520 74 Oxygen
4107 6520 73 Nitrous Oxide
4107 6520 75 Medical Air
4107 6520 76 Vacuum
9. 4107 6520 87 Front Body Cylinder
Repair Kits:
Gemini:
To repair 10 outlets, order 1 each of
290804-PG and 1 each of 831344-PG, as
shown as item 6.
Diamond III:
To repair 10 outlets, order 1 each of
290804-PG and 1 each of 4107 2097 31,
as shown as item 6.
Part Number Description
290804-PG Primary Check Repair Kit
Items 1, 2, 3, 4, and 5
NOTE:
Do not interchange Keying Discs or Front Body
Cylinders between Gemini and Diamond® III
applications. Repairs may result in leakage.
