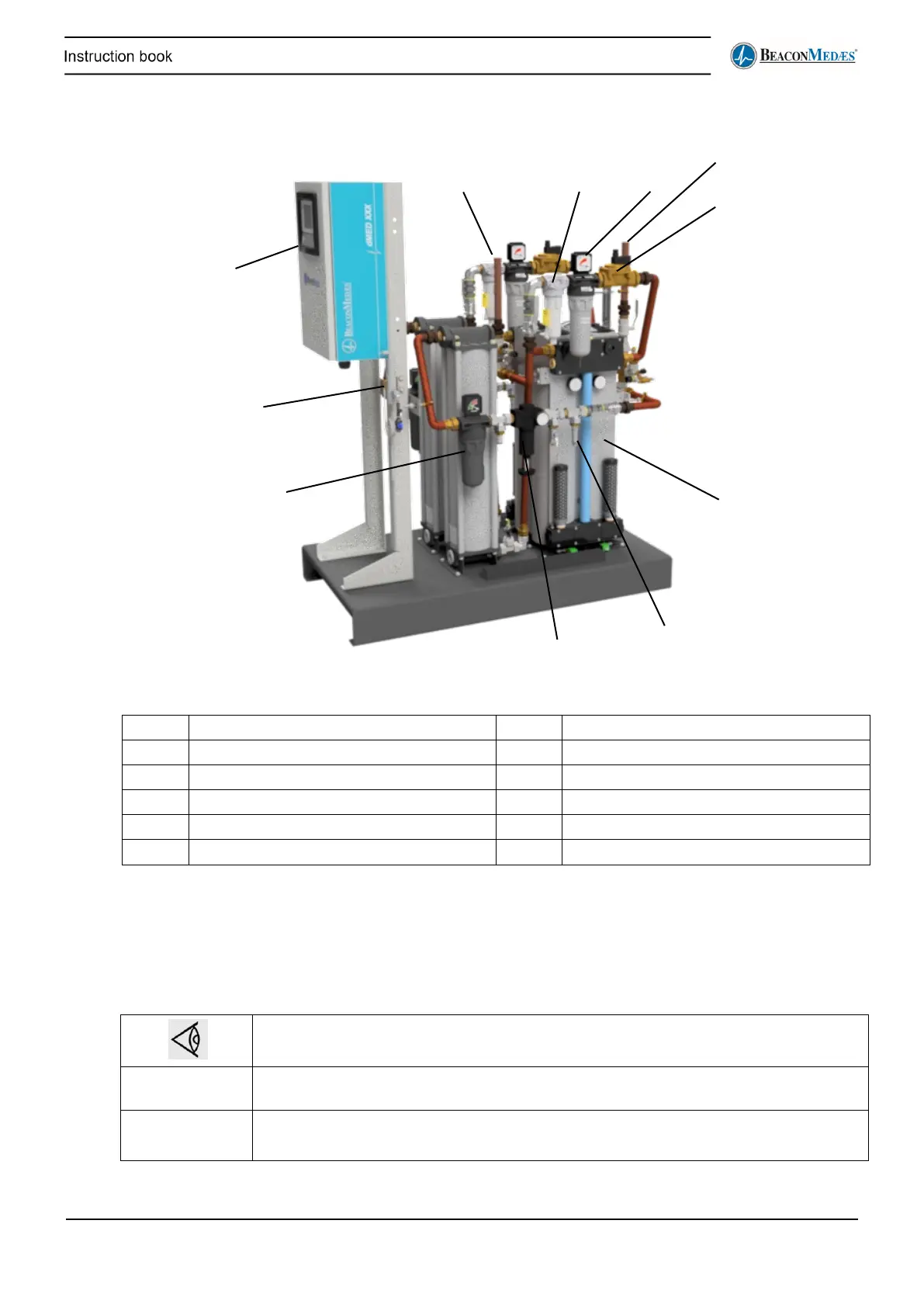

General views
1 Air inlet 7 Dew point sensor (2)
2 Water separator (WSD) 8 PDp+ filter
3 UD+ filter 9 Regulator (1)
4 Inlet Solenoid 10 Relief valve
5 PD dryer 11 Air outlet valve
6 QDT+ filter 12 ES-MED controller
(1) – Regulator is fitted to all HTM models. Regulator is not fitted to NFPA instrument air models.
(2) - Dewpoint sensor
a. HTM models set to read atmospheric dew point.
b. NFPA models set to read pressure dew point.
Important
The dual medical air purifier unit is designed, manufactured and inspected
according to the legislation mentioned.
Always consult the local legislation on this topic, since
the specifications of the air quality
can be different.
A purifier unit is considered as an active medical device, relying on a source of electrical
energy for its operation.
9
10
7
4
1
6
2
8
3
11
12
