2.4 PD dryer
Description
The construction of the air dryer is simple, reliable and easy to service. A dryer basically
consists of two vertical cylinders (towers), containing the adsorption material (desiccant). This
desiccant is a very porous grain material, able to adsorb large amounts of water vapour.

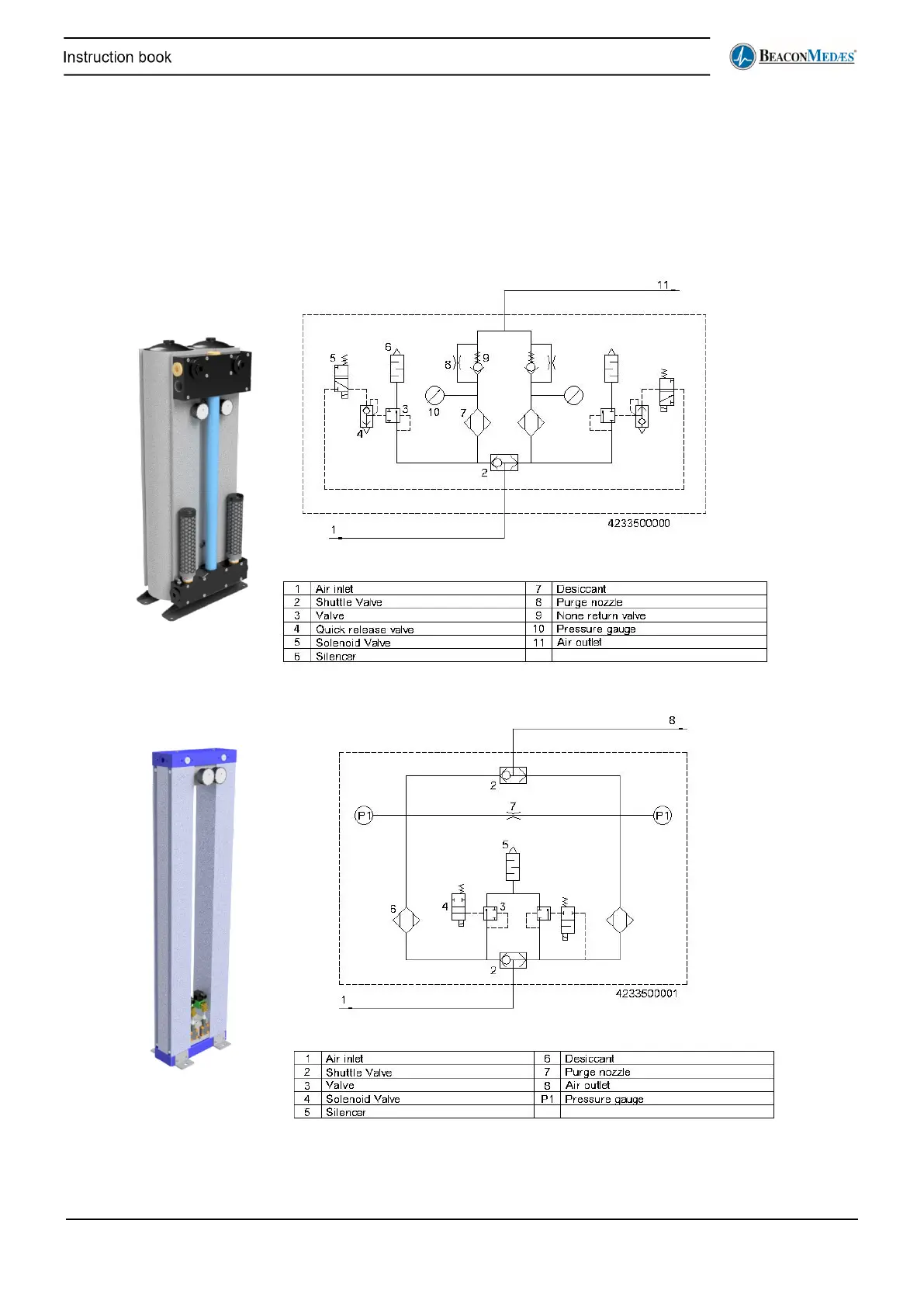

PD3 type dryer (dMED 046, dMED 075, dMED 090, dMED 110, dMED 150, dMED 220, dMED 300)
PD1 type dryer (dMED 025, dMED 035)
