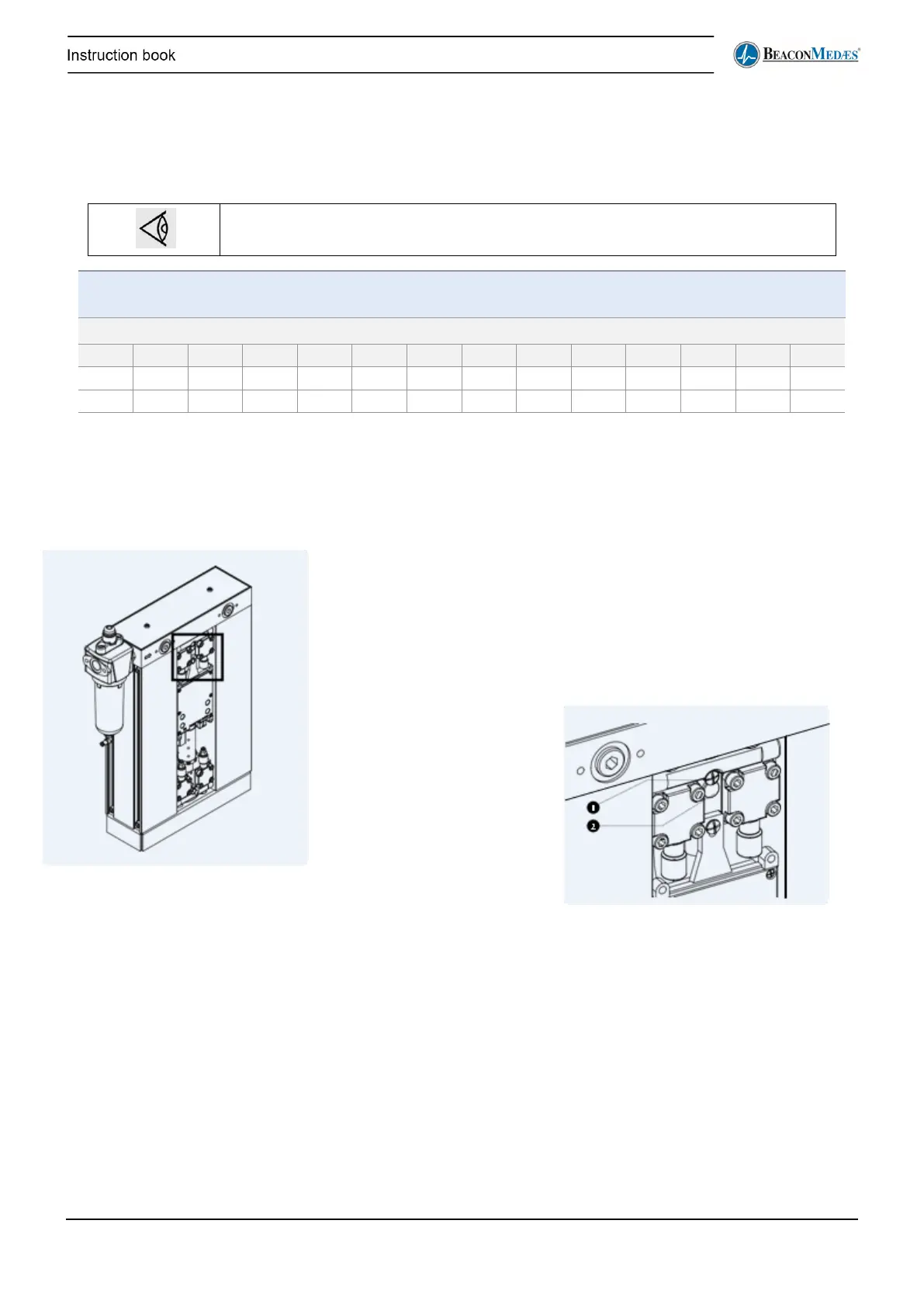

8.6 Purge plug identification/changeout dMED 25 & 35
• Remove dryer front panel.
•
Remove purge plug securing screw from the upper valve block.
• Remove purge plug.
•
Replace with appropriate purge plug according to inlet pressure.
Refer to table above.
• Grease purge plug O-ring to ensure ease of fit
1. Securing screw
2. Purge plug
Ensure shutdown and start up procedures are followed prior to carrying out any purge
plug changeout
Purge Plug Identification
Model Operating Pressure (barg)
4 5 6 7 8 9 10 11 12 13 14 15 16
dMED025 PPK020 PPK018 PPK016 PPK015 PPK014 PPK014 PPK013 PPK013 PPK013 PPK012 PPK012 PPK012 PPK012
dMED035 PPK028 PPK023 PPK021 PPK020 PPK018 PPK018 PPK016 PPK015 PPK015 PPK014 PPK014 PPK014 PPK014
