Dryer Forced Operation
This function forces one dryer to work independent of a dew point or dryer pressure alarm
(disables automatic switchover function).
The switch button is available to enable switchover to the other dryer if preferred.
This function will be disabled automatically after 6h. Afterwards, the dryer will revert to its normal
operation.
4 DIN Rail Controller

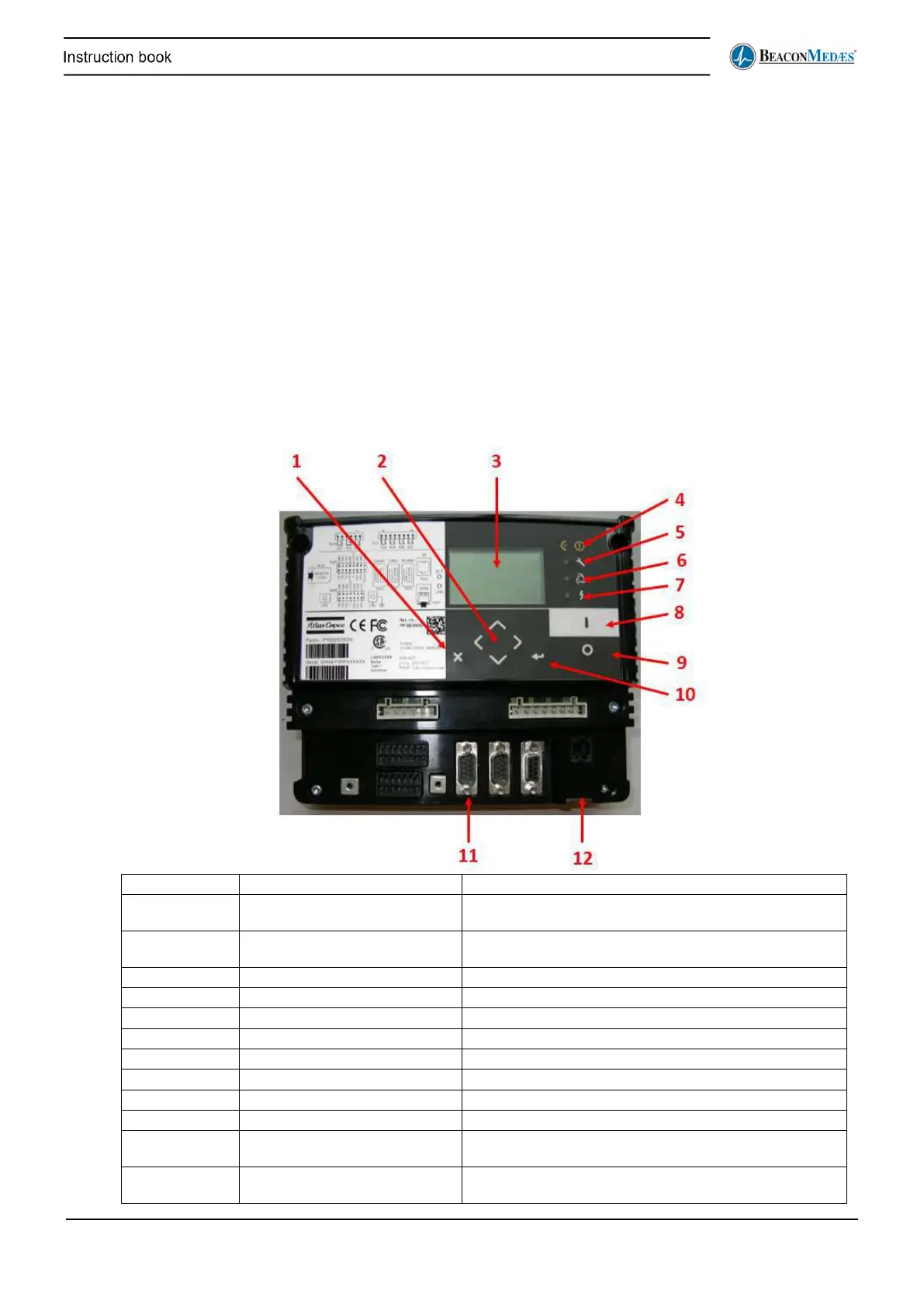

4.1 Interface Icons and menu structure
Interface
Item
Designation
Function
1
Escape button
Go to the previous screen or end current
action.
2
Scroll buttons
Use these buttons to scroll through the
menu.
3
Display
Shows icons and operating conditioning.
4
Warning LED
Is lit when warning is triggered.
5
Service LED
Is lit when a service is needed.
6
Operation LED
Is lit when the dryer is operational.
7
Voltage LED
Indicates the voltage is turned on.
8
Start button
Start the dryer
9
Stop button
Stop the dryer
10
Enter button
Confirm action.
11
CAN2 connection
Required CAN connection to connect to the
main controller
12
Ethernet port
Port for software download, external
monitoring,…
