3.2 Purifier controller operation
Main screen
On the main screen the status of the air plant is shown. This means the most important
measurements of the compressed air at the outlet (pressure level and atmospheric dew point)
and any possible alarms are shown.

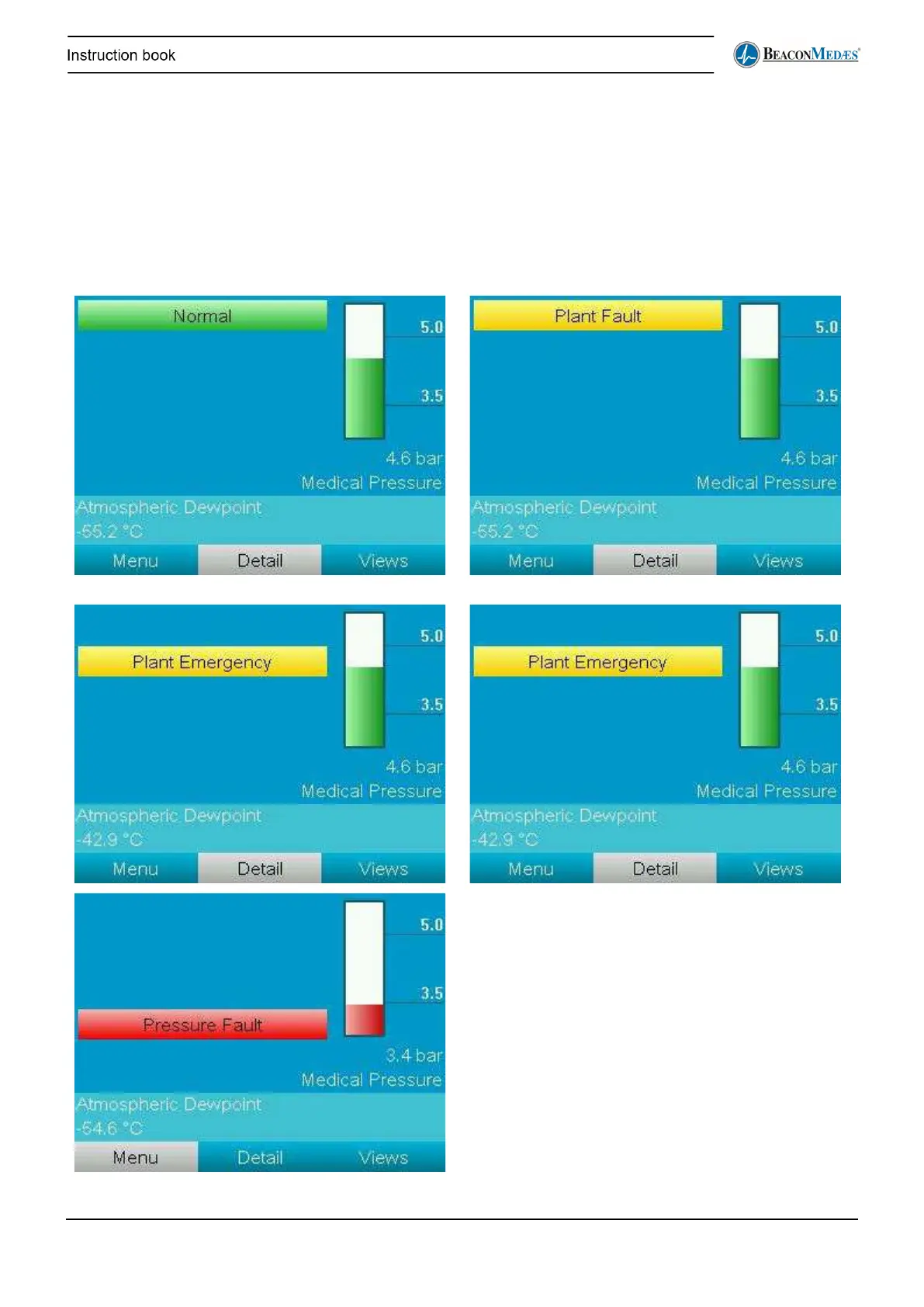

On the figure below the different statuses/alarms can be seen from left to right: normal operation,
operating alarm triggered and emergency operating triggered.
