16
The illustrations are only examples. Of course, the MICROBEAST also works with other receivers and
remote control systems.
Remember that it is not the receiver that is crucial for the channel order but that this depends primarily
on the allocation of control functions in the transmitter. If you do not know in which order the channels
of your transmitter / receiver have to be connected, refer to the instructions that came with your
transmitter and receiver, see the servo monitor of the transmitter (if available) or contact the
manufacturer of your remote control system.

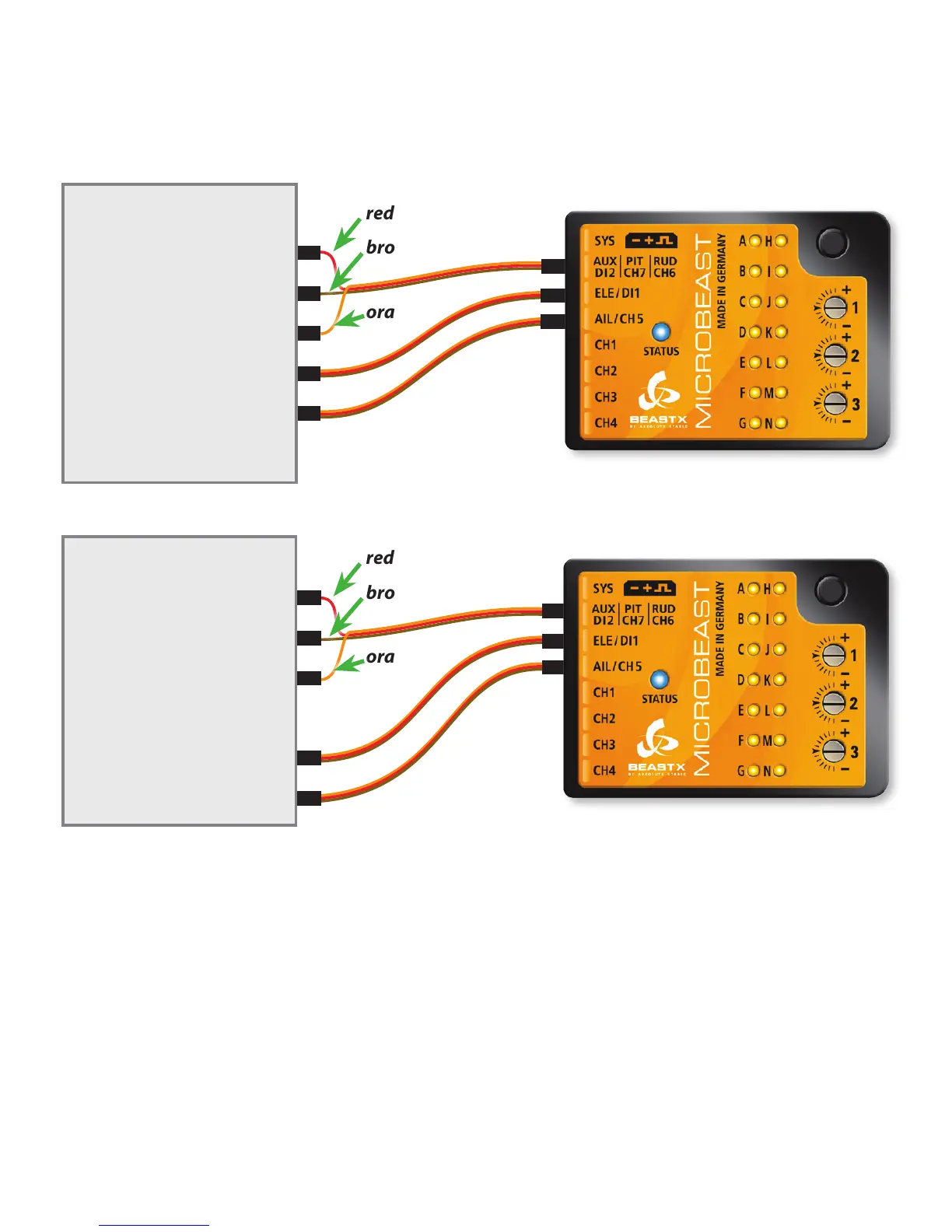

Abb. 5
7
6
5
4
3
2
1
FUTABA
RECEIVER
AUX2
AUX1
GEAR
RUDD
ELEV
AILE
THRO
JR / Spektrum
RECEIVER
red
brown
orange
red
brown
orange
