4.2.2 Spektrum® Satellite receiver
To connect a Spektrum® satellite (remote) receiver on the MICROBEAST a special optional adapter is
required. This adapter is connected to the [DI1] input of the MICROBEAST. Please observe correct
polarity, the orange signal line must be next to the cover. The cable for the Spektrum® satellite receiver
is then plugged into this adapter.

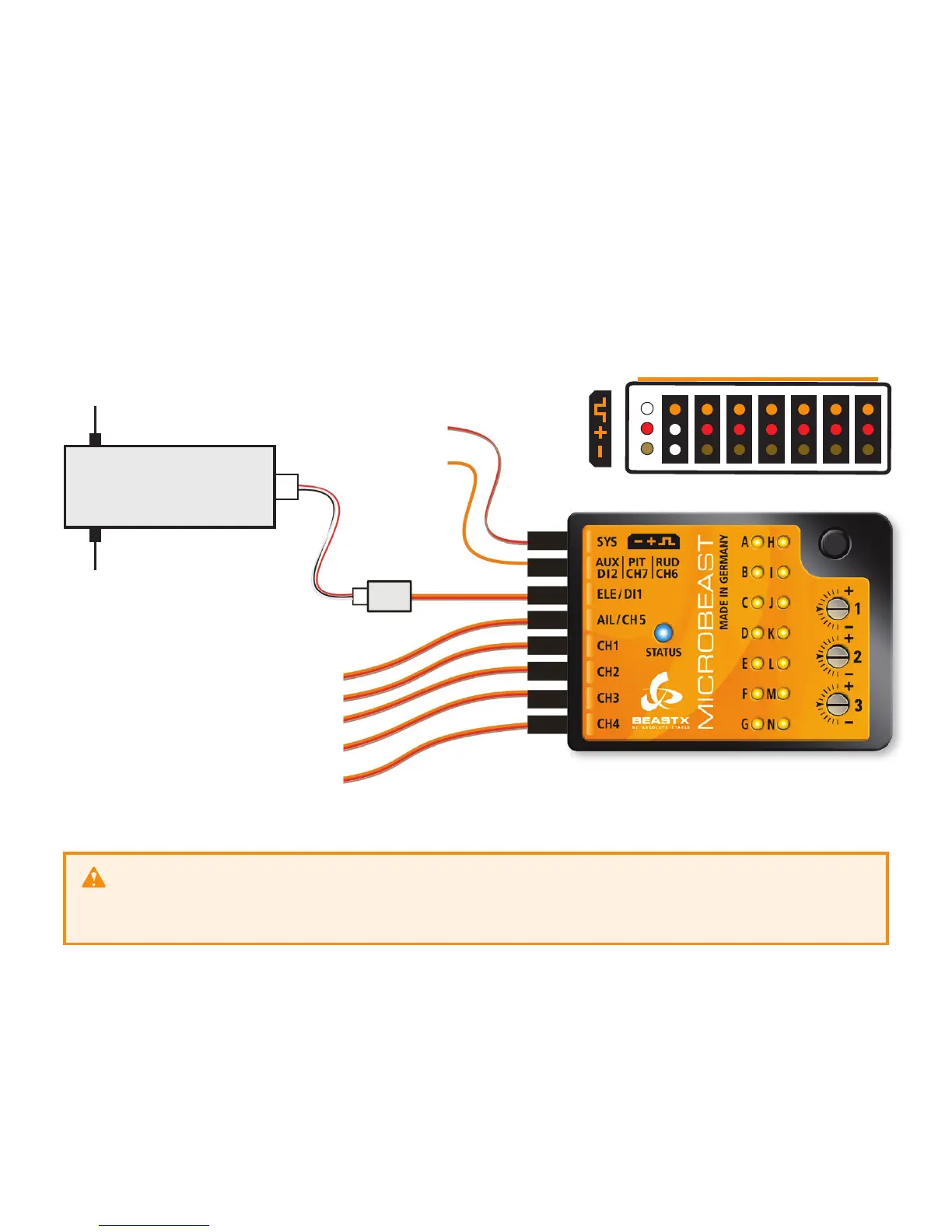

Fig. 7
Top
CH5 throttle servo/ESC and power supply
Elevator servo
Aileron servo
Aileron / pitch servo
Tail servo
Power supply
CH6 additional channel
Optional
adapter
SPEKTRUM®
Satellite receiver
The use of MICROBEAST with a single Spektrum® satellite receiver is allowed only on micro or
mini helicopters (450 size helicopters) because of the limited range due to the lack of antenna
diversity!
