Fig. 21
The option “user dened” allows you to dene your own setting with the PC software.

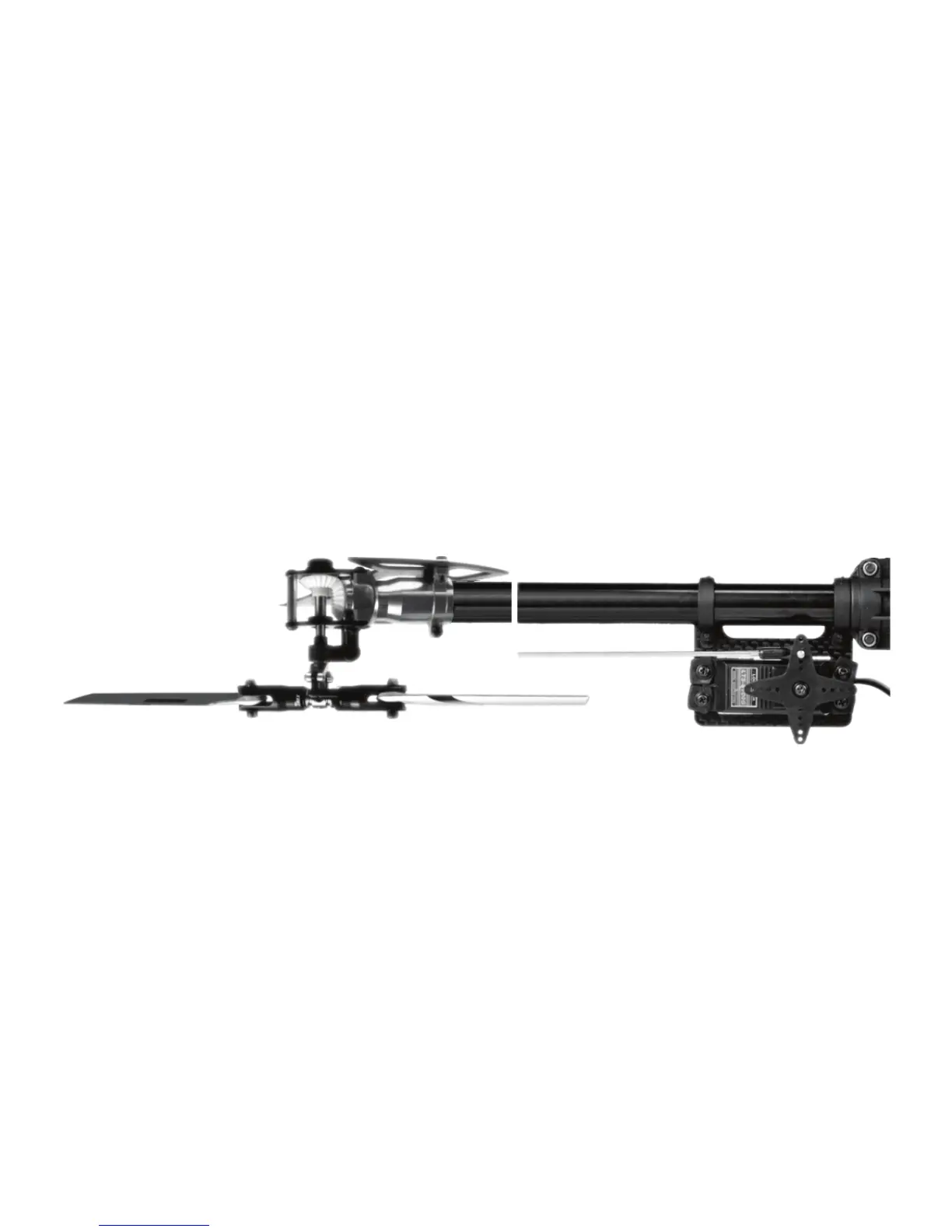

Next attach a servo horn to the tail servo in such a way that the tail linkage rod forms a 90 degree
angle to the servo horn (or as close as possible) and then adjust the linkage rod as described in the
manual for your helicopter. For most helicopters the tail pitch slider should be centred and the tail rotor
blades will then have some positive pitch to compensate for the torque of the main rotor.
Note: This menu item will not be left automatically after 4 minutes, so you have plenty of time to adjust
the mechanical setup.
Push the button to save the conguration and to proceed to setup menu point E.
