Now adjust the linkage rods according to your helicopter manual. The swashplate should now be at the
midpoint and perpendicular to the main shaft and the rotor blades should have 0 degrees of pitch.
Always work this out from bottom (servos) to top (blade grips).
Also level and phase the swashplate driver in the correct way.
At 0 degrees of pitch the swash driver arms must be horizontal and the linkage balls of the blade grips
have to be perpendicular to the spindle shaft.
Push the button to save the conguration and to proceed to setup menu point H.

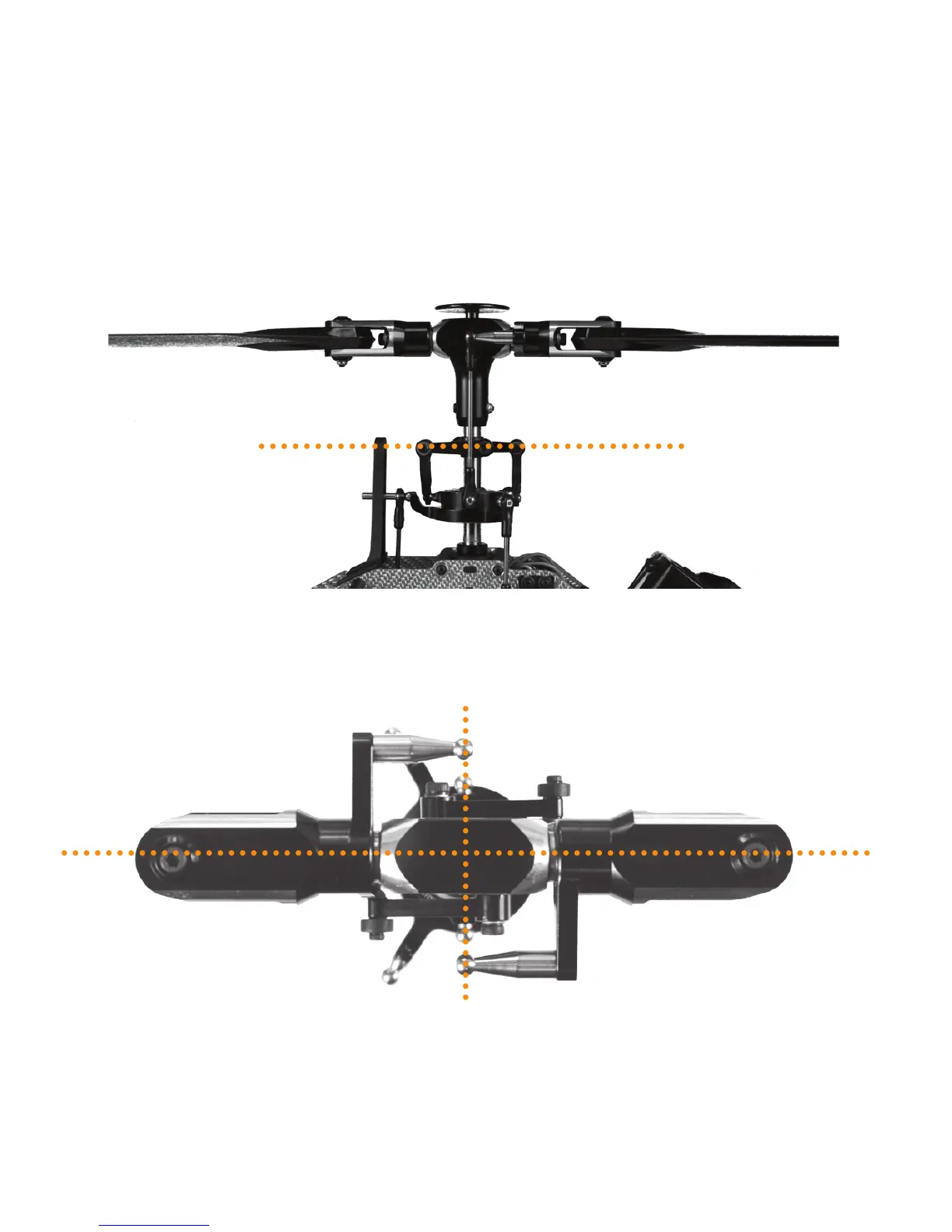

Fig. 26
