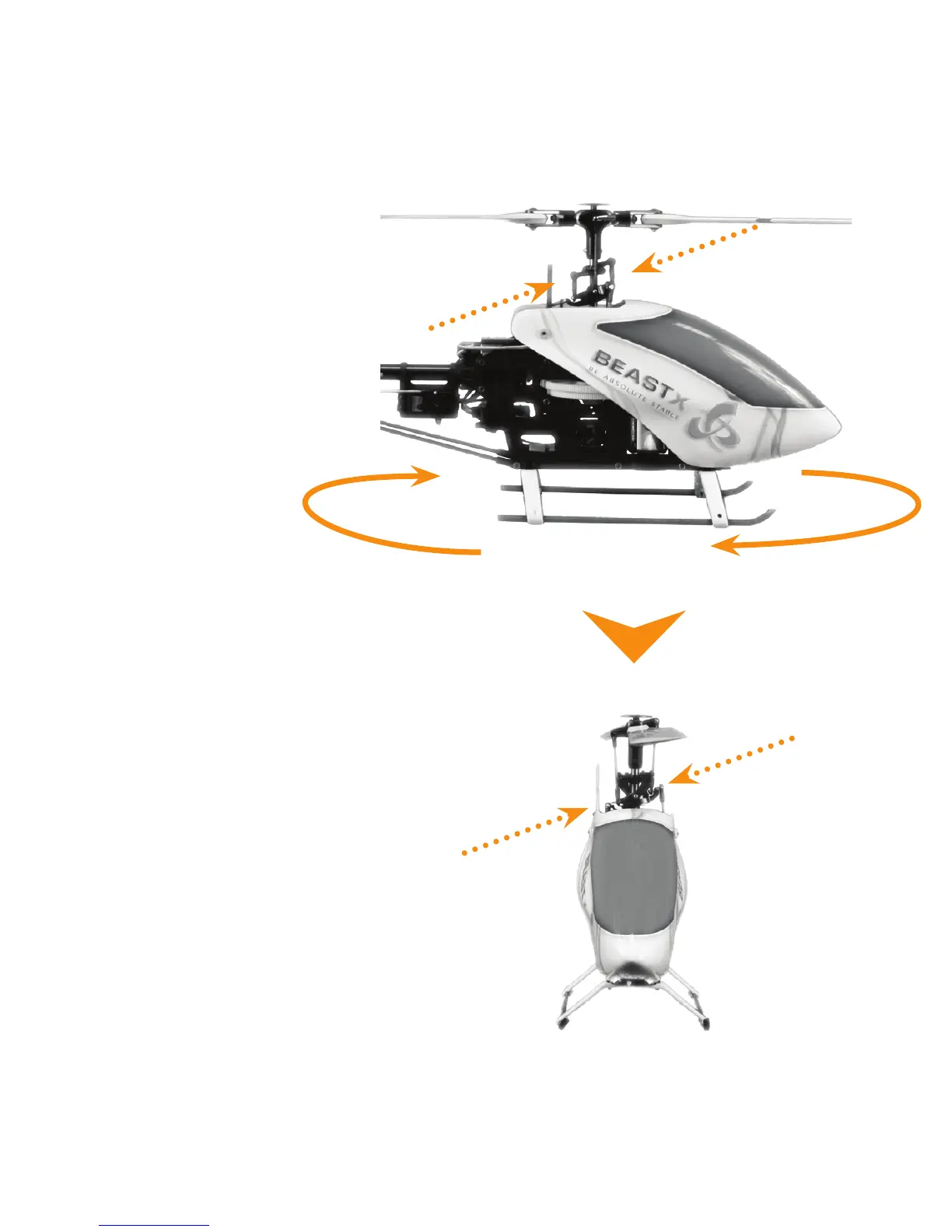

1. Swashplate points to the left

2. Rotate the helicopter

around the vertical axis

3. Swashplate must still point left, as before

Fig. 32
