Beck IPC@CHIP SC01 User Manual


SC01/SC02/SC11/SC12
IPC GmbH
Sc12hw09.doc page 4 of 37 24.11.1999 V0.9
TF/WB
The @CHIP SC01/SC02/SC11/SC12 microcontrollers are part of the Beck IPC@CHIP®
family of System on Chip microcontrollers and microprocessors based on the x86
architecture. The IPC@CHIP family microcontroller is the ideal upgrade for 80C186/188
designs requiring 80C186/188 compatibility, increased performance, serial
communications, Ethernet communications, a direct bus inter-face, and more than 64K of
memory.
The IPC@CHIP family microcontrollers integrates up to 512Kbyte DRAM with increased
performance and up to 512Kbyte FLASH in reducing memory subsystem costs.
The IPC@CHIP family microcontrollers also integrates the functions of the CPU,
multiplexed address bus, three timers, watchdog timer, chip selects, interrupt controller,
two DMA controllers, two asynchronous serial ports, programmable bus sizing, and pro-
grammable I/O (PIO) pins on one chip.
The @CHIP SC11/SC12 microcontroller is a highly integrated design that provides all
Media Access Control (MAC) and Encode-Decode (ENDEC) functions in accordance with
the IEEE 802.3 standard. Network interfaces including 10Base-T via the Twisted-pair. The
integrated 10Base-T transceiver makes @Chip SC11/SC12 more cost-effective.
Compared to the 80C186/188 microcontrollers, the IPC@CHIP family microcontrollers
enables designers to reduce the size, power consumption, and cost of embedded
systems, while increasing reliability, functionality, and performance.
The IPC@CHIP family microcontrollers has been designed to meet the most common
requirements of embedded products developed for the communications, office
automation, mass storage, and general embedded markets. Specific applications
including industrial controls, data collection, protocoll conversion, process monitoring and
internet connectivity.

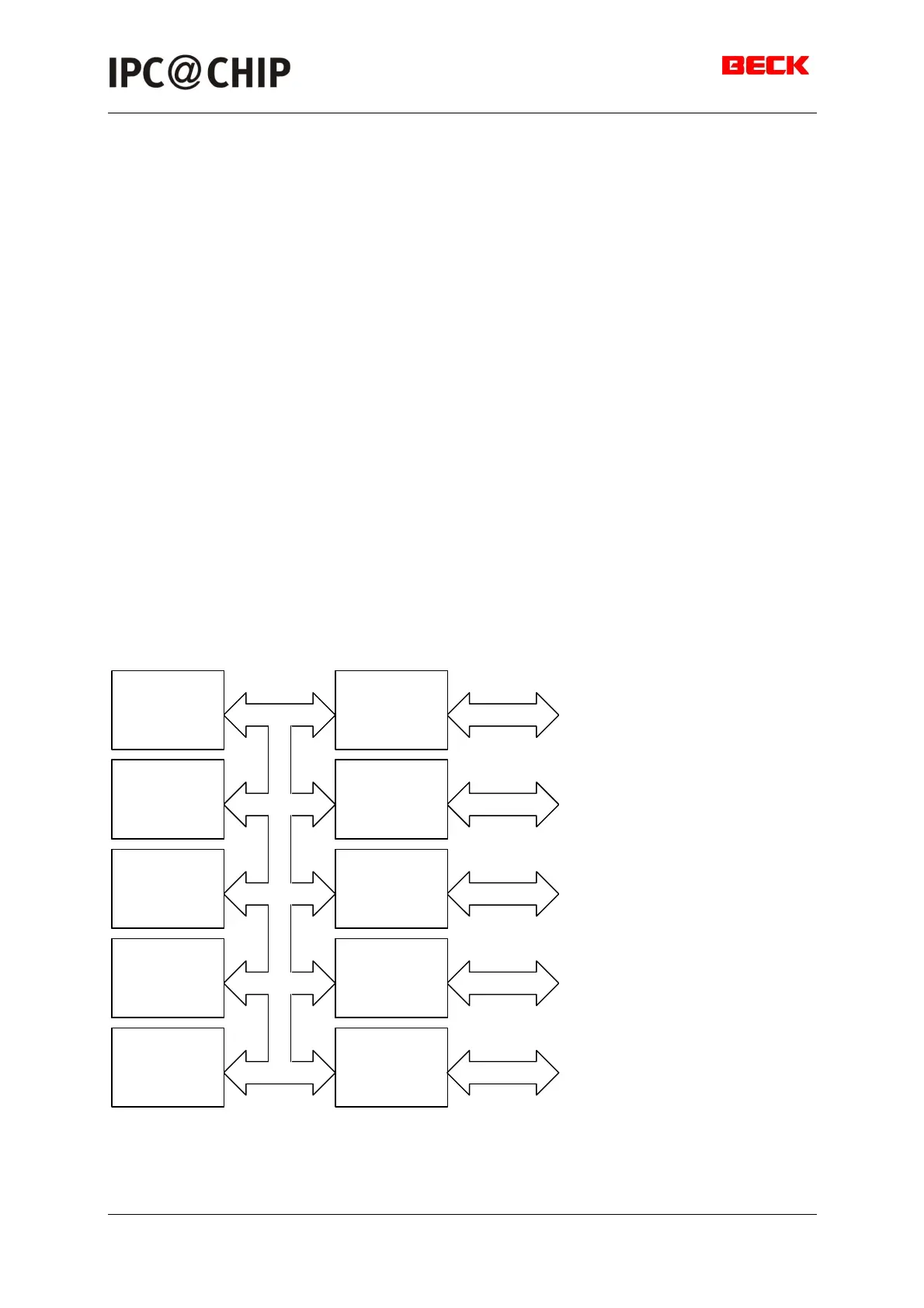

IPC@CHIP family microntroller block diagram
DRAM
256Kx16
128Kx8
CPU
80186
80188
Ethernet
PHY
Flash
512Kx8
128Kx8
DMA
UART
CORE
LOGIC
WATCH
DOG
8 Bit Address-/Databus
AD[0..7], ALE
A[0..2], RD#, WR#
INT[0,2..4], INTA#
10Base-T
TPTX+, TPTX-
TPRX+, TPRX-
Link/Traffic LED
TxD[0..1], RxD[0..1]
CTS[0..1], RTS[0..1]
ENRX0, RTR0
DRQ[0..1]
Programmable I/O
PIO[0..13]
PCS[0..3,5..6]
TMRIN[0..1]
TMROUT[0..1]
RESET#, NMI
Ethernet
MAC
Oscilator
20MHz
