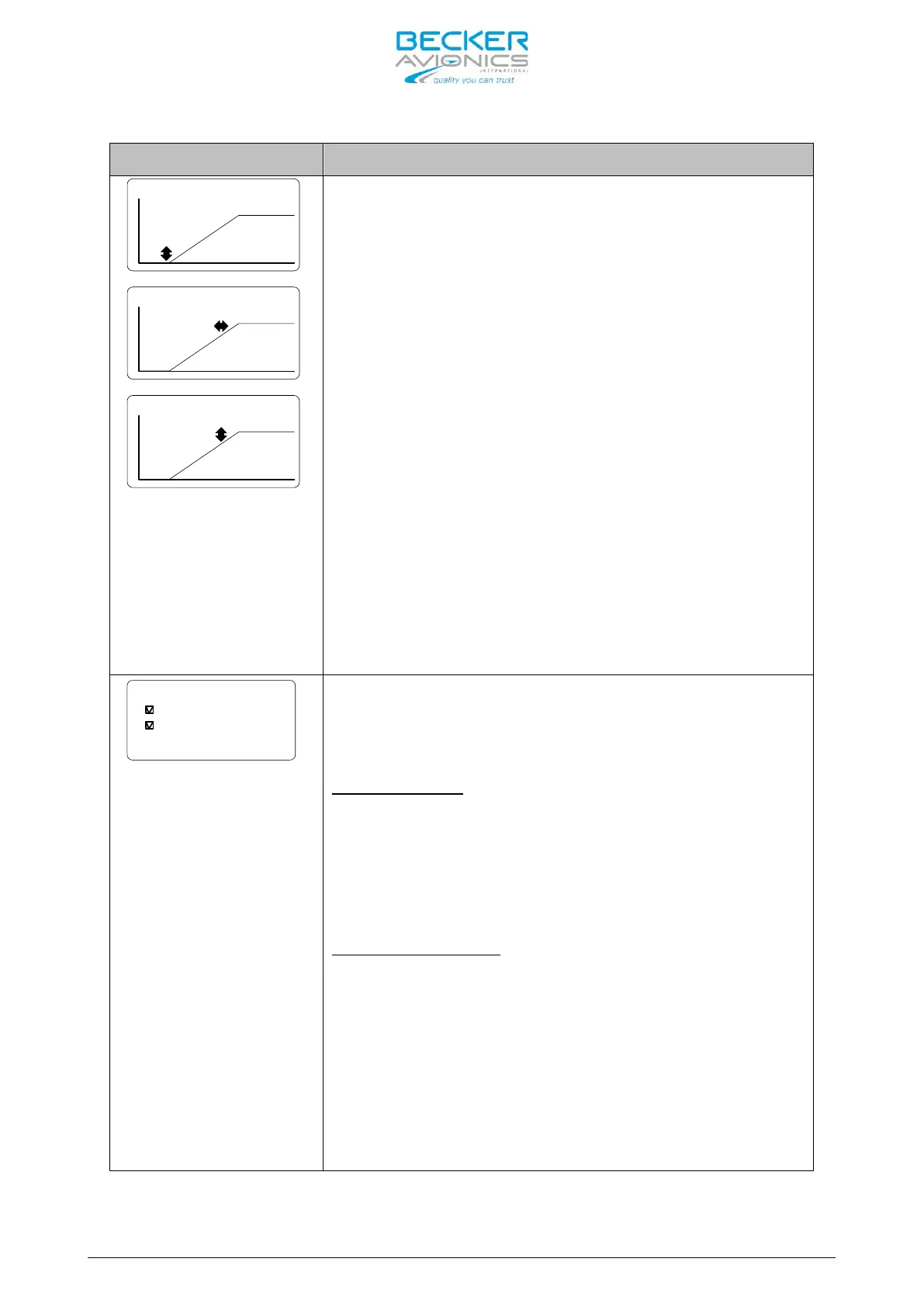

Becker AR6201 - Page 54

AR6201 - RT6201 - RCU6201 - AR6203
Page 2-22 DV 14307.03 Issue 1 09/2013
Display Contents Description
ILLUM CURVE
I
L
L
U
M
ILLUM CURVE
I
L
L
U
M
ILLUM CURVE
I
L
L
U
M
direction using the “ROTARY ENCODER”.
(1) This parameter defines
the horizontal
parameter V1
x
(minimum values: 1.5V for 14V
dimming bus and 4V for 28V dimming bus). Up to
this value the brightness is zero. When reaching
V1
x
the brightness is immediately adjusted to V1
y
.
(2) This parameter defines the vertical parameter
V1
y
which is the level of brightness that is set
when trigger point V1
x
is reached.
(3)
This parameter defines the horizontal
parameter V2
x
(maximum values: 14 or 28 V
depending on selected dimming input)
where the
illumination curve reaches the maximum brightness
level.
(4) Thi
s parameter defines the vertical parameter
V2
y
which is the maximum brightness.
Note: Menu available on primary and secondary
controller
MEMORY OPTIONS
CHANNEL STORE
STORE LAST CHANNEL
Two options can be selected on “MEMORY OPTIONS”
page. By means of the “ROTARY ENCODER” one
option
can be highlighted and enabled/ disabled by
pushing the “STO” button.
CHANNEL STORE:
If this option is enabled frequencies
can be
stored in any of the 99 available channels.
Even if the “CHANNEL STORE” option is disabled
the
user has access t
o previously stored “User
Channels”
STORE LAST CHANNEL
If this option is enabled, the device
automatically stores the last used VHF frequency
in “Last Channel” database and user has a read
access to this database.
If this option is disabled the stored data in the
“LAST CHANNEL” database is not accessible.
Note: Menu available on primary and secondary
controller
