Channel selection/ Group selection/ Central command
The channel of a transmitter can be programmed into one or more receivers.
Only the channels in which receivers are programmed are displayed. One
channel is activated through an individual command, several channels through
a group command or central command.
One group has a maximum of 4 channels and is assigned a colour.
Depending on the model/ specification of the transmitter, several groups can
be selected.
One quarter of the LED ring lights up to indicate each of the individual chan-
nels. A group consists of four channels which are represented by different col-
ours.
If the entire LED ring lights up in one of the group colours, this group is selec-
ted. With the group command, all channels of the selected group are activ-
ated.
If the entire LED ring lights up white, the central command is selected. With the
central command, all channels of all groups are activated.

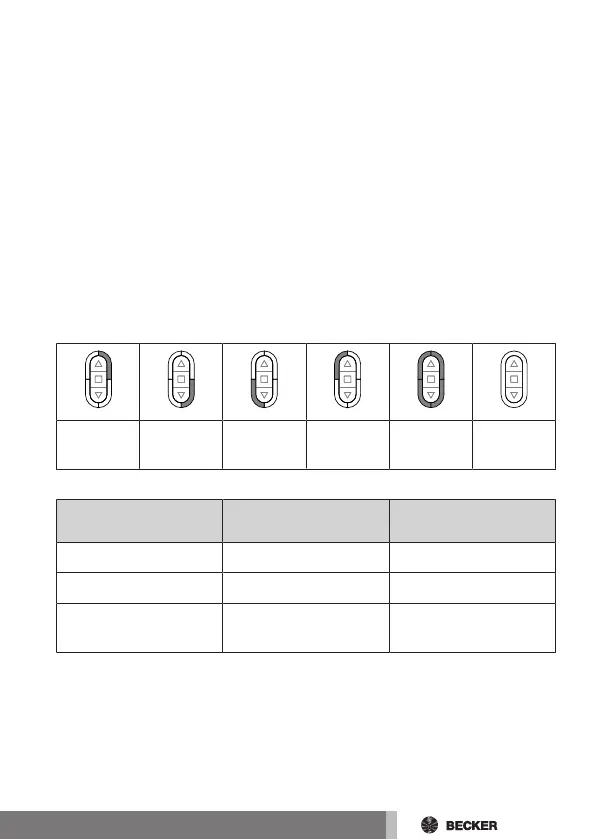

Channel 1 Channel 2 Channel 3 Channel 4 Group Central
command
8-channel hand-held transmitter
Channel Group Colour
LED ring
Channel 1 - 4 Group 1 green
Channel 5 - 8 Group 2 red
Channel 1 - 8 Group all
(central command)
White
29-en
