Installation Guide
202
Installing the speed sensor directly on the gearbox
• Release the speedometer cable and screw speed sensor onto gear-
box. Screw released speedometer cable onto the speed sensor and
connect the wires.
Cable connections for the speed sensor
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
Installing the speed sensor in the speedometer cable
In this case, please contact your dealer or a VDO branch.

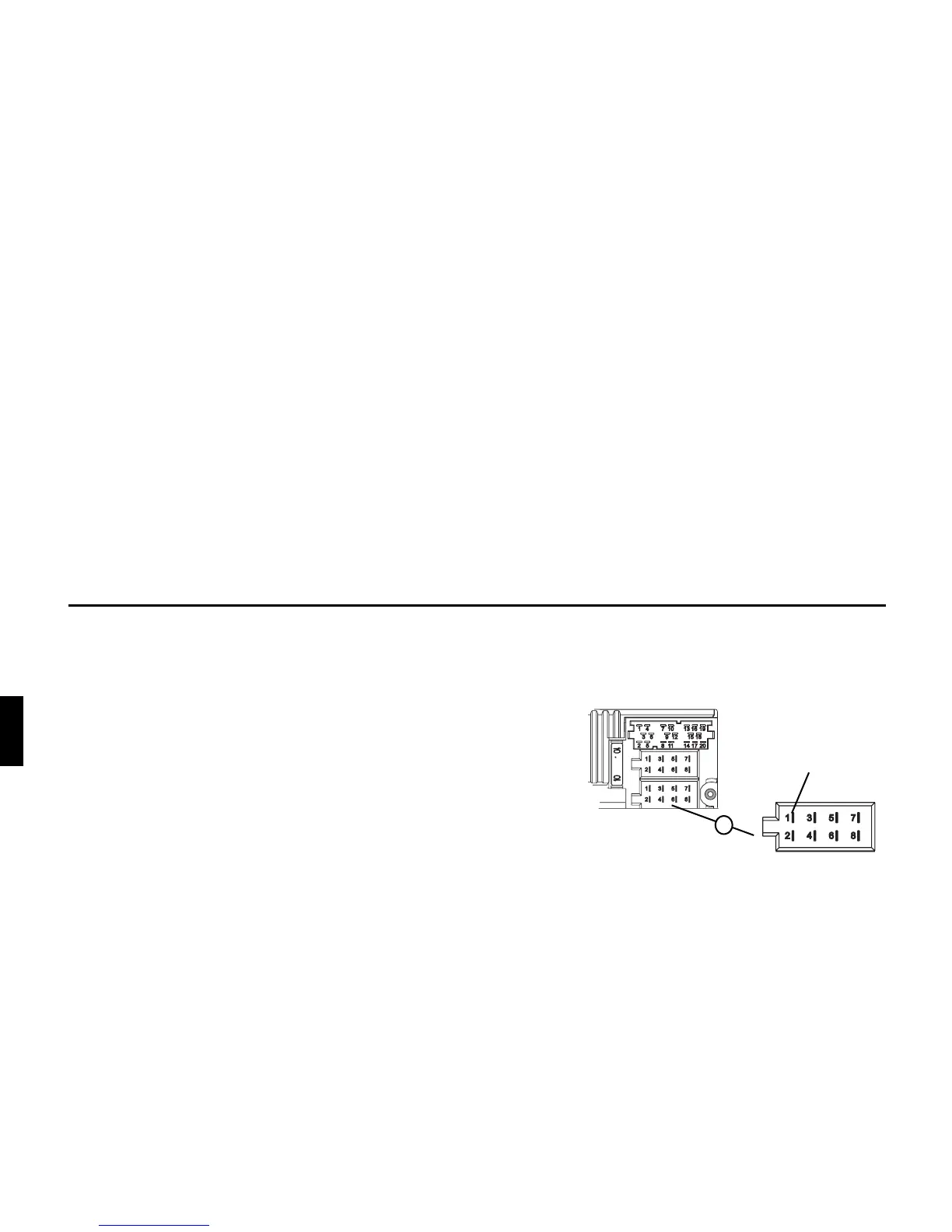

GAL signal
A
