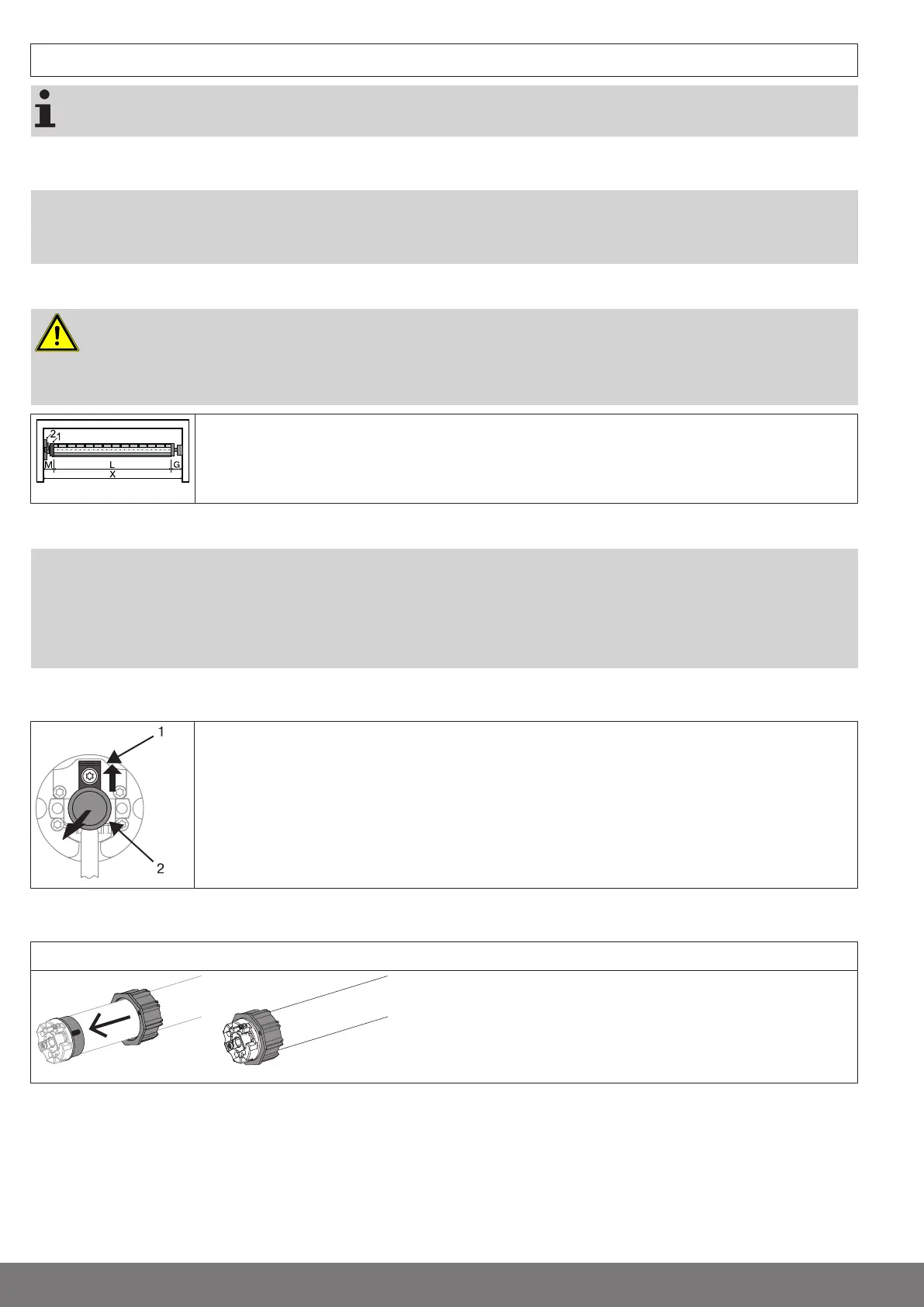

Assembly for standard roller shutter application
For the assembly of applications that represent a second escape route, refer to the
chapter Assembly for applications that represent a second escape route [}7].
Assembling the drive
Attention
To connect the drive to the driven part, solely mechanical accessory components made by
the drive manufacturer from the current product catalogue may be used.
Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus
weight of the shading solution).
Caution
Electrical connections may only be carried out by a qualified electrician. Prior to assembly,
the power supply must be disconnected and secured. Please give the enclosed connection
information to the responsible electrical contractor.
Calculate the space required at the side (M) by measuring the drive head (1) and wall bracket (2). The
clear dimension of the box (X) minus the space required at the side (M) and idler (G) gives the length
(L) of the barrel: L=X-M-G.
The space required at the side (M) varies depending on the combination of drive and wall bracket.
Then mount the wall bracket and idler. Ensure that the barrel is aligned at right angles to the wall and that sufficient axial play is al-
lowed for the mounted system.
Attention
When using rigid shaft connectors, closed brackets must be fitted. The tubular drive
presses the closed curtain down to make it difficult for people to reach under it or raise it.
Only use curtains made of sufficiently strong material, such as aluminium, steel or wood.
To prevent damage to the curtain it must run in guide tracks from top to bottom.
Assembling and disassembling the mounting pin
Ø45
When pushed in, the mounting pin (2) locks automatically. To undo the mounting pin (2), push the tab
washer (1) upwards and pull out the mounting pin (2).
Assembling and disassembling the drive adapter
Fitting the ring onto the thrust ring
