Becker R30-17 - Drive Adapter Disassembly; Mounting Drive in Tube

STOP
Klick-Klick-Klick
Position of holder
for connecting rod

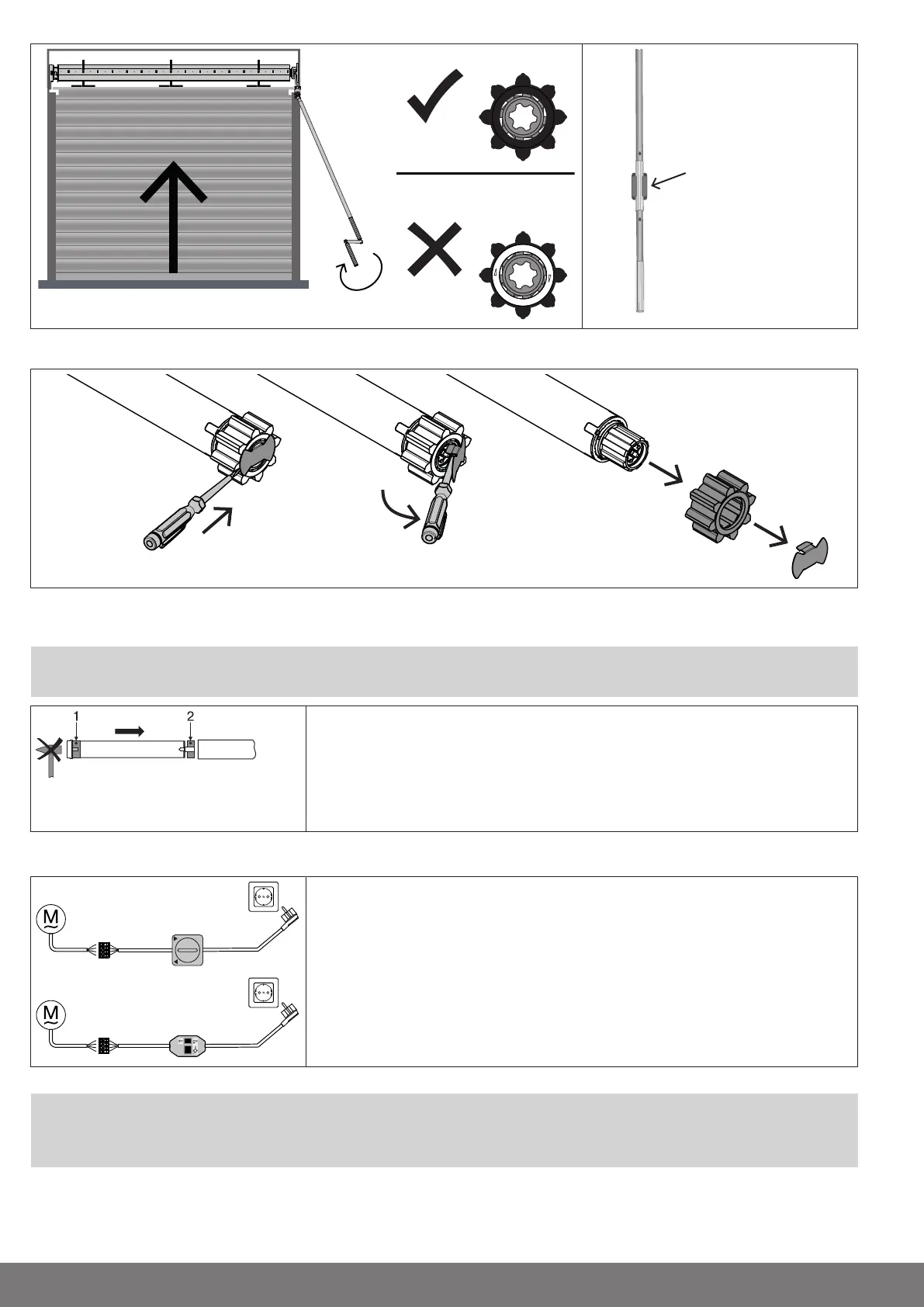

Disassembling the drive adapter
1. 2. 3.
Mounting the drive in the tube
We also recommend screwing the idler to the barrel.
Attention
Do not hammer the tubular drive into the tube or drop it into the barrel!
Assemble the tubular drive with the relevant ring (1) and drive adapter (2). If the ring
has several grooves, select the groove which is a perfect fit and push the ring (1) onto
the thrust ring.
Insert the tubular drive with the pre-assembled ring (1) and drive adapter (2) into the
tube to achieve a form fit. Ensure that the ring and drive adapter are secure in the
tube.
Mount the assembled unit comprising barrel, tubular drive and idler on the box and secure the drive with a split or spring pin ac-
cording to the type of wall bracket fixing.
Automatic setting of limit positions is possible, where a stop system is present on
both sides, using the rotary switch set (Item no. 49010011580), a standard rotary
switch or the programming unit for drives with electronic limit switching (Item no.
49352000110). All other functions can only be set via the programming unit.
Connect the wires of the tubular drive to those of the same colour in the program-
ming/operator control and switch on the power supply.
Position the barrel so that the roller shutter curtain can be attached with springs.
Attention
The switch and the programming unit are only meant for the commissioning, not for con-
tinuous operation!
8-en
