Beckhoff BC9100 User Manual

Fitting and wiring
BC9000 and BC9100 13Version: 4.0.0
3 Fitting and wiring
3.1 Mechanical installation
3.1.1 Dimensions
The system of the Beckhoff Bus Terminals is characterized by low physical volume and high modularity.
When planning a project it must be assumed that at least one Bus Coupler and a number of Bus Terminals
will be used. The mechanical dimensions of the Bus Couplers are independent of the fieldbus system.

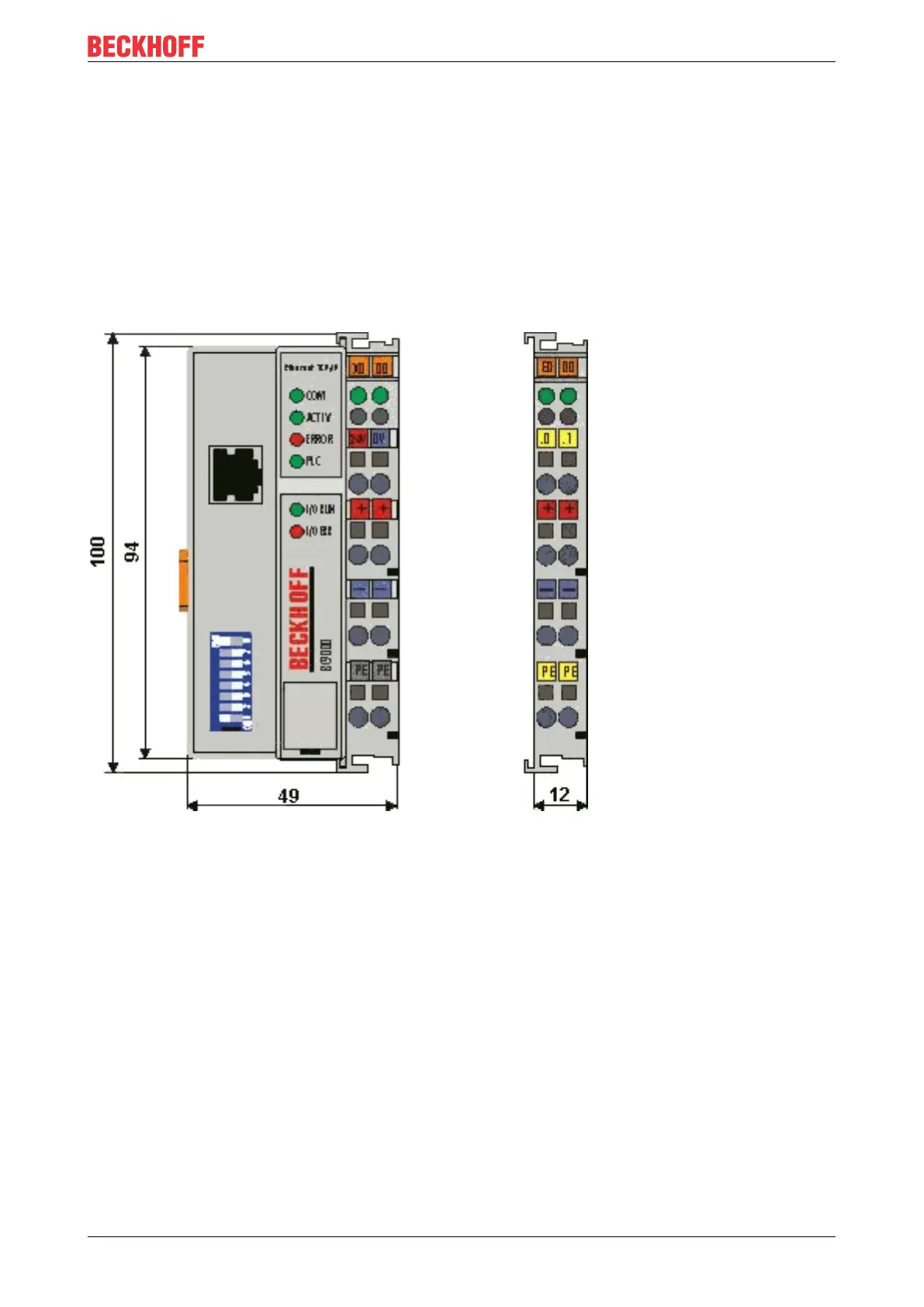

Fig.3: Dimensions
The total width in practical cases is composed of the width of the Bus Coupler, the KL9010 Bus End
Terminal and the width of the bus terminals in use. Depending on function, the Bus Terminals are 12mm or
24mm wide. The front wiring increases the total height of 68mm by about 5mm to 10mm, depending on
the wire thickness.
