Parameterization and commissioning
BK11x0, BK125052 Version: 4.1

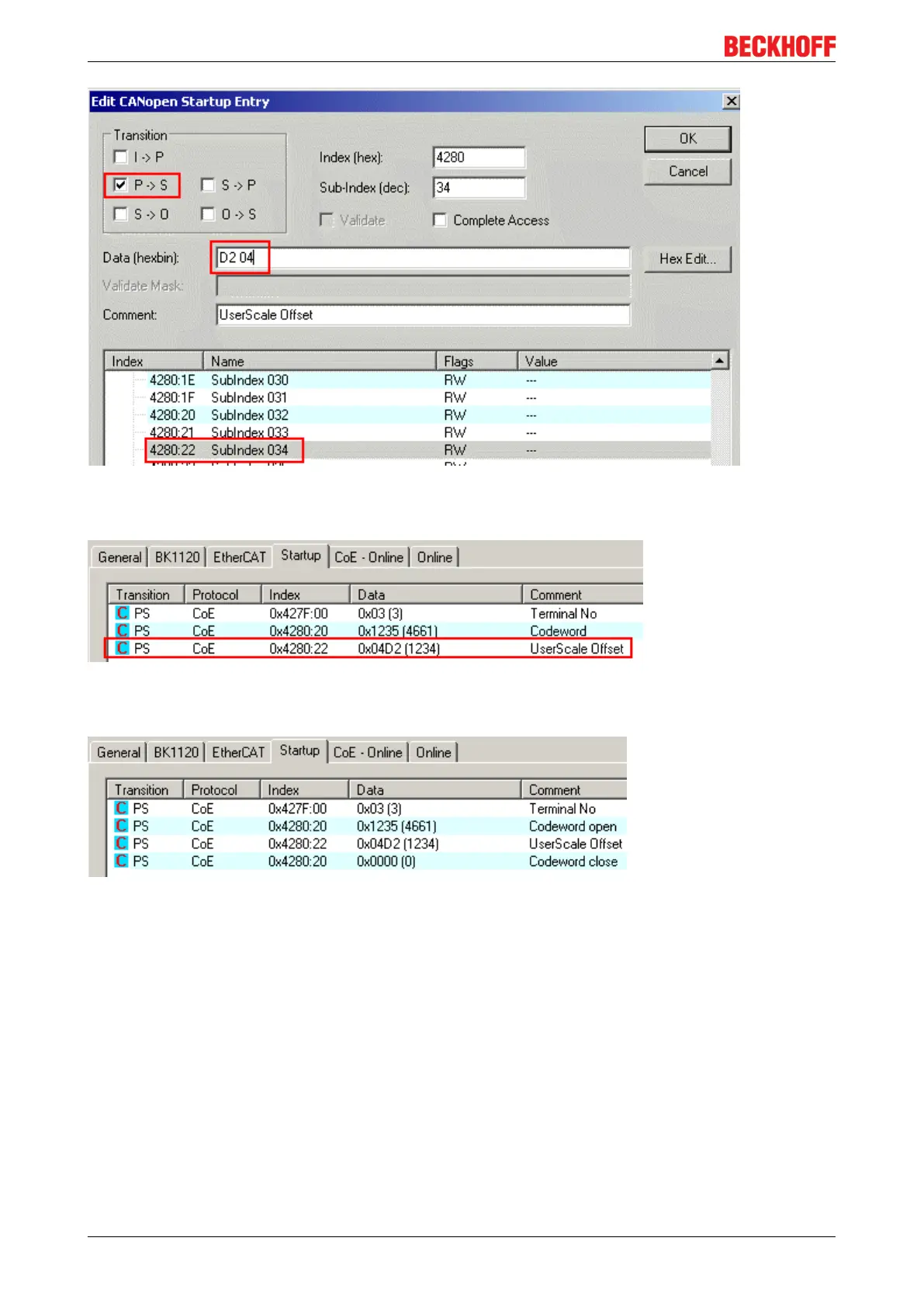

Fig.37: Data entry
The complete entry is shown in Fig. Entry.
Fig.38: Entry
Since the code word was used, it must also be reset in order to complete the terminal access.
Fig.39: Complete terminal access
More extensive register access is possible, if required, see Fig. Access to two KL terminals. In this case, two
KL2541s with the numbers 3 and 4 will be parameterized in the startup phase.
