BK5200 BK52x0 DeviceNet 20
BK5200

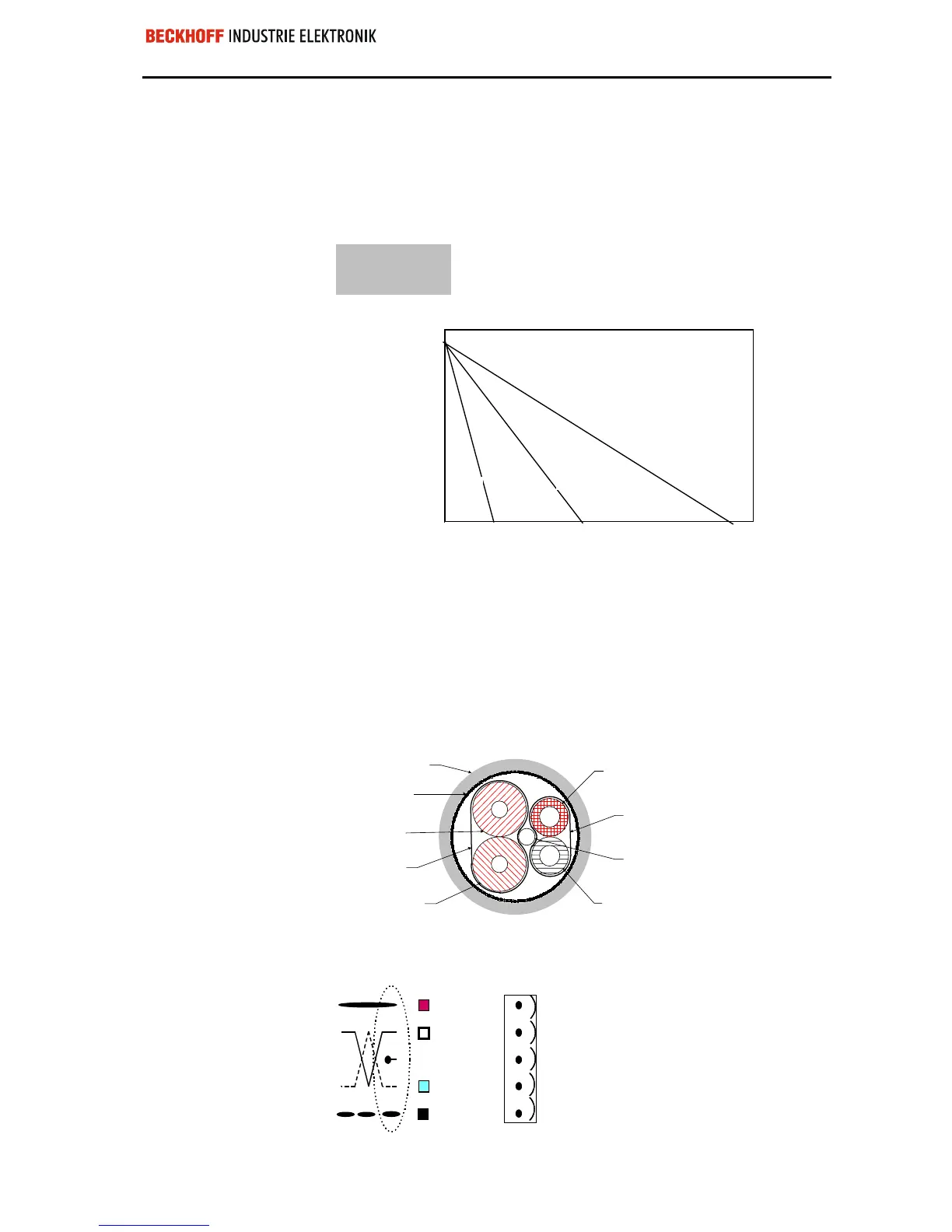

Maximum cable length
The maximum length of cable which can be used depends on the selected
Baud rate. The following lengths should be understood as the total length
of the main line plus any branch lines.
125kBaud 500m
250kBaud 250m
500kBaud 100m
Length of
Thin Cable
Used
(meters)
100
80
60
40
20
0
0 50 100 150 200 250 300 350 400 450 500
125k baud
250k baud
500k
baud
Length of Thick Cable Used (meters)
L
thick
+ 5 x L
thin
= 500 at 125Kbaud
L
thick
+ 2.5 x L
thin
= 250 at 250Kbaud
L
thick
+ L
thin
= 100 at 500Kbaud
where L
thick
is the length of thick cable and Lthin
is the length of thin cable.
Jacket
Data Insulation
Color: Blue
Braid Shield
AL/MY
Shi el d
Data Insulation
Color: White
DC Power Insulation
Color: Red
AL/MY
Shi el d
DC Power Insulation
Color: Black
Drain Wire
The cable consists of two shielded wire pairs. One pair carries out the
transmission. The second pair distributes the supply power.
V+
CAN_H
SHIELD
CAN_L
V-
Red P.M.S. #207C
White EIA 395A within wire/cable limit
s
Blue P.M.S. #297C
Black P.M.S. #426C
Connector wiring information
