Configuring the bus coupler

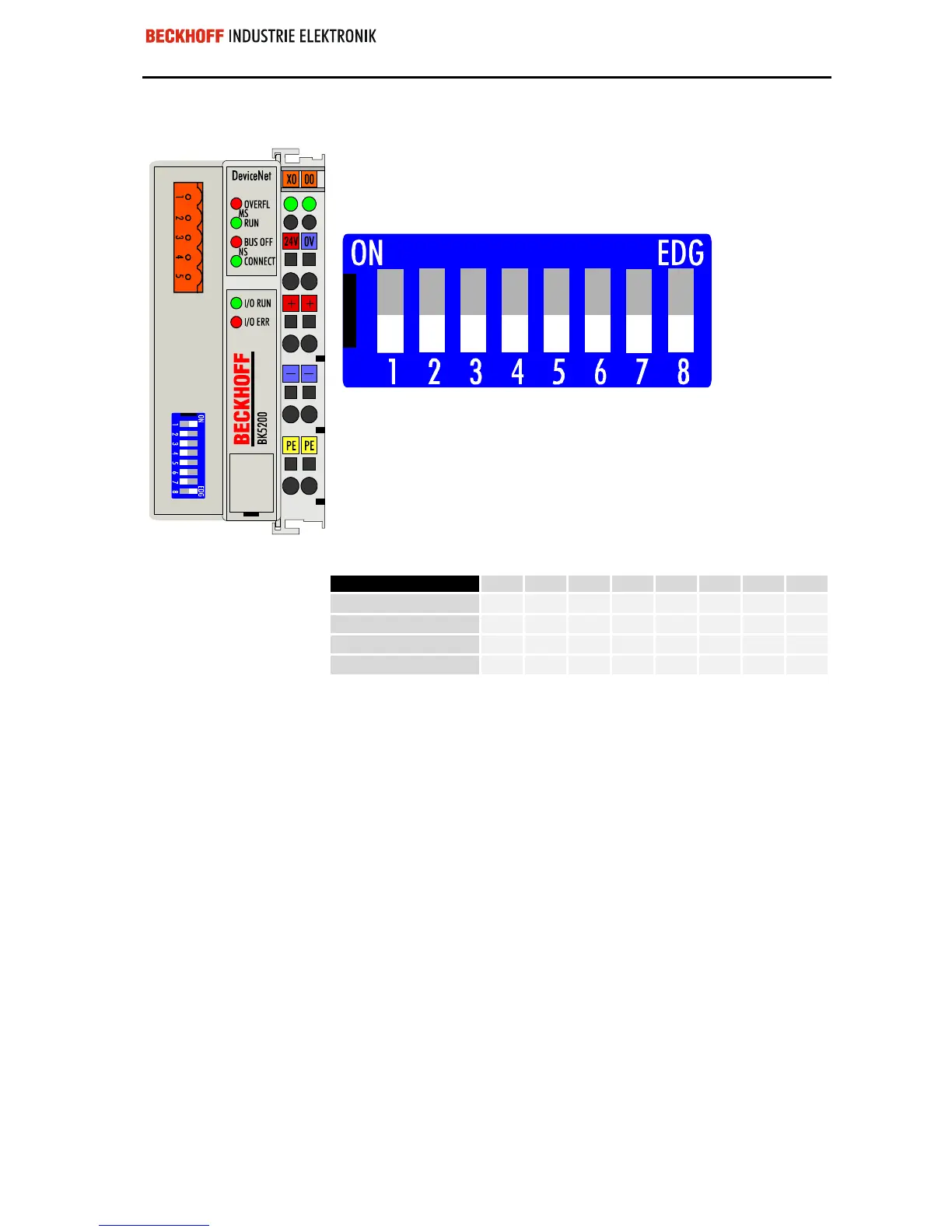

Setting the DIP switches
Set all the DIP switches to the desired configuration before you switch on
the bus coupler. Switches 7 and 8 are used to set the Baud rate, as shown
in the following table.
Setting the Baud rate
Setting Baud rates 1 2 3 4 5 6 7 8
125 kBd
off off
250 kBd
on off
500 kBd
off on
(Default) 125 kBd
on on
Setting the MAC ID
DIP switches 1 to 6 are used to set the MAC ID, where switch 1 is the lo-
west value bit, 20, and switch 6 the highest value bit, 25. In the setting
labeled ON, the bit is set.
You can select the MAC ID from the range 0 to 63.
Switch on the bus coupler
When you have set all the DIP switches to the desired configuration you
can switch on the bus coupler. Any changes you make to the switches
while the system is in operation will have no effect until the next time it is
switched on.
