Beckhoff C6030-0060 - Interfaces; Power Supply (X101); Network Connection LAN1, LAN2, LAN3, LAN4 (X102 - X105); USB3.0 Interfaces (X106 - X109)

Product Description

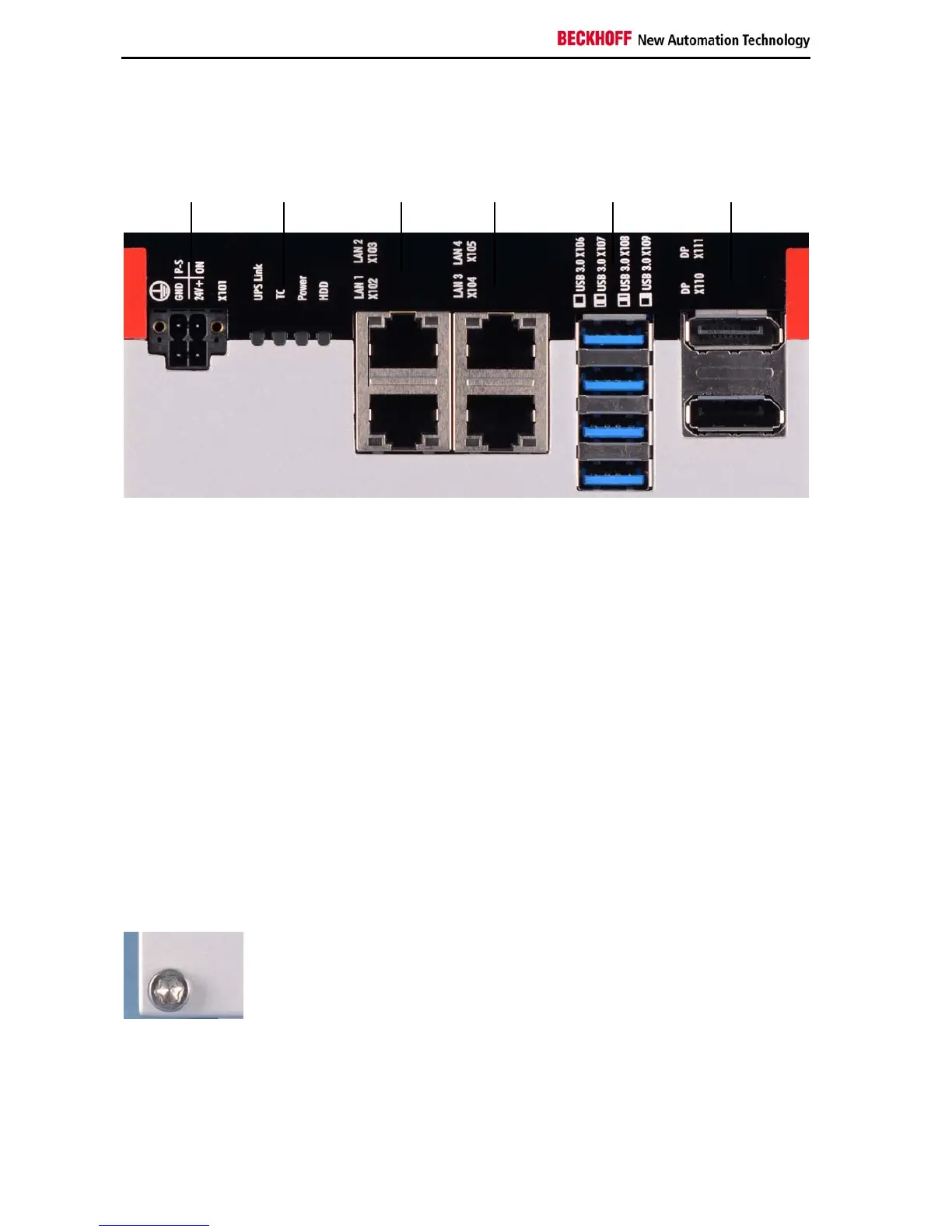

2.4 Interfaces
X102, X103
LAN1, LAN2
X104, X105
LAN3, LAN4
X110, X111
DP out
X101
Power
Status-
LEDs
X106 – X109
USB3.0
2.4.1 Power Supply (X101)
The power supply for the Industrial PC is established via the socket (X101) (see also chapter Pin
assignment of the connector).
The power supply connector is included in delivery.
2.4.2 Network connection LAN1, LAN2, LAN3, LAN4 (X102 - X105)
The RJ-45 connectors (X102 - X105) allow the PC to be connected to a 100/1000 BASE-T Local Area
Network (LAN).
2.4.3 USB3.0 interfaces (X106 – X109)
The USB interfaces (X106 – X109) are used for connecting peripheral devices with USB connection.
USB3.0 standard is supported.
2.4.4 DisplayPort (X110, X111)
The DisplayPorts (X110, X111) are used for transferring the video signal.
2.4.5 Protective Earthing (PE)
protective
earthing (PE)
The low-resistance protective earthing of the Industrial PC is established via the screw connection (PE).
10 C6030-0060
