Assembly dimensions
6 Assembly dimensions

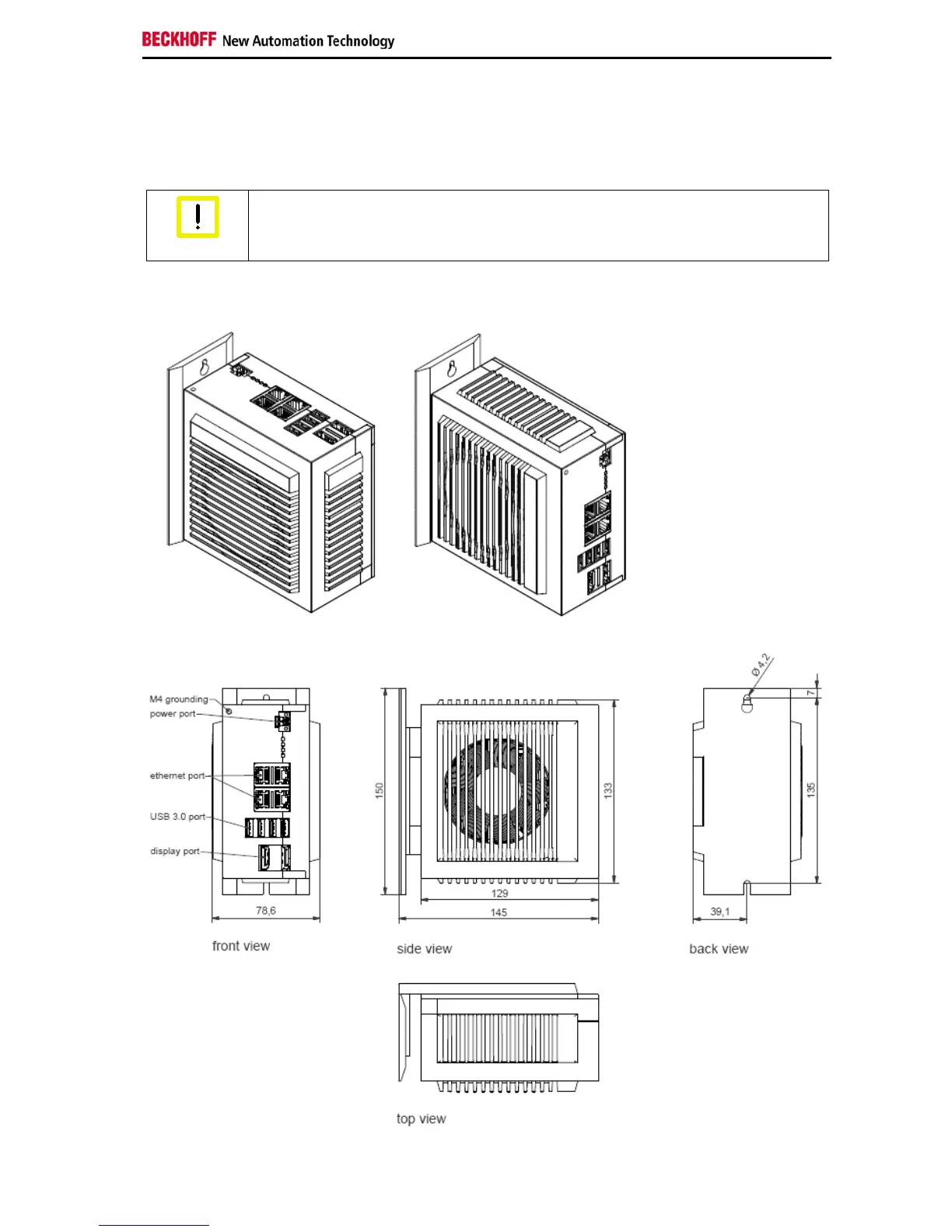

Industrial PC C6030-0060, with mounting sheet for rear wall installation
Notice mounting orientation
Attention
The assembly of the unit must take place with the orientation diagrammed here.
All dimensions in mm.
C6030-0060 23
