Product Description
2 Product Description
2.1 Product overview

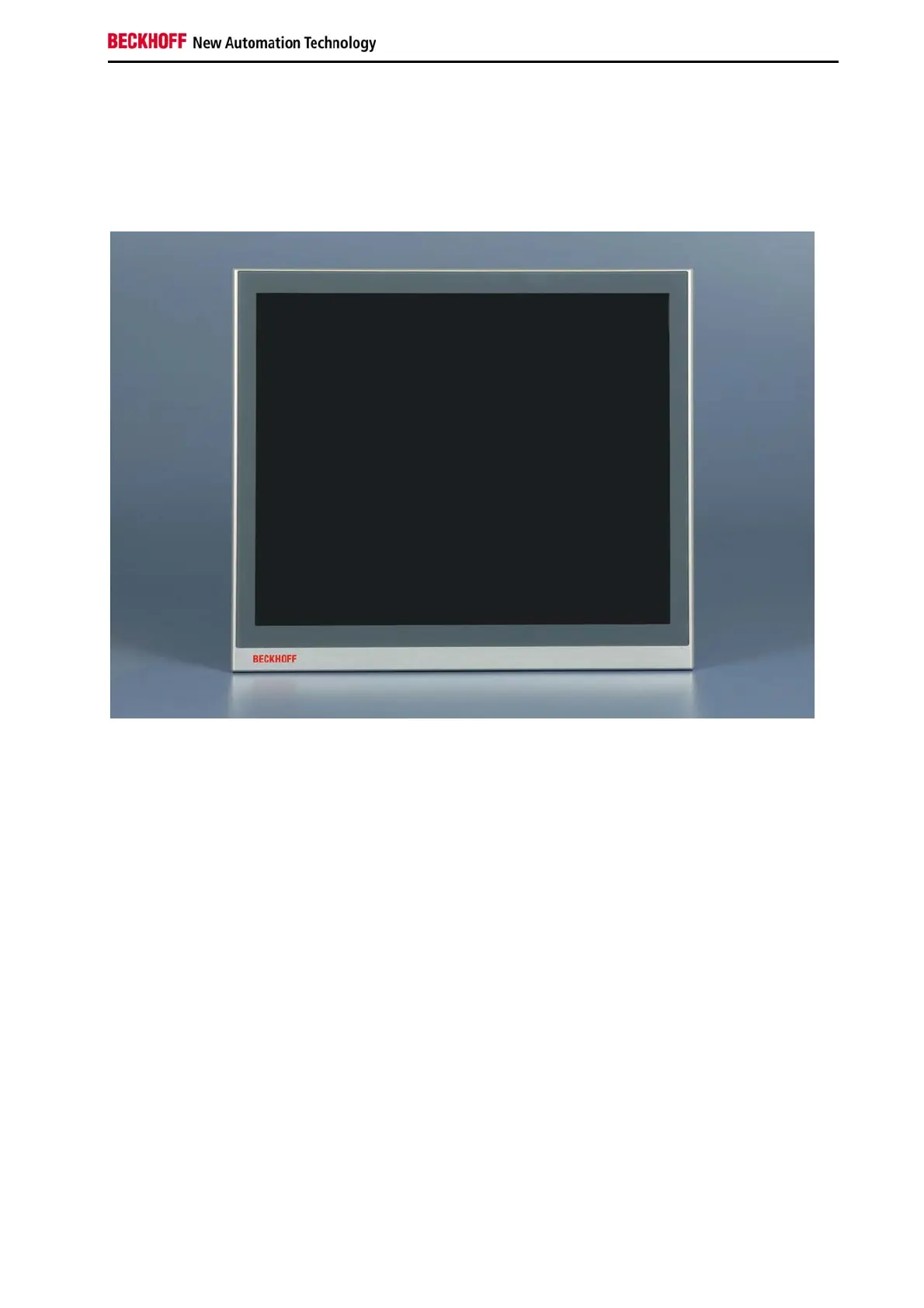

Front view of CP29xx
The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden
solution for any application. The wide selection of models offers different display sizes and formats as
well as custom designs. Even for single-touch users, this new panel generation offers an excellent price-
to-performance ratio and represents an economical alternative to other systems.
The multi-touch built-in Control Panel offer the following benefits:
• display sizes from 7-inch to 24-inch (16:9, 5:4, 4:3), landscape and portrait orientation
• multi-touch (PCT): e.g. for 5-finger or 2-hand touch operation
• high touch-point density for safe operation
• aluminium housing with glass front, front side IP65, rear side IP20
• integrated DVI/USB extension technology:
– DVI-E and USB-E 2.0 enable remote panel operation at a distance of up to 50 m from the PC
– USB-E 2.0 transmits USB 2.0 with 480 Mbit/s
– DVI-E input is compatible to the standard DVI output of a PC
• USB 3.0 input for the direct connection to a standard USB output of a PC with distances of up to
3 m
• 2-port USB 3.0 socket inside the Control Panel backplane, for USB-E 2.0 limited to USB 2.0
• optional electromechanical push-button extension.
CP29xx 7
