Assembly dimensions
7 Assembly dimensions

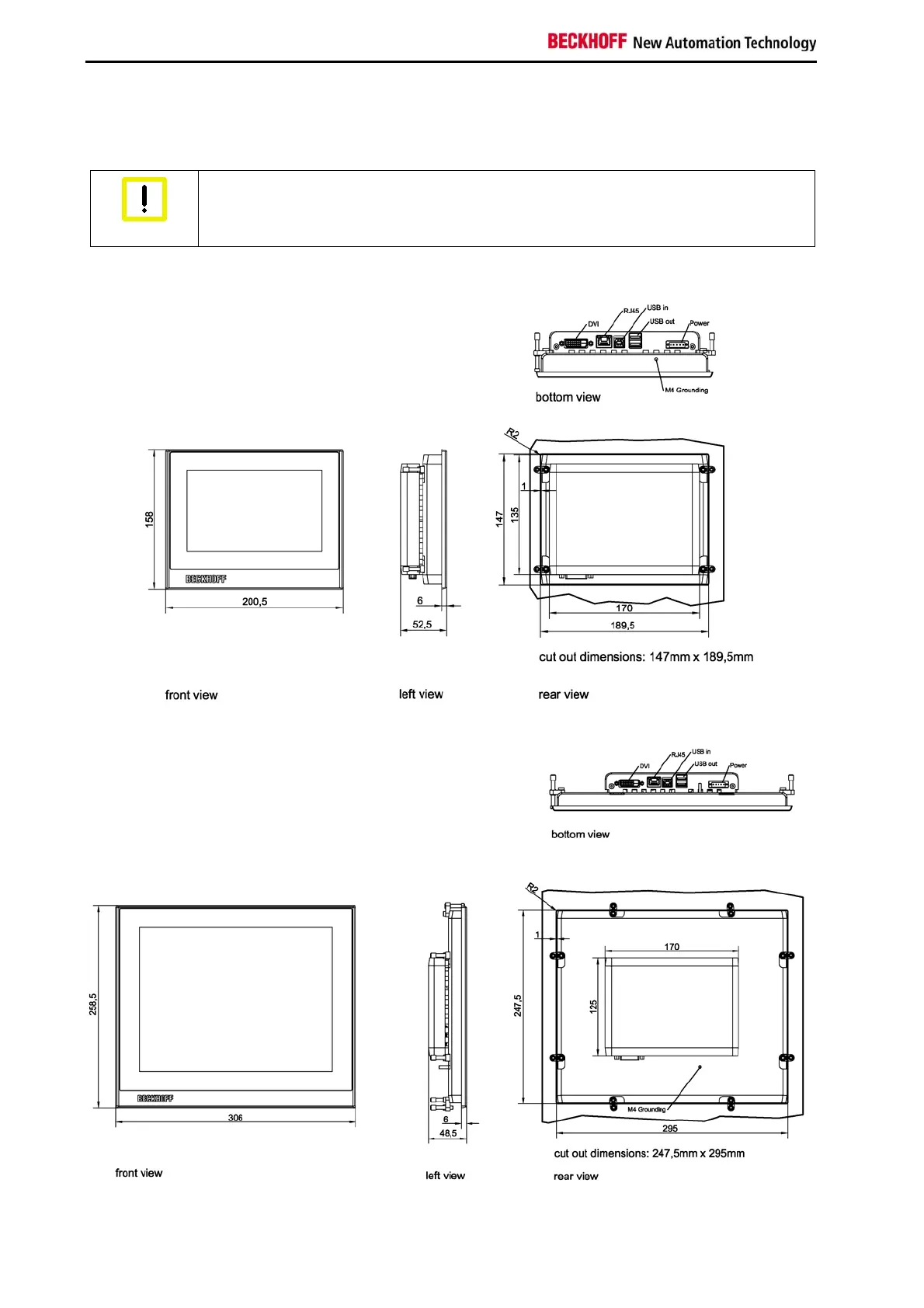

CP2907 with 7“ display, landscape (all dimensions are in mm)
Notice mounting orientation
Warning
The assembly of the unit must take place with the orientation diagrammed here.
CP2912 with 12“ display, landscape (all dimensions are in mm)
