Product Description

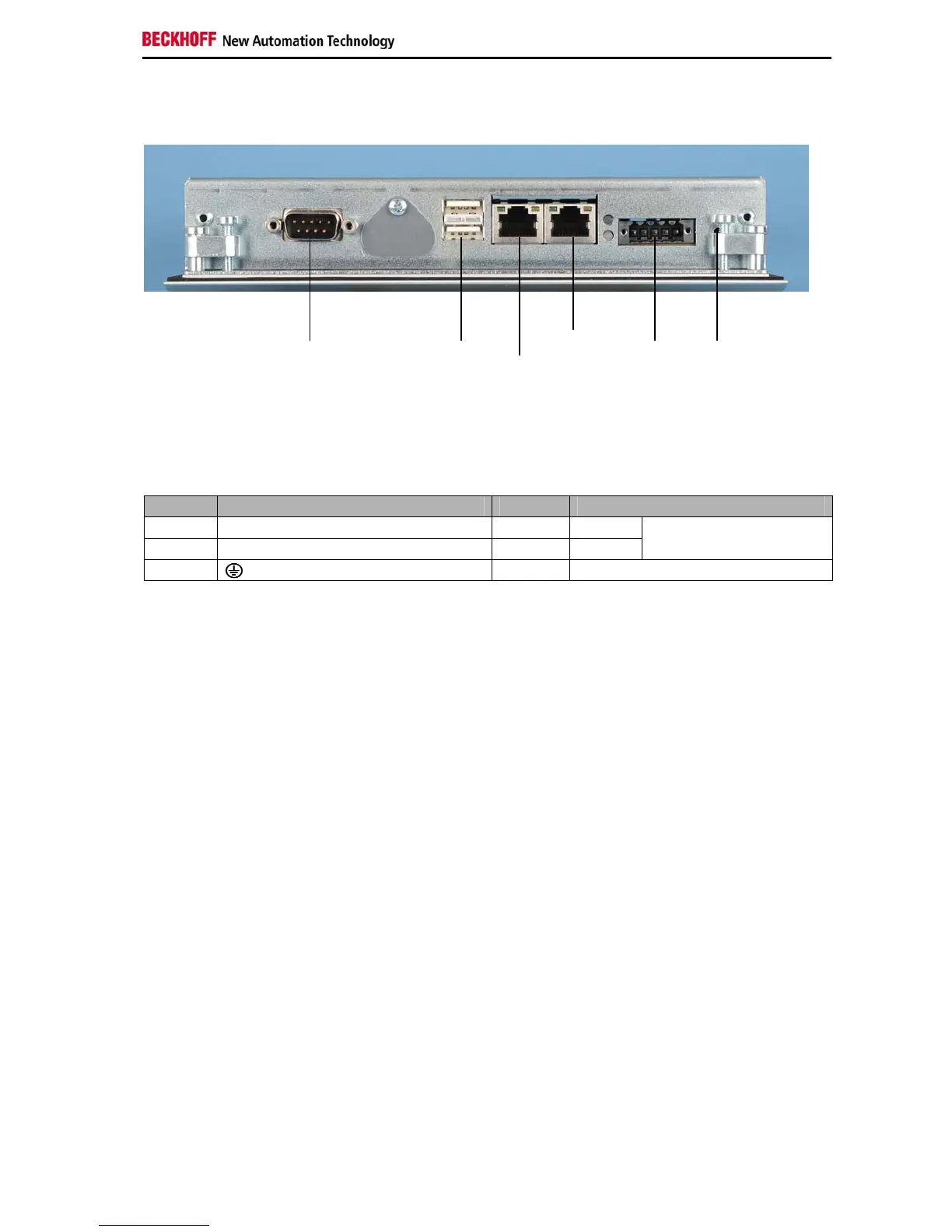

2.4 Interfaces
X102
LAN1
X103
EtherCAT
X104, X105
USB
M4 GroundX101
Power
X107
COM1
2.4.1 Power Supply (X101)
The power supply for the Panel PC is established via the socket (X101). The power supply connector is
included in delivery.
Pin Signal Pin Signal
1 NC 4 GND
2 NC 5
+ 24 V
DC
Power Supply
3
2.4.2 Network connection LAN1 (X 102)
The RJ-45 connector (X102) allows the PC to be connected to a 10/100BASE-T Local Area Network
(LAN).
2.4.3 EtherCAT connection (X 103)
The RJ-45 connector (X103) allows the PC to be connected to an EtherCAT Network.
2.4.4 USB output (X 104, X 105)
The two USB interfaces (X104, X105, connector type A) are used for connecting peripheral devices with
USB connection. USB2.0 standard is supported.
2.4.5 Serial interface COM1 (X107)
The Panel PC has one serial interface COM1 (X107) using the type RS232, which is brought to a 9 pin
SUB-D plug connector.
2.4.6 Ground connection (Ground)
The Panel PC is grounded via the M4-screw connection (Ground).
CP6606-0001-0020 9
