Beckhoff CP6606-0001-0020 User Manual

Product Description

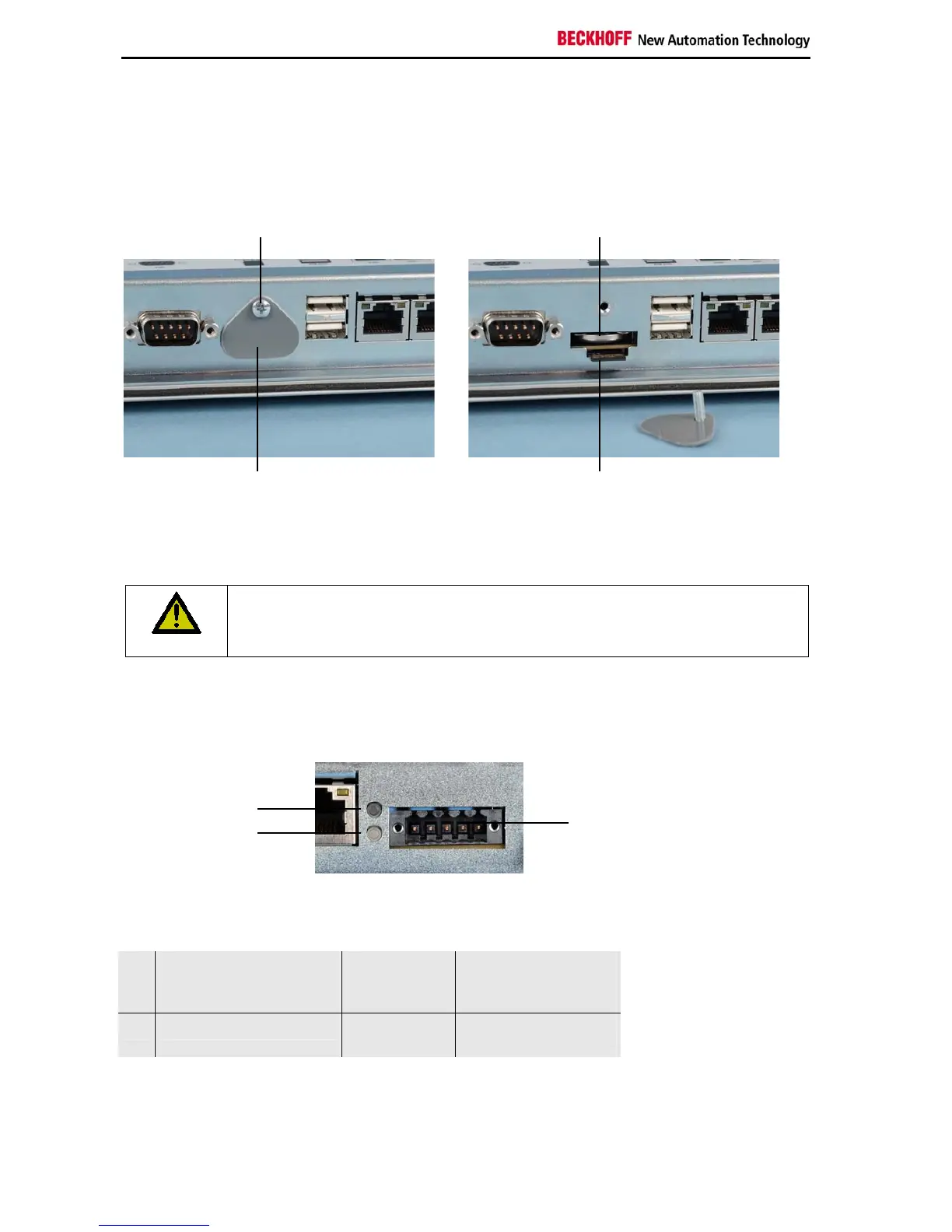

2.5 Access to the battery and the plug-in card slot
The battery and the plug-in card slot are located behind the cover plate beside the connectors of the
Panel PC:
screw (1)
battery
MicroSD card
cover plate (2)
For replacing the battery and installation of the MicroSD card first unloose the cross-head screw (1). The
cover plate (2) can now be removed.
Danger of Explosion!
WARNING
Replace battery only with the identical type or an alternative type recommended by the
manufacturer. Notice correct polarity!
2.6 Status-LEDs
The Status-LEDs are located near the power supply connector (X101):
LED T
C
(
1
)
X101
LED PWR
(
2
)
Description of the Status-LEDs
1 TC (TwinCAT): red
green
blue
Stop Mode
Run Mode
Configuration Mode
2 PWR (Power): green
green blinking
Busy
Standby
10 CP6606-0001-0020
