Product Description
2 Product Description
2.1 Product overview

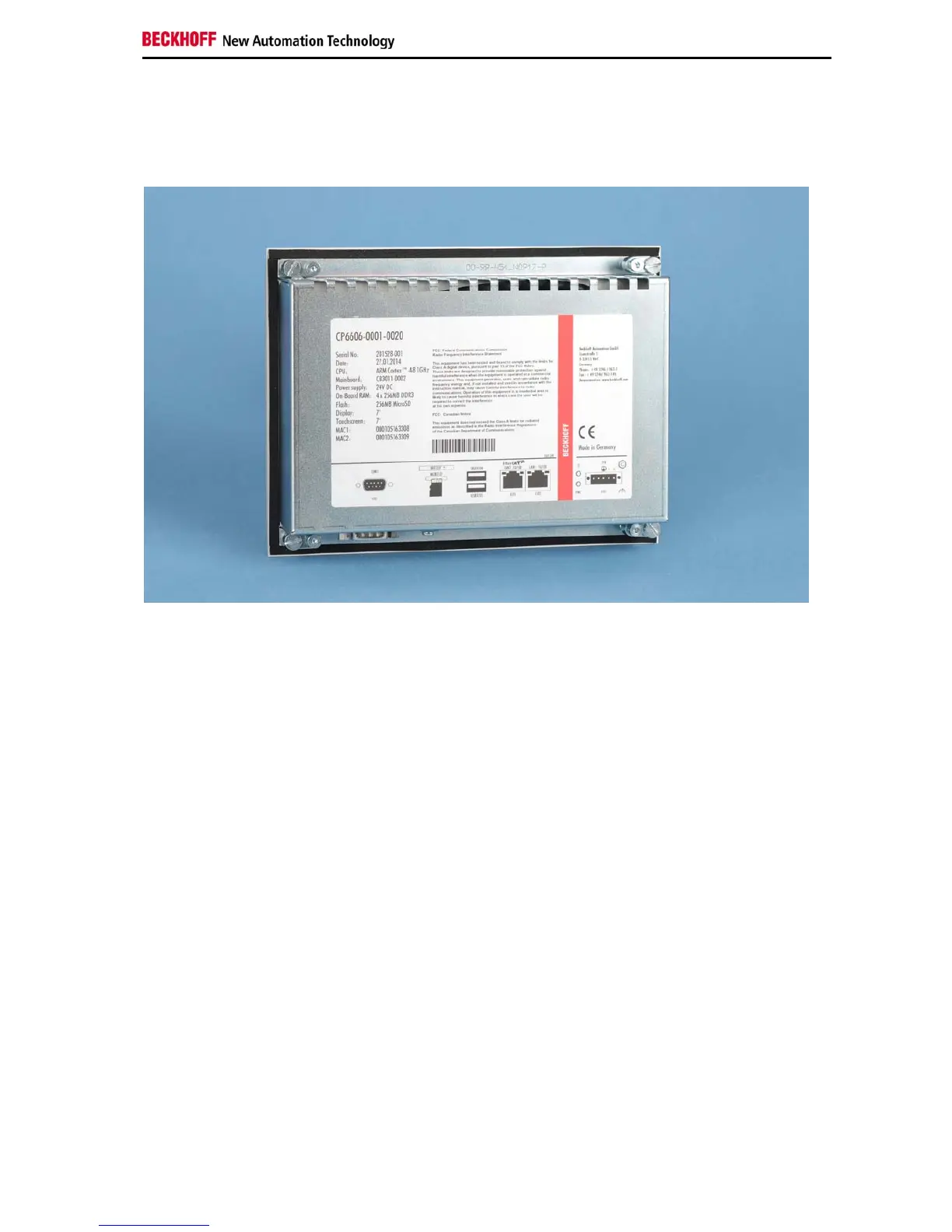

The compact built-in Panel PC
The built-in Panel PC CP6606-0001-0020 with Ethernet port can be used as an independent Panel PC,
remote desktop display or server terminal. The powerful 1 GHz ARM Cortex™ A8 CPU is suitable for
versatile use in PLC and Motion Control applications in small and medium-sized machines, plants or
buildings.
The Panel PC offers the following benefits:
7-inch TFT display, 800 x 480 WVGA
touch screen
aluminium front with sheet-steel rear cover
protection class front side IP54, rear side IP20
operating temperature 0…55 °C (0°C to +45°C with wall mounting frame)
all connectors at the lower rear side
1 slot for MicroSD Flash Card, accessible from the rear side
lithium battery of the system clock, accessible from the rear side
pull-out clamping levers for fast installation without loose parts
low installation depth.
CP6606-0001-0020 7
