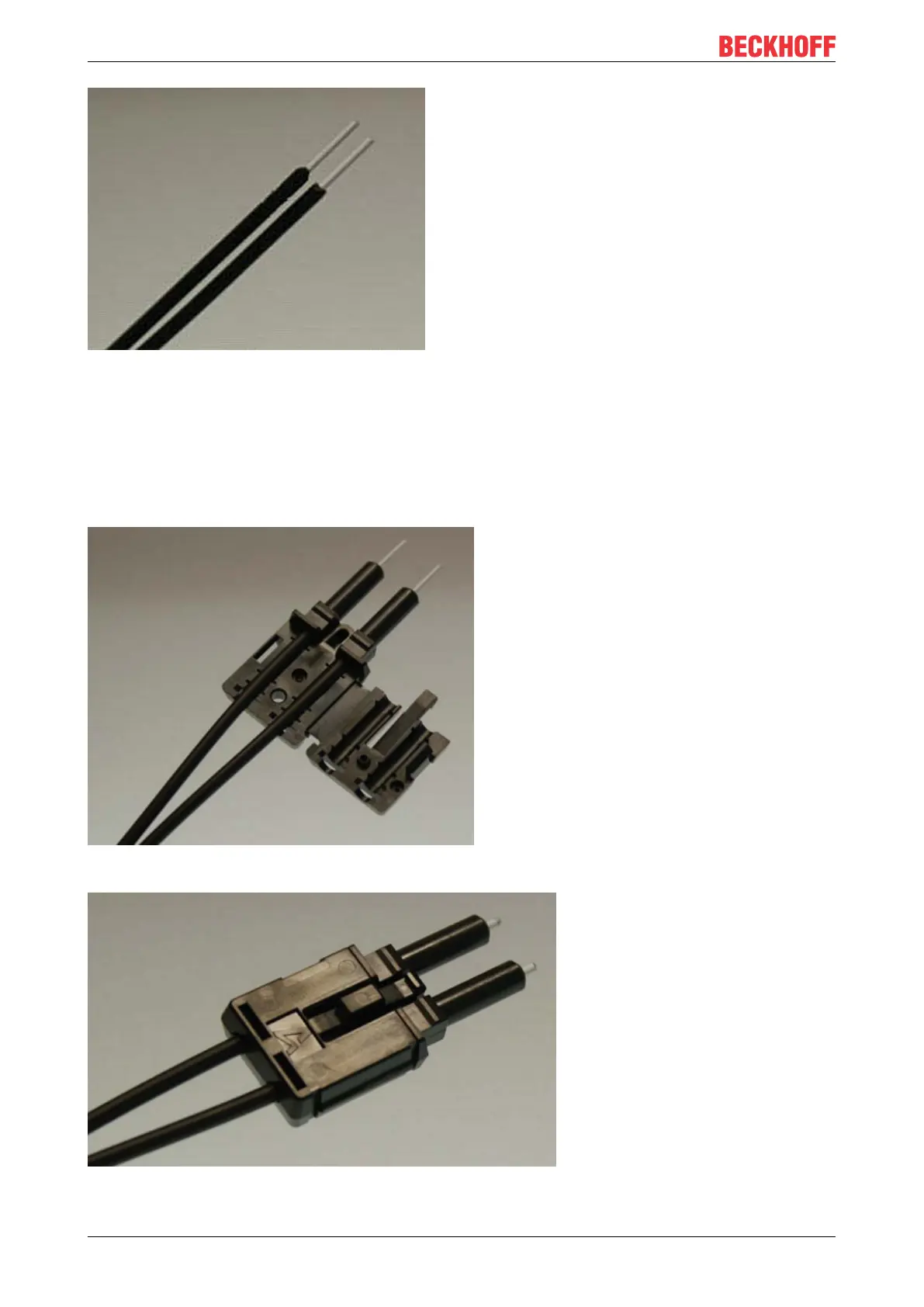

Fig.30: POF cable stripped over the same length
2. Attaching the connector
Push the two cable ends into the connector and the connector back until it stops. The fibers should now
protrude no more than 1.5 mm out of the front openings (Fig. Cable inserted in the connector).
Close the connector by folding the upper and lower halves together until they engage (Fig. Closed
connector).
Fig.31: Cable inserted in the connector
Fig.32: Closed connector
