2.7 Battery compartment

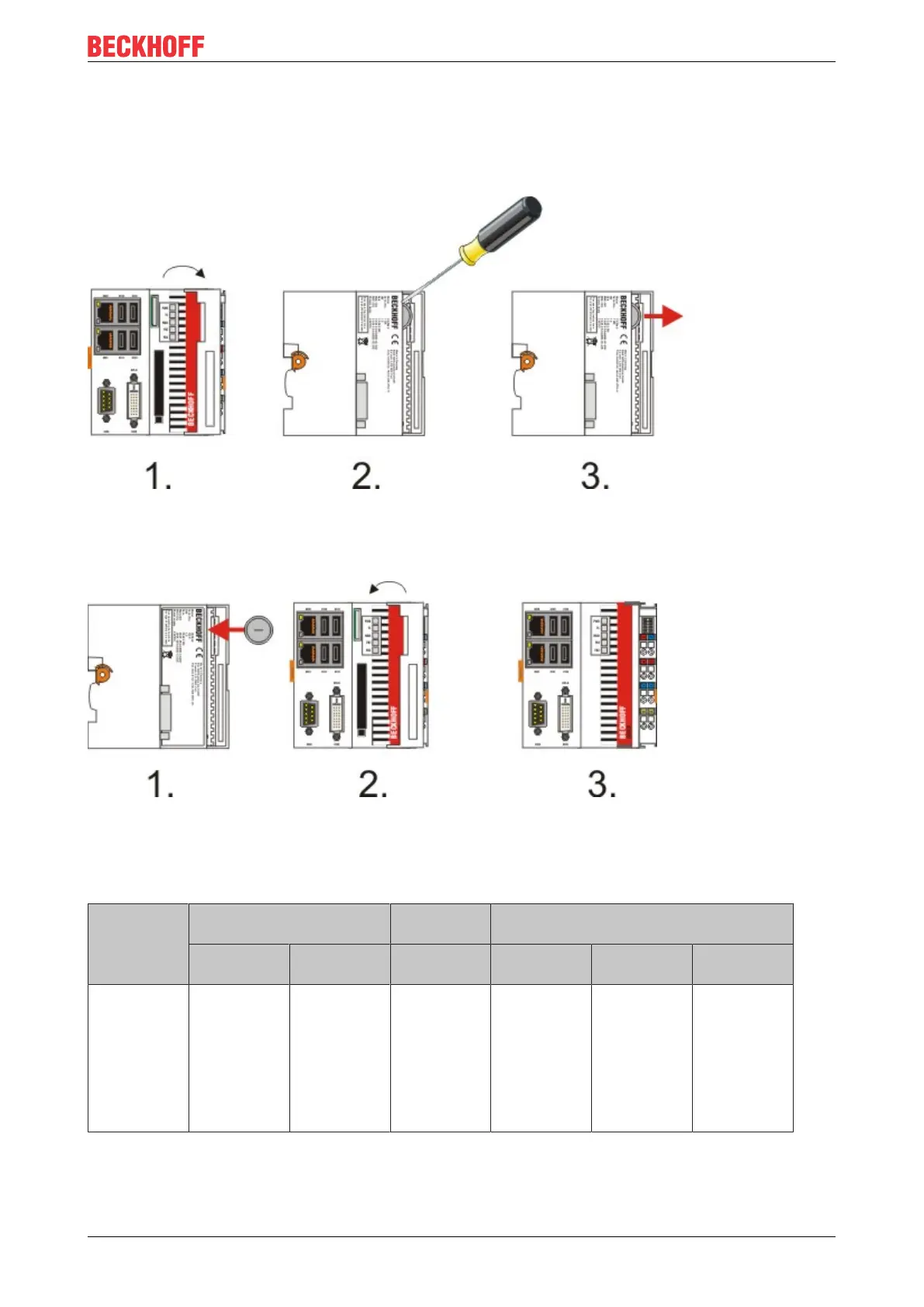

The battery compartment is located under the front cover of the CX50x0. The opening in which the battery
bracket is mounted can be seen when the front cover is opened. Use a screwdriver to carefully lift the battery
out of the bracket.
Fig.1: CX5000_batt_eject
To insert a new battery push it into the battery compartment. Ensure correct polarity. Then close the front
cover. The battery change is then complete.
Fig.2: CX5000_batt_insert
The battery is a CR2032 type from Panasonic.
The correct specifications are:
Battery type Electrical properties (at 20
°C)
Standard
charge
Dimensions
nominal
voltage
nominal ca-
pacity
continuous
load
Diameter Height Weight
https://in-
fosys.beck-
hoff.com/con-
tent/1033/
CX5000_HW/
Resources/
pdf/21305319
5.pdf
3.0 V 225 mAh 0.20 mA 20.0 mm 3.20 mm 3.1 g
